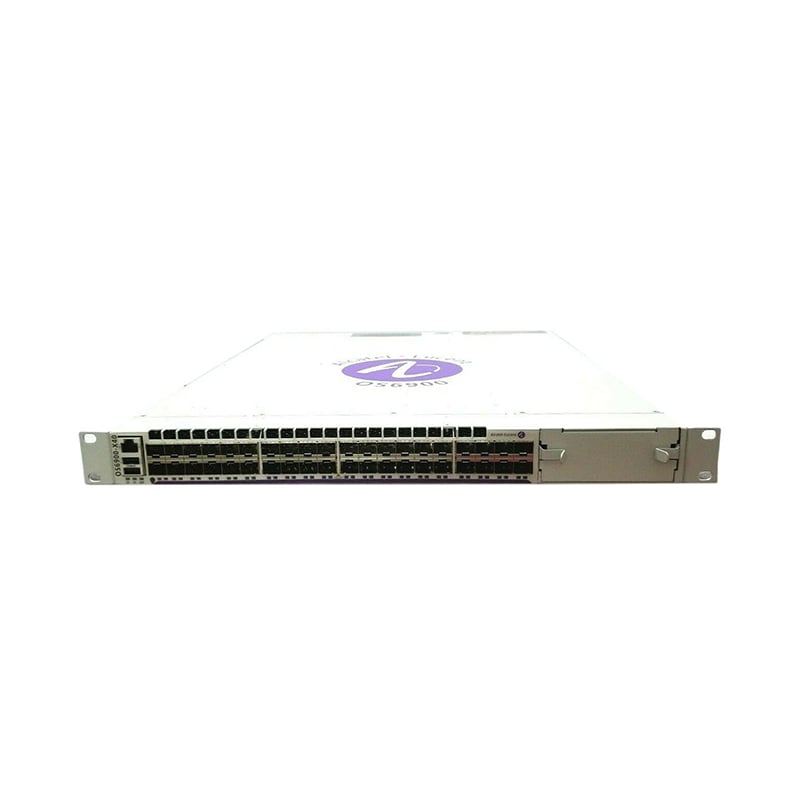

OS6900-X72D-F, Alcatel-Lucent OS6900 Switch, 48x1/10G SFP+, 6x40G QSFP+, Modular DC PSU
Brand: Alcatel-Lucent · SKU: AL:OS6900-X72D-F · MPN: AL:OS6900-X72D-F · Category: Components
OS6900-X72: 10Gigabit/40Gigabit Ethernet L3 fixed configuration chassis in a 1U form factor with 48 1/10G SFP+ ports and 6 40G QSFP+ ports. QSFP+ ports operate as single 40GE port or Quad-10GE. Console and Ethernet management ports are RJ45. Front to Rear cooling. The chassis includes a modular DC power supply. A second power supply slot is supported for redundancy. Redundant power supply shall be ordered separately. The bundle ships with user manuals access card and rack mounts.
Specifications
| MTBF | 206,968 hours |
|---|---|
| Depth | 55.9 cm |
| Model | OS6900-X72D-F |
| Ports | 48 x 1G/10G SFP+ + 6 x 40G QSFP+ (breakout compatible) |
| Width | 43.3 cm |
| Height | 4.4 cm |
| Subtype | 10 Gigabit Ethernet |
| Version | Original |
| Features | Flow control, VPN support, auto-negotiation, BOOTP support, ARP support, load balancing, VLAN support, IGMP snooping, ISL support, Syslog support, port mirroring, DiffServ support, MAC address filtering, IPv6 support, Spanning Tree Protocol (STP) support |
| Interfaces | 48 x 10Gbit LAN SFP+, 1 x USB Type A, 1 x console management, 1 x RJ-45 management |
| Throughput | 1.4 Gpps |
| Device Type | Switch - 48 ports - L3 - Managed - Stackable |
| Flash Memory | 4 GB |
| Power Device | Internal power supply - hot-plug |
| Installed RAM | 8 GB |
| Enclosure Type | Front to back airflow desktop, rack-mountable 1U |
| Installed Size | 1 |
| Power Redundancy | Optional |
| Routing Protocol | IS-IS, RIP-1, RIP-2, IGMPv2, IGMP, VRRP, IGMPv3, GRE, PIM-SSM, Bidirectional PIM, static IPv4 routing, MLDv2, MLD, Bidirectional Forwarding Detection (BFD), CIDR |
| Voltage Required | DC -48 V |
| Max Supported Qty | 2 |
| Rack Mounting Kit | Included |
| Status Indicators | Power, system, RPS, link/activity |
| Switching Capacity | 1.44 Tbps |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this OS6900-X72D-F, Alcatel-Lucent OS6900 Switch, 48x1/10G SFP+, 6x40G QSFP+, Modular DC PSU (AL:OS6900-X72D-F) is 100% genuine Alcatel-Lucent hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This OS6900-X72D-F, Alcatel-Lucent OS6900 Switch, 48x1/10G SFP+, 6x40G QSFP+, Modular DC PSU includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the OS6900-X72D-F, Alcatel-Lucent OS6900 Switch, 48x1/10G SFP+, 6x40G QSFP+, Modular DC PSU compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AL:OS6900-X72D-F.
