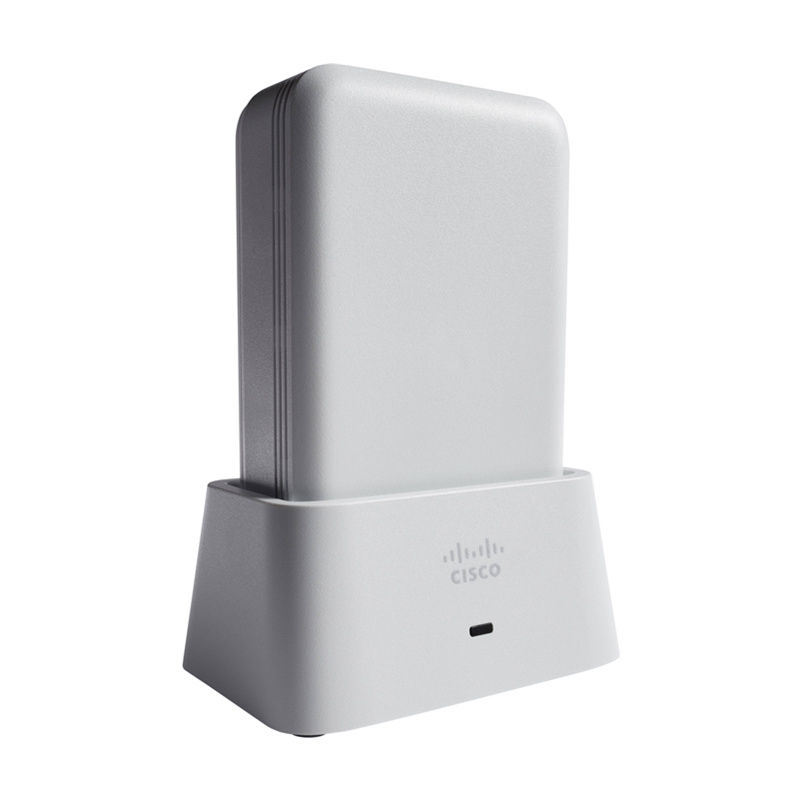

AIR-OEAP1810-I-K9, Cisco AIR-OEAP1810 Series Access Point, 802.11ac Wave 2/OfficeExtend/Int. Antenna
Brand: Cisco · SKU: AIR-OEAP1810-I-K9 · MPN: AIR-OEAP1810-I-K9 · Category: Networking
Request for Quote
In Stock • 10 units
802.11ac Wave 2 OfficeExtend AP, I Regulatory Domain
Specifications
| Model | AIR-OEAP1810-I-K9 |
|---|---|
| System | 512MB DRAM 256MB flash 1.4GHz system dual-core CPU |
| Weight | 1.2 kg |
| 802.11ac | 2x2 single-user/multiuser MIMO with two spatial streams Maximal ratio combining (MRC) 20-, 40- and 80-MHz channels PHY data rates up to 866.7Mbps (80MHz on 5GHz) Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Rx) 802.11 Dynamic Frequency Selection (DFS) Cyclic shift diversity (CSD) support |
| Mounting | Included with the access point: mounting bracket AIR-AP-BRACKET-W2, compatible to install to single gang junction box or multiple international standards Optional: 鈼?nbsp; AIR-AP1810W-KIT=, spacer kit to mount the access point directly on a wall where standard junction boxes are not available 鈼?nbsp; AIR-OEAP1810-CRD=, cradle kit to mount the access point on a desk |
| Software | Cisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.2.111.0 or later |
| Indicators | Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors Per-port status for local Ethernet ports For privacy, LEDs are automatically turned off when the access point joins a controller. LEDs may be enabled to be administratively - see configuration guide. |
| Interfaces | One 10/100/1000BASE-T PoE uplink port Management console port (RJ-45) Three 10/100/1000BASE-T ports (local Ethernet ports), including one PoE out port: 鈼?nbsp; PoE out provides 802.3af when access point is powered by Cisco local power supply (AIR-PWR-C=, AIR-PWR-D=), or ~6.5W when powered by 802.3at, or no output when powered by 802.3af One passive pass-through port RJ-45 (back to bottom) DC power connector |
| Power draw | Maximum values: 12.95W (15.4W with 100m of cable) with no PoE out, 20.7W (22W with 100m of cable) with 6.49W PoE out and 27.65W with 12.95W PoE out (when powered using AIR-PWR-C or AIR-PWR-D) Note: When deployed using PoE, the power draw numbers listed above include the power loss in 100m of cabling on the uplink port and 100m of cabling on the PoE out port. |
| Accessories | Mounting bracket: AIR-AP-BRACKET-W2= (available as spare) Spacer kit: AIR-AP1810W-KIT= (sold separately), includes spacer and RJ-45 jumper cable Cradle kit: AIR-OEAP1810-CRD= (sold separately), includes back cover and RJ-45 jumper cable Physical security kit: AIR-SEC-50= (sold separately), with 50 pcs. security screws used to secure the access point onto wall-mounting bracket, 50 pcs. RJ-45 caps and 2 pcs. unlock keys used to block physical access to Ethernet ports Cisco local power supply: AIR-PWR-D= (sold separately) |
| Environmental | Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C) Nonoperating (storage) maximum altitude: 25°C, 15,000 ft (4,500m) Operating temperature: 32° to 104°F (0° to 40°C) Operating humidity: 10% to 90% percent (noncondensing) Operating maximum altitude: 40°C, 9843 ft (3,000m) |
| Ethernet ports | Authentication with 802.1X or MAC filtered Dynamic VLAN or per port Traffic locally switched or tunneled back to wireless LAN controller |
| Maximum clients | Maximum number of associated wireless clients: 200 per Wi-Fi radio, in total 400 clients per access point |
| Powering options | 802.3af/at Ethernet switch Optional Cisco power injectors (AIR-PWRINJ5=, AIR-PWRINJ6=) Optional Cisco local power supply (AIR-PWR-C= or AIR-PWR-D=) |
| Physical security | Torx security screw, included with the access point Kensington security slot |
| Integrated antennas | 2.4GHz, gain 2 dBi 5GHz, gain 4 dBi |
| Dimensions (W x L x H) | Access point (without mounting bracket): 6.5 x 4.5 x 1.6in. (165 x 114 x 41mm) |
| Input power requirements | 44 to 57V DC Optional power supply and power injector: 100 to 240V AC; 49 to 60 Hz |
| Authentication and security | Advanced Encryption Standard (AES) for Wi-Fi Protected Access 2 (WPA2) 802.1X, RADIUS authentication, authorization and accounting (AAA) 802.11i |
| Bluetooth (future availability) | Integrated Bluetooth 4.1 (including BLE) radio Maximum transmit power: 5 dBm Antenna gain: 2 dBi |
| Maximum number of non-overlapping channels | II (I regulatory domain): 2.412 to 2.472GHz; 13 channels 5.180 to 5.320GHz; 8 channels |
| Receive sensitivity (combined sensitivity) | 802.11ac (non HT80) -88 dBm @ 6Mbps -70 dBm @ 54Mbps |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this AIR-OEAP1810-I-K9, Cisco AIR-OEAP1810 Series Access Point, 802.11ac Wave 2/OfficeExtend/Int. Antenna (AIR-OEAP1810-I-K9) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This AIR-OEAP1810-I-K9, Cisco AIR-OEAP1810 Series Access Point, 802.11ac Wave 2/OfficeExtend/Int. Antenna includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the AIR-OEAP1810-I-K9, Cisco AIR-OEAP1810 Series Access Point, 802.11ac Wave 2/OfficeExtend/Int. Antenna compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AIR-OEAP1810-I-K9.
