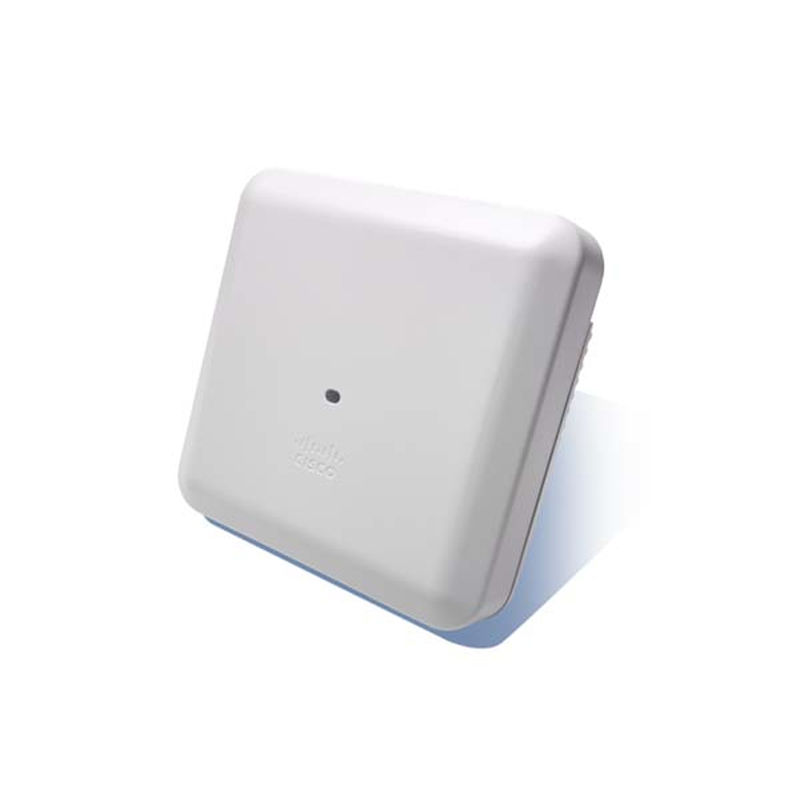

AIR-AP3802I-K-K9, Cisco AIR-AP3800 Access Point, 802.11ac Wave 2/4x4:3 MU-MIMO/Multigigabit Ethernet
Brand: Cisco · SKU: AIR-AP3802I-K-K9 · MPN: AIR-AP3802I-K-K9 · Category: Networking
802.11ac Wave 2 AP w/CleanAir, 4x4:3, Mod, Internal Antenna, mGig, K Regulatory Domain
Specifications
| Model | AIR-AP3802I-K-K9 |
|---|---|
| Detail | 802.11ac Wave 2 AP w/CleanAir, 4x4:3, Mod, Internal Antenna, mGig, K Regulatory Domain |
| Weight | 4.6 lb (2.09 kg) |
| Indicators | Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors |
| Interfaces | 2 Ethernet ports. 100/1000/2500/5000 Multigigabit Ethernet (RJ-45) – IEEE 802.3bz. CAT 5e cabling. Higher-quality 10GBASE-T (CAT 6/6a) cabling. 100/1000BASE-T autosensing (RJ-45 - AUX port). Management console port (RJ-45) |
| Power draw | 30W at the PSE with all features enabled except for the USB 2.0 port. 34W at the PSE with the USB 2.0 port enabled |
| Environmental | Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C). Nonoperating (storage) altitude test: 25°C, 15,000 ft. Operating temperature: 32° to 104°F (0° to 40°C). Operating humidity: 10% to 90% percent (noncondensing). Operating altitude test: 40°C, 9843 ft |
| System memory | 1024 MB DRAM. 256 MB Flash |
| Regulatory Domain | K (K regulatory domain): 2.412 to 2.472 GHz; 13 channels. 5.180 to 5.320 GHz; 8 channels. 5.500 to 5.620 GHz; 7 channels. 5.745 to 5.805 GHz; 4 channels |
| Integrated antenna | Flexible radio (either 2.4 GHz or 5 GHz). 2.4 GHz, gain 4 dBi, internal antenna, omnidirectional in azimuth. 5 GHz, gain 6 dBi, internal directional antenna, elevation plane beamwidth 90°. Dedicated 5-GHz radio. 5 GHz, gain 5 dBi, internal antenna, omnidirectional in azimuth |
| Dimensions (W x L x H) | 8.66 x 8.68 x 2.46 in. (22 x 22 x 6.25 cm) |
| Input power requirements | 802.3at PoE+, Cisco Universal Power over Ethernet (Cisco UPOE). 802.3at power injector (AIR-PWRINJ6=). 50W power supply (AIR-PWR-50=) |
| 802.11ac Wave 1 capabilities | 4x4 MIMO with three spatial streams. MRC. 802.11ac beamforming. 20-, 40-, and 80-MHz channels. PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz). Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx). 802.11 DFS. CSD support |
| 802.11ac Wave 2 capabilities | 4x4 MU-MIMO with three spatial streams. MRC. 802.11ac beamforming. 20-, 40-, 80, 160-MHz channels. PHY data rates up to 5.2 Gbps. Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx). 802.11 DFS. CSD support |
| 802.11n version 2.0 (and related) capabilities | 4x4 MIMO with three spatial streams. Maximal ratio combining (MRC). 802.11n and 802.11a/g beamforming. 20- and 40-MHz channels. PHY data rates up to 450 Mbps (40 MHz with 5 GHz). Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx). 802.11 dynamic frequency selection (DFS). Cyclic shift diversity (CSD) support |
| Software and supported wireless LAN controllers | Cisco Unified Wireless Network Software Release 8.2.MR1 or later. Cisco 2500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Catalyst 6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco Flex 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco Virtual Wireless Controller. Cisco IOS XE Software Release 16.3 – Target Q3 CY2016. Cisco Catalyst 3850 Series and 3650 Series Switches |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this AIR-AP3802I-K-K9, Cisco AIR-AP3800 Access Point, 802.11ac Wave 2/4x4:3 MU-MIMO/Multigigabit Ethernet (AIR-AP3802I-K-K9) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This AIR-AP3802I-K-K9, Cisco AIR-AP3800 Access Point, 802.11ac Wave 2/4x4:3 MU-MIMO/Multigigabit Ethernet includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the AIR-AP3802I-K-K9, Cisco AIR-AP3800 Access Point, 802.11ac Wave 2/4x4:3 MU-MIMO/Multigigabit Ethernet compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AIR-AP3802I-K-K9.
