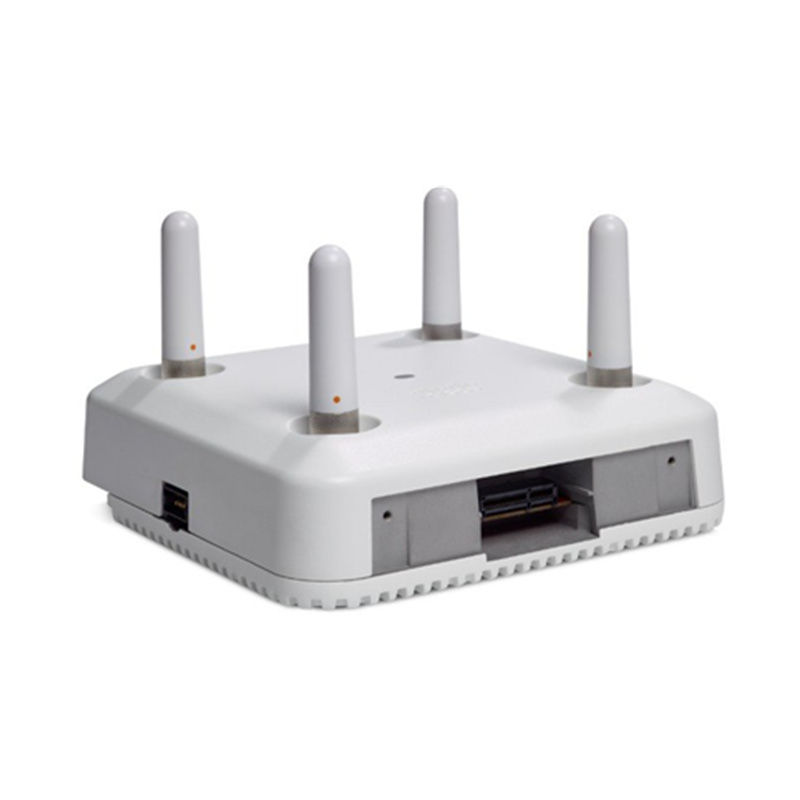

AIR-AP3802E-QK910C, Cisco AIR-AP3800 Access Point, 4x4:3 MU-MIMO/802.11ac Wave 2/mGig port
Brand: Cisco · SKU: AIR-AP3802E-QK910C · MPN: AIR-AP3802E-QK910C · Category: Networking
802.11ac Wave 2 10 AP w/CleanAir, 4x4:3, Mod, External Antenna, mGig, Q Regulatory Domain, Configurable
Specifications
| Model | AIR-AP3802E-QK910C |
|---|---|
| Indicators | Status LED: boot loader status, association, operating status, warnings, errors |
| Interfaces | 2 Ethernet ports; 100/1000/2500/5000 Multigigabit Ethernet (RJ-45, IEEE 802.3bz); CAT 5e/10GBASE-T (CAT 6/6a) cabling; AUX port (100/1000BASE-T, autosensing); Management console port (RJ-45) |
| Power Draw | 30W at PSE (all features except USB 2.0); 34W at PSE (USB 2.0 enabled) |
| Description | Eco-pack (dual-band 802.11a/g/n/ac), 10 access points, configurable |
| System Memory | 1024 MB DRAM; 256 MB flash |
| Integrated Antenna | Flexible radio (2.4 GHz or 5 GHz); 2.4 GHz: gain 4 dBi, internal, omnidirectional azimuth; 5 GHz: gain 6 dBi, internal, directional (90° elevation); Dedicated 5 GHz radio: gain 5 dBi, internal, omnidirectional |
| 802.11n Capabilities | 4x4 MIMO with three spatial streams; Maximal Ratio Combining (MRC); 802.11n and 802.11a/g beamforming; 20/40 MHz channels; PHY data rate up to 450 Mbps (40 MHz, 5 GHz); Packet aggregation (A-MPDU Tx/Rx, A-MSDU Tx/Rx); DFS; Cyclic Shift Diversity (CSD) |
| Environmental - 3800i | Storage: -30°C to 70°C (-22°F to 158°F); Altitude: 15,000 ft @25°C; Operation: 0°C to 40°C (32°F to 104°F); Humidity: 10%–90% noncondensing; Operating altitude: 9,843 ft @40°C |
| Regulatory Domain (Q) | 2.412–2.472 GHz, 13 channels; 5.180–5.320 GHz, 8 channels; 5.500–5.700 GHz, 11 channels |
| Dimensions (W x L x H) | 3802I: 8.66 x 8.68 x 2.46 in (22 x 22 x 6.25 cm); 3802E/3802P: 8.66 x 8.68 x 2.62 in (22 x 22 x 6.7 cm) |
| Smart Antenna Connector | Available on 3802e and 3802p only; Requires AIR-CAB002-DART-R= (2 ft, RP-TNC) for second antenna; Needed when running flexible radio as 2nd 5 GHz or Security Monitoring radio |
| Input Power Requirements | 802.3at PoE+; Cisco Universal Power over Ethernet (UPOE); 802.3at power injector (AIR-PWRINJ6=); 50W power supply (AIR-PWR-50=) |
| Environmental - 3800e/3800p | Storage: -30°C to 70°C (-22°F to 158°F); Altitude: 15,000 ft @25°C; Operation: -20°C to 50°C (-4°F to 122°F); Humidity: 10%–90% noncondensing; Operating altitude: 9,843 ft @40°C |
| External Antenna (Optional) | 3802e: supports antennas up to 6 dBi (2.4/5 GHz); 3802p: up to 13 dBi (with AIR-ANT2513-P4M-N=, 2.4/5 GHz); Wide selection of Cisco antennas available for optimal coverage |
| 802.11ac Wave 1 Capabilities | 4x4 MIMO with three spatial streams; MRC; 802.11ac beamforming; 20/40/80 MHz channels; PHY data rate up to 1.3 Gbps (80 MHz in 5 GHz); Packet aggregation (A-MPDU Tx/Rx, A-MSDU Tx/Rx); DFS; CSD support |
| 802.11ac Wave 2 Capabilities | 4x4 MU-MIMO with three spatial streams; MRC; 802.11ac beamforming; 20/40/80/160 MHz channels; PHY data rate up to 5.2 Gbps; Packet aggregation (A-MPDU Tx/Rx, A-MSDU Tx/Rx); DFS; CSD support |
| Supported Software / Controllers | Cisco Unified Wireless Network Software Release 8.2.MR1 or later; Supported Controllers: Cisco 2500, Wireless Controller Module for ISR G2, Wireless Services Module 2 (WiSM2) for Catalyst 6500, Cisco 5500, Flex 7500, 8500, Virtual Wireless Controller; Cisco IOS XE Software Release 16.3 (Target Q3 CY2016); Cisco Catalyst 3850/3650 series switches |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this AIR-AP3802E-QK910C, Cisco AIR-AP3800 Access Point, 4x4:3 MU-MIMO/802.11ac Wave 2/mGig port (AIR-AP3802E-QK910C) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This AIR-AP3802E-QK910C, Cisco AIR-AP3800 Access Point, 4x4:3 MU-MIMO/802.11ac Wave 2/mGig port includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the AIR-AP3802E-QK910C, Cisco AIR-AP3800 Access Point, 4x4:3 MU-MIMO/802.11ac Wave 2/mGig port compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AIR-AP3802E-QK910C.
