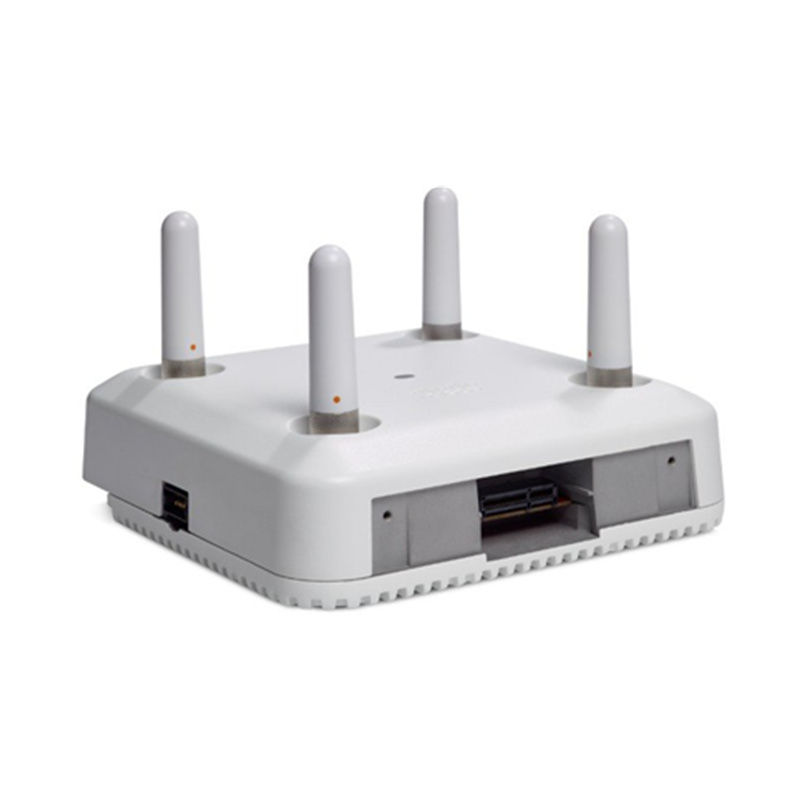

AIR-AP3802E-E-K9, Cisco AIR-AP3800 Series Access Point, 4x4:3 MU-MIMO/802.11ac Wave 2/mGig uplink
Brand: Cisco · SKU: AIR-AP3802E-E-K9 · MPN: AIR-AP3802E-E-K9 · Category: Networking
802.11ac Wave 2 AP w/CleanAir, 4x4:3, Mod, External Antenna, mGig, E Regulatory Domain
Specifications
| Model | AIR-AP3802E-E-K9 |
|---|---|
| Indicators | Status LED for boot loader status, association, operating status, warnings and errors |
| Interfaces | 2 Ethernet ports; 100/1000/2500/5000 Multigigabit Ethernet (RJ-45, IEEE 802.3bz); CAT 5e or higher cables recommended; 100/1000BASE-T autosensing AUX port; RJ-45 management console |
| Power Draw | 30W at PSE (all features except USB 2.0); 34W at PSE (USB 2.0 enabled) |
| Description | 802.11ac Wave 2 access point with CleanAir, 4x4:3 MIMO, modular design, external antenna support, Multigigabit Ethernet, E regulatory domain |
| System Memory | 1024 MB DRAM, 256 MB flash |
| Regulatory Domain | E domain: 2.412–2.472 GHz (13 channels); 5.180–5.320 GHz (8 channels); 5.500–5.700 GHz (8 channels, excludes 5.600–5.640 GHz) |
| Integrated Antenna | Flexible radio: 2.4 GHz (4 dBi, internal, omnidirectional), 5 GHz (6 dBi, internal directional, 90° elevation beamwidth); Dedicated 5 GHz radio: 5 dBi, internal, omnidirectional |
| Dimensions (W x L x H) | Without brackets: 3802I: 8.66 x 8.68 x 2.46 in (22 x 22 x 6.25 cm); 3802E/3802P: 8.66 x 8.68 x 2.62 in (22 x 22 x 6.7 cm) |
| Smart Antenna Connector | 3802e/3802p only; uses AIR-CAB002-DART-R= 2 ft cable for connection to RP-TNC; required for second 5 GHz radio or wireless security monitoring radio |
| External Antenna Support | 3802e: up to 6 dBi (2.4 and 5 GHz); 3802p: up to 13 dBi with AIR-ANT2513-P4M-N=; Wide selection of Cisco antennas available for different coverage needs |
| Input Power Requirements | 802.3at PoE+, Cisco UPOE; 802.3at power injector (AIR-PWRINJ6=); 50W power supply (AIR-PWR-50=) |
| 802.11ac Wave 1 Capabilities | 4x4 MIMO, three spatial streams, MRC, 802.11ac beamforming, 20/40/80 MHz channels, PHY rates up to 1.3 Gbps (80 MHz, 5 GHz), packet aggregation (A-MPDU/A-MSDU), DFS, CSD support |
| 802.11ac Wave 2 Capabilities | 4x4 MU-MIMO, three spatial streams, MRC, 802.11ac beamforming, 20/40/80/160 MHz channels, PHY rates up to 5.2 Gbps, packet aggregation (A-MPDU/A-MSDU), DFS, CSD support |
| 802.11n Version 2.0 Capabilities | 4x4 MIMO, three spatial streams, maximal ratio combining (MRC), 802.11n/a/g beamforming, 20/40 MHz channels, PHY rates up to 450 Mbps (40 MHz, 5 GHz), packet aggregation (A-MPDU/A-MSDU), DFS, cyclic shift diversity (CSD) |
| Environmental (3800i/3800e/3800p) | Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C); Storage altitude: 25°C, 15,000 ft; 3800i operating: 32° to 104°F (0° to 40°C), 10–90% humidity, 40°C, 9843 ft altitude 3800e/p operating: -4° to 122°F (-20° to 50°C), 10–90% humidity, 40°C, 9843 ft altitude |
| Software and Supported Wireless LAN Controllers | Cisco Unified Wireless Network Software Release 8.2.MR1 or later; Cisco 2500, 5500, 8500 Series Wireless Controllers; Wireless Controller Module for ISR G2; WiSM2 for Catalyst 6500; Flex 7500 Series Controllers; Virtual Wireless Controller; IOS XE Release 16.3 or later; Catalyst 3850/3650 Switches |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this AIR-AP3802E-E-K9, Cisco AIR-AP3800 Series Access Point, 4x4:3 MU-MIMO/802.11ac Wave 2/mGig uplink (AIR-AP3802E-E-K9) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This AIR-AP3802E-E-K9, Cisco AIR-AP3800 Series Access Point, 4x4:3 MU-MIMO/802.11ac Wave 2/mGig uplink includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the AIR-AP3802E-E-K9, Cisco AIR-AP3800 Series Access Point, 4x4:3 MU-MIMO/802.11ac Wave 2/mGig uplink compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AIR-AP3802E-E-K9.
