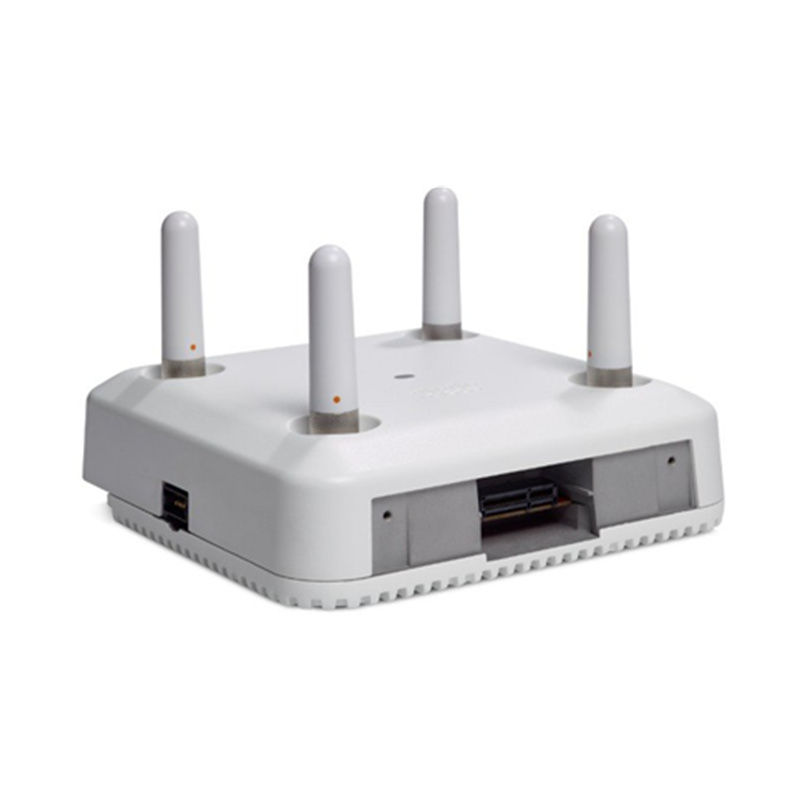

AIR-AP3802E-AK910, Cisco AIR-AP3800 Series Access Point, 4x4:3 MU-MIMO/802.11ac Wave 2/Modular Design
Brand: Cisco · SKU: AIR-AP3802E-AK910 · MPN: AIR-AP3802E-AK910 · Category: Networking
802.11ac Wave 2 10 AP w/CleanAir, 4x4:3, Mod, External Antenna, mGig, A Regulatory Domain
Specifications
| Model | AIR-AP3802E-AK910 |
|---|---|
| Indicators | Status LED for boot loader, association, operation, warnings, errors. |
| Interfaces | 2 Ethernet ports: 100/1000/2500/5000 Multigigabit Ethernet (RJ-45, IEEE 802.3bz), CAT 5e or higher 10GBASE-T (CAT 6/6a) cabling, 100/1000BASE-T autosensing AUX port (RJ-45), management console port (RJ-45). |
| Power Draw | 30W at PSE (all features except USB 2.0); 34W at PSE (with USB 2.0 enabled). |
| System Memory | 1024 MB DRAM, 256 MB flash |
| Integrated Antenna | Flexible radio: 2.4 GHz (4 dBi, internal, omnidirectional), 5 GHz (6 dBi, internal, directional, 90° beamwidth); Dedicated 5 GHz: 5 dBi, internal, omnidirectional. |
| Environmental (3800i) | Storage: -30°C to 70°C (-22°F to 158°F), 15,000 ft at 25°C; Operating: 0°C to 40°C (32°F to 104°F), 10-90% noncondensing humidity, 9,843 ft at 40°C. |
| Dimensions (W x L x H) | 3802I: 8.66 x 8.68 x 2.46 in (22 x 22 x 6.25 cm); 3802E/P: 8.66 x 8.68 x 2.62 in (22 x 22 x 6.7 cm). |
| Smart Antenna Connector | Available for 3802e and 3802p. Requires AIR-CAB002-DART-R= (2 ft, to RP-TNC) to connect second antenna. Needed to run the flexible radio as second 5 GHz or Wireless Security Monitoring radio. |
| Input Power Requirements | 802.3at PoE+, Cisco Universal Power over Ethernet (UPOE®), 802.3at power injector (AIR-PWRINJ6=), 50W power supply (AIR-PWR-50=). |
| Environmental (3800e/3800p) | Storage: -30°C to 70°C (-22°F to 158°F), 15,000 ft at 25°C; Operating: -20°C to 50°C (-4°F to 122°F), 10-90% noncondensing humidity, 9,843 ft at 40°C. |
| 802.11ac Wave 1 Capabilities | 4x4 MIMO with three spatial streams, MRC, 802.11ac beamforming, 20/40/80 MHz channels, PHY rates up to 1.3 Gbps, A-MPDU and A-MSDU aggregation, DFS, CSD. |
| 802.11ac Wave 2 Capabilities | 4x4 MU-MIMO with three spatial streams, MRC, 802.11ac beamforming, 20/40/80/160 MHz channels, PHY rates up to 5.2 Gbps, A-MPDU and A-MSDU aggregation, DFS, CSD. |
| 802.11n Version 2.0 Capabilities | 4x4 MIMO with three spatial streams, maximal ratio combining (MRC), 802.11n/a/g beamforming, 20/40 MHz channels, PHY rates up to 450 Mbps, A-MPDU and A-MSDU aggregation, dynamic frequency selection (DFS), cyclic shift diversity (CSD). |
| External Antenna (Sold Separately) | 3802e: supports antenna gains up to 6 dBi (2.4/5 GHz). 3802p: supports up to 13 dBi (with AIR-ANT2513-P4M-N= for 2.4/5 GHz). Cisco offers a wide range of antennas for various deployments. |
| Software and Supported Wireless LAN Controllers | Cisco Unified Wireless Network Software Release 8.2.MR1 or later. Supported controllers: Cisco 2500 Series, Wireless Controller Module for ISR G2, Wireless Services Module 2 (WiSM2) for Catalyst® 6500 Series Switches, 5500 Series, Flex® 7500 Series, 8500 Series, Virtual Wireless Controller, Cisco IOS® XE Software Release 16.3 and later; Cisco Catalyst 3850/3650 Series Switches. |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this AIR-AP3802E-AK910, Cisco AIR-AP3800 Series Access Point, 4x4:3 MU-MIMO/802.11ac Wave 2/Modular Design (AIR-AP3802E-AK910) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This AIR-AP3802E-AK910, Cisco AIR-AP3800 Series Access Point, 4x4:3 MU-MIMO/802.11ac Wave 2/Modular Design includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the AIR-AP3802E-AK910, Cisco AIR-AP3800 Series Access Point, 4x4:3 MU-MIMO/802.11ac Wave 2/Modular Design compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AIR-AP3802E-AK910.
