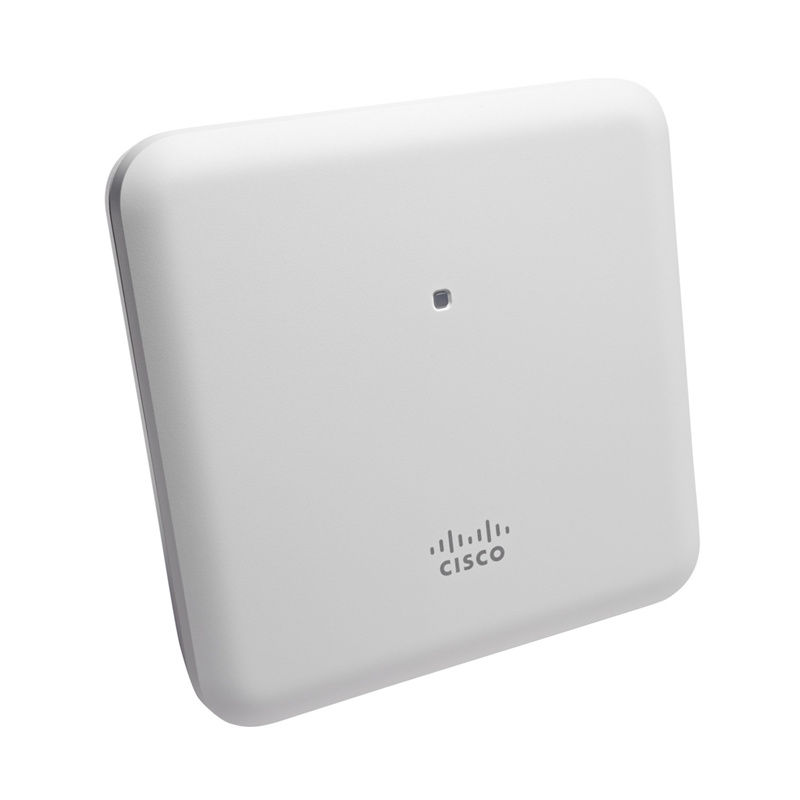

AIR-AP2802I-G-K9, Cisco AIR-AP2800 Access Point, 802.11ac Wave 2/4x4:3 MIMO/2xGbE
Brand: Cisco · SKU: AIR-AP2802I-G-K9 · MPN: AIR-AP2802I-G-K9 · Category: Networking
$1,000.96
In Stock • 10 units
802.11ac Wave 2 AP w/CleanAir, 4x4:3, Internal Antenna, 2xGbE G Regulatory Domain
Specifications
| Model | AIR-AP2802I-G-K9 |
|---|---|
| Software | Cisco Unified Wireless Network Software Release 8.2.111.0 or later Cisco IOS ® XE Software Release 16.3 |
| Interfaces | 2 x 100/1000BASE-T autosensing (RJ-45), Management console port (RJ-45), USB 2.0 (enabled via future software) |
| Power Draw | 26W at the PSE with all features enabled except USB 2.0 port 30W at the PSE with USB 2.0 port enabled |
| System Memory | 1024 MB DRAM 256 MB flash |
| Status Indicators | Status LED for boot loader, association, operation, warnings, and errors |
| Integrated Antenna | Flexible radio (either 2.4 GHz or 5 GHz): - 2.4 GHz, gain 4 dBi, internal antenna, omnidirectional in azimuth - 5 GHz, gain 6 dBi, internal directional antenna, 90° elevation plane beamwidth Dedicated 5-GHz radio: - 5 GHz, gain 5 dBi, internal antenna, omnidirectional in azimuth |
| Environmental (2802e) | Storage temperature: -30°C to 70°C (-22°F to 158°F) Storage altitude: 15,000 ft at 25°C Operating temperature: -20°C to 50°C (-4°F to 122°F) Operating humidity: 10% to 90% (noncondensing) Operating altitude: 9,843 ft at 40°C |
| Environmental (2802i) | Storage temperature: -30°C to 70°C (-22°F to 158°F) Storage altitude: 15,000 ft at 25°C Operating temperature: 0°C to 40°C (32°F to 104°F) Operating humidity: 10% to 90% (noncondensing) Operating altitude: 9,843 ft at 40°C |
| Dimensions (W x L x H) | 2802I: 8.66 in x 8.68 in x 2.17 in 2802E: 8.66 in x 8.77 in x 2.50 in |
| Smart Antenna Connector | Available on 2802e Series access points only. Requires the AIR-CAB002-DART-R= 2 ft smart antenna connector to RP-TNC connectors for a second antenna. Needed when running the flexible radio as a second 5-GHz serving radio or Wireless Security Monitoring radio. |
| Input Power Requirements | 802.3at PoE+, Cisco Universal PoE (UPOE ® ), 802.3at power injector (AIR-PWRINJ6=) |
| 802.11ac Wave 1 Capabilities | 4x4 MIMO with three spatial streams, MRC, 802.11ac beamforming, 20-, 40-, and 80-MHz channels, PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz), Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx), 802.11 DFS, CSD support |
| 802.11ac Wave 2 Capabilities | 4x4 MU-MIMO with three spatial streams, MRC, 802.11ac beamforming, 20-, 40-, 80-, 160-MHz channels, PHY data rates up to 5.2 Gbps, Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx), 802.11 DFS, CSD support |
| 802.11n Version 2.0 Capabilities | 4x4 MIMO with three spatial streams, Maximal ratio combining (MRC), 802.11n and 802.11a/g beamforming, 20- and 40-MHz channels, PHY data rates up to 450 Mbps (40 MHz with 5 GHz), Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx), 802.11 dynamic frequency selection (DFS), Cyclic shift diversity (CSD) support |
| External Antenna (Sold Separately) | 2802e Series access points are certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz). Cisco offers a broad selection of antennas for different deployment needs. |
| Supported Wireless LAN Controllers | Cisco 2500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Catalyst ® 6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco Flex ® 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco Virtual Wireless Controller, Cisco Catalyst 3850 Series Switches, Cisco Catalyst 3650 Series Switches, Cisco Mobility Express |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this AIR-AP2802I-G-K9, Cisco AIR-AP2800 Access Point, 802.11ac Wave 2/4x4:3 MIMO/2xGbE (AIR-AP2802I-G-K9) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This AIR-AP2802I-G-K9, Cisco AIR-AP2800 Access Point, 802.11ac Wave 2/4x4:3 MIMO/2xGbE includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the AIR-AP2802I-G-K9, Cisco AIR-AP2800 Access Point, 802.11ac Wave 2/4x4:3 MIMO/2xGbE compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AIR-AP2802I-G-K9.
