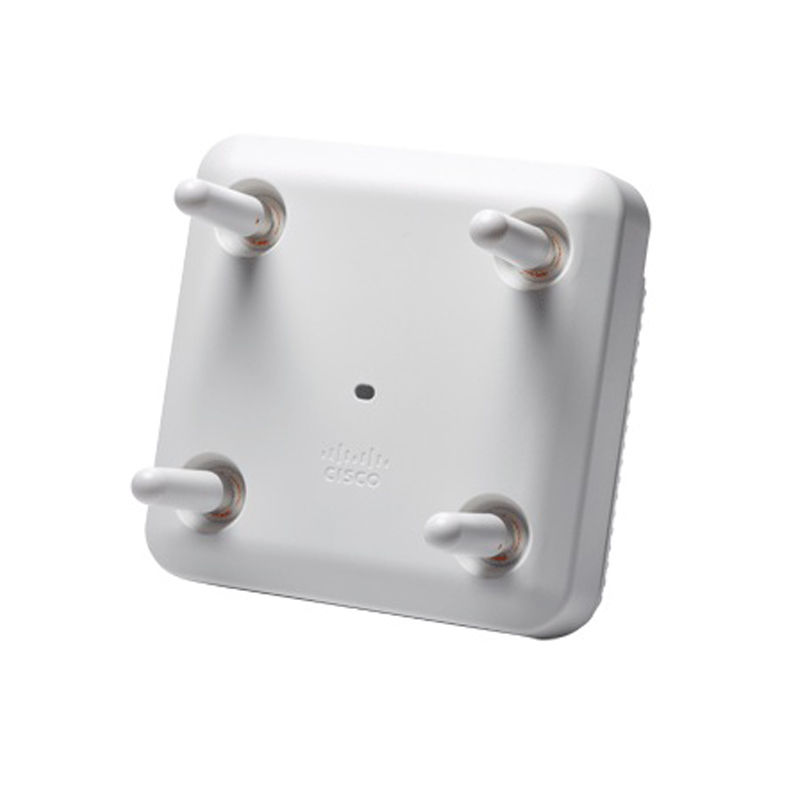

AIR-AP2802E-Q-K9, Cisco Aironet Access Point, 4x4:3 MU-MIMO/802.11ac Wave 2/2xGbE
Brand: Cisco · SKU: AIR-AP2802E-Q-K9 · MPN: AIR-AP2802E-Q-K9 · Category: Networking
802.11ac Wave 2 AP w/CleanAir, 4x4:3, External Antenna, 2xGbE, Q Regulatory Domain
Specifications
| Model | AIR-AP2802E-Q-K9 |
|---|---|
| Software | Cisco Unified Wireless Network Software Release 8.2.111.0 or later; Cisco IOS® XE Software Release 16.3 |
| Indicators | Status LED for boot loader status, association status, operational status, boot loader warnings and errors |
| Interfaces | 2 x 100/1000BASE-T (RJ-45, autosensing); Management console port (RJ-45); USB 2.0 (future software enablement) |
| Power Draw | 26 W at the PSE with all features (except USB 2.0); 30 W at the PSE with USB 2.0 enabled |
| System Memory | 1024 MB DRAM; 256 MB flash |
| Integrated Antenna | Flexible radio (2.4 GHz or 5 GHz): 2.4 GHz, gain 4 dBi, internal omnidirectional; 5 GHz, gain 6 dBi, internal directional (90° elevation beamwidth) Dedicated 5 GHz radio: 5 GHz, gain 5 dBi, internal omnidirectional |
| 802.11n Capabilities | 4x4 MIMO with three spatial streams; Maximal ratio combining (MRC); 802.11n and 802.11a/g beamforming; 20/40 MHz channels; PHY data rates up to 450 Mbps (40 MHz at 5 GHz); Packet aggregation: A‑MPDU (Tx/Rx), A‑MSDU (Tx/Rx); 802.11 DFS; Cyclic shift diversity (CSD) support |
| Environmental (2802e) | Storage temp.: -30°C to 70°C (-22°F to 158°F); Storage altitude: 25°C, 15,000 ft; Operating temp.: -20°C to 50°C (-4°F to 122°F); Operating humidity: 10% to 90% (non-condensing); Operating altitude: 40°C, 9,843 ft |
| Environmental (2802i) | Storage temp.: -30°C to 70°C (-22°F to 158°F); Storage altitude: 25°C, 15,000 ft; Operating temp.: 0°C to 40°C (32°F to 104°F); Operating humidity: 10% to 90% (non-condensing); Operating altitude: 40°C, 9,843 ft |
| Dimensions (W x L x H) | Access point (without brackets): 2802I: 8.66 in x 8.68 in x 2.17 in 2802E: 8.66 in x 8.77 in x 2.50 in |
| Smart Antenna Connector | Featured on 2802e Series only; needs AIR-CAB002-DART-R= 2 ft smart antenna cable to RP-TNC for second antenna; required when flexible radio operates as second 5 GHz or as Wireless Security Monitoring radio |
| External Antenna Support | Certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz). Cisco offers a wide range of antennas for different scenarios (sold separately). |
| Input Power Requirements | 802.3at PoE+; Cisco Universal PoE (UPOE®); 802.3at power injector (AIR-PWRINJ6=) |
| 802.11ac Wave 1 Capabilities | 4x4 MIMO with three spatial streams; MRC; 802.11ac beamforming; 20/40/80 MHz channels; PHY data rates up to 1.3 Gbps (80 MHz at 5 GHz); Packet aggregation: A‑MPDU (Tx/Rx), A‑MSDU (Tx/Rx); 802.11 DFS; CSD support |
| 802.11ac Wave 2 Capabilities | 4x4 MU-MIMO with three spatial streams; MRC; 802.11ac beamforming; 20/40/80/160 MHz channels; PHY data rates up to 5.2 Gbps; Packet aggregation: A‑MPDU (Tx/Rx), A‑MSDU (Tx/Rx); 802.11 DFS; CSD support |
| Supported Wireless LAN Controllers | Cisco 2500 Series Wireless Controllers, Wireless Controller Module for ISR G2, Wireless Services Module 2 (WiSM2) for Catalyst® 6500 Series Switches, 5500 Series Wireless Controllers, Flex® 7500 Series Wireless Controllers, 8500 Series Wireless Controllers, Virtual Wireless Controller, Catalyst 3850 Series Switches, Catalyst 3650 Series Switches, Cisco Mobility Express |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
