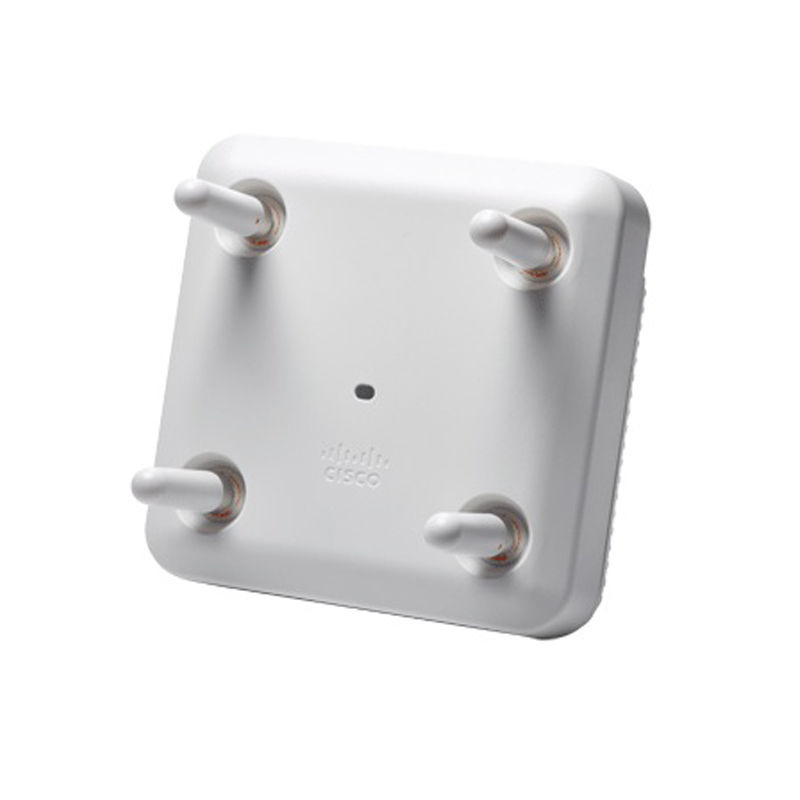

AIR-AP2802E-G-K9, Cisco AIR-AP2800 Access Point, 4x4:3 MU-MIMO/2xGbE/External Antenna
Brand: Cisco · SKU: AIR-AP2802E-G-K9 · MPN: AIR-AP2802E-G-K9 · Category: Networking
802.11ac Wave 2 AP w/CleanAir, 4x4:3, External Antenna, 2xGbE, G Regulatory Domain
Specifications
| Model | AIR-AP2802E-G-K9 |
|---|---|
| Software | Cisco Unified Wireless Network Software Release 8.2.111.0 or later; Cisco IOS ® XE Software Release 16.3 |
| Indicators | Status LED: boot loader, association, operation, warnings, errors |
| Interfaces | 2x 100/1000BASE-T autosensing (RJ-45); Management console port (RJ-45); USB 2.0 (enabled via future software) |
| Power Draw | 26 W at PSE with all features except USB 2.0 port; 30 W at PSE with USB 2.0 port enabled |
| System Memory | 1024 MB DRAM; 256 MB flash |
| Integrated Antenna | Flexible radio: 2.4 GHz or 5 GHz; 2.4 GHz, gain 4 dBi, omnidirectional in azimuth (internal antenna); 5 GHz, gain 6 dBi, directional (internal antenna), elevation beamwidth 90°; Dedicated 5 GHz radio: gain 5 dBi, omnidirectional in azimuth (internal antenna) |
| 802.11n Capabilities | 4x4 MIMO, 3 spatial streams; Maximal Ratio Combining (MRC); 802.11n/a/g beamforming; 20/40 MHz channels; PHY data rates up to 450 Mbps (40 MHz @ 5 GHz); Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx); 802.11 DFS; Cyclic Shift Diversity (CSD) |
| Dimensions (W x L x H) | 2802I (no bracket): 8.66 in × 8.68 in × 2.17 in; 2802E (no bracket): 8.66 in × 8.77 in × 2.50 in |
| Smart Antenna Connector | Only on 2802e Series; Requires AIR-CAB002-DART-R= (2 ft) adapter to RP-TNC for second antenna connection; Needed when flexible radio acts as second 5 GHz radio or as Wireless Security Monitoring radio |
| Input Power Requirements | 802.3at PoE+; Cisco Universal PoE (UPOE ® ); 802.3at power injector (AIR-PWRINJ6=) |
| Environmental (Operating) | 2802i: 0°C to 40°C (32°F to 104°F), 10–90% humidity (noncondensing), up to 9843 ft (40°C); 2802e: -20°C to 50°C (-4°F to 122°F), 10–90% humidity (noncondensing), up to 9843 ft (40°C) |
| 802.11ac Wave 1 Capabilities | 4x4 MIMO, 3 spatial streams; MRC; 802.11ac beamforming; 20/40/80 MHz channels; PHY data rates up to 1.3 Gbps (80 MHz @ 5 GHz); Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx); 802.11 DFS; CSD support |
| 802.11ac Wave 2 Capabilities | 4x4 MU-MIMO, 3 spatial streams; MRC; 802.11ac beamforming; 20/40/80/160 MHz channels; PHY data rates up to 5.2 Gbps; Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx); 802.11 DFS; CSD support |
| Environmental (Nonoperating) | Storage temp: -30°C to 70°C (-22°F to 158°F); Storage altitude: 25°C, 15,000 ft |
| External Antenna (sold separately) | Certified for up to 6 dBi gain (2.4 GHz/5 GHz); Wide selection of Cisco antennas for various deployment needs |
| Supported Wireless LAN Controllers | Cisco 2500 Series Wireless Controllers; Cisco Wireless Controller Module for ISR G2; Cisco Wireless Services Module 2 (WiSM2) for Catalyst ® 6500 Series Switches; Cisco 5500 Series Wireless Controllers; Cisco Flex ® 7500 Series Wireless Controllers; Cisco 8500 Series Wireless Controllers; Cisco Virtual Wireless Controller; Cisco Catalyst 3850/3650 Series Switches; Cisco Mobility Express |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this AIR-AP2802E-G-K9, Cisco AIR-AP2800 Access Point, 4x4:3 MU-MIMO/2xGbE/External Antenna (AIR-AP2802E-G-K9) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This AIR-AP2802E-G-K9, Cisco AIR-AP2800 Access Point, 4x4:3 MU-MIMO/2xGbE/External Antenna includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the AIR-AP2802E-G-K9, Cisco AIR-AP2800 Access Point, 4x4:3 MU-MIMO/2xGbE/External Antenna compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AIR-AP2802E-G-K9.
