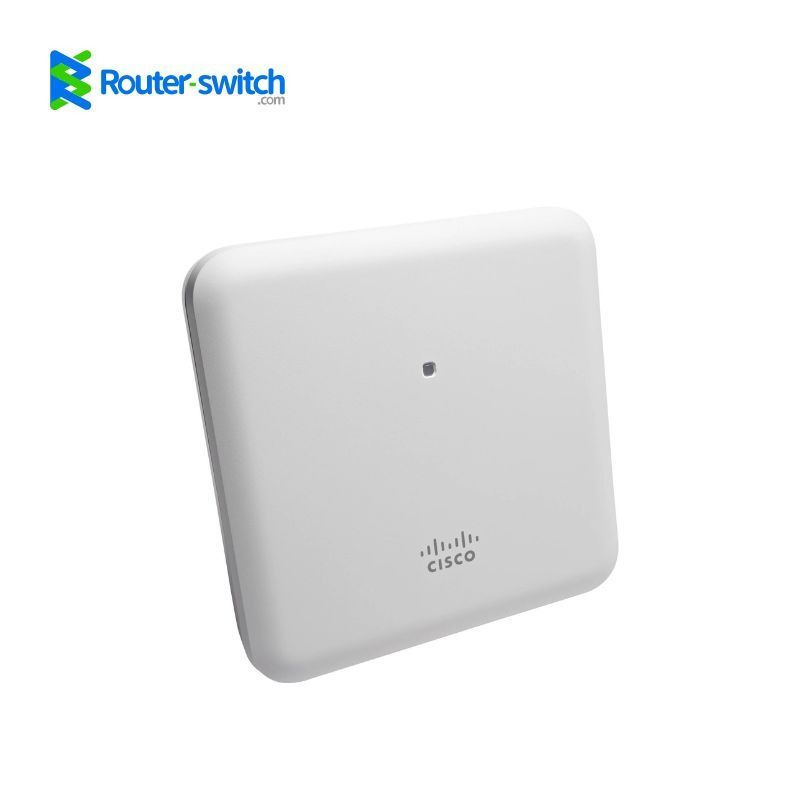

AIR-AP1832I-A-K9, Cisco AIR Series Access Point, 802.11ac Wave 2/3x3:2 MIMO/Internal Antenna
Brand: Cisco · SKU: AIR-AP1832I-A-K9 · MPN: AIR-AP1832I-A-K9 · Category: Networking
802.11ac Wave 2 AP, 3x3:2, Internal Antenna, A Regulatory Domain
Specifications
| Model | AIR-AP1832I-A-K9 |
|---|---|
| Software | Cisco Unified Wireless Network Software Release with AireOS wireless controllers: 8.1.121.0 or later for the Cisco Aironet 1830 Series Access Points |
| Indicators | Status LED for boot loader, association, operation, warnings, and errors |
| Interfaces | 1 x 10/100/1000BASE-T autosensing (RJ-45), PoE; management console port (RJ-45); USB 2.0 (future software support) |
| Power Draw | 15.4 W (actual PoE draw depends on cable length and type) |
| Environmental | Non-operating temperature: -30°C to 70°C; operating: 0°C to 40°C; non-operating altitude: 25°C, up to 15,000 ft.; operating altitude: 40°C, up to 9,843 ft.; humidity: 10% to 90% (non-condensing) |
| System Memory | 1 GB DRAM, 256 MB flash |
| 802.11n Features | 3x3 MIMO with 2 spatial streams, maximal ratio combining (MRC), 20- and 40-MHz channels, PHY data rates up to 300 Mbps (40 MHz, 5 GHz), packet aggregation (A-MPDU/A-MSDU Tx/Rx), 802.11 DFS, cyclic shift diversity (CSD) |
| Deployment Modes | Centralized, standalone, sniffer, Cisco FlexConnect™, monitor, OfficeExtend, mesh |
| Powering Options | 802.3af/802.3at, Enhanced PoE, Cisco local power supply (AIR-PWR-C=), Cisco power injector (AIR-PWRINJ5= for 802.3af, AIR-PWRINJ6=); Note: USB port disabled under 802.3af PoE |
| Integrated Antenna | 2.4 GHz: 3 dBi, internal omnidirectional, 360° horizontal beamwidth; 5 GHz: 5 dBi, internal omnidirectional, 360° horizontal beamwidth |
| Dimensions (W x L x H) | 8.3 x 8.3 x 2 in. (210.8 x 210.8 x 50.8 mm), without mounting bracket |
| Input Power Requirements | 44 to 57 VDC (AP), power supply/injector: 100 to 240 VAC; 50 to 60 Hz |
| 802.11ac Wave 1 & 2 Features | 3x3 MIMO, 2 spatial streams, single-user/multiuser MIMO, maximal ratio combining (MRC), 802.11ac transmit beamforming, 20-, 40-, 80-MHz channels, PHY rates up to 867 Mbps (80 MHz, 5 GHz), packet aggregation (A-MPDU/A-MSDU Tx/Rx), 802.11 DFS, CSD support |
| Supported Wireless LAN Controllers | Cisco 2500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Cisco Catalyst® 6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco 5520 Series Wireless Controllers, Cisco Flex® 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco 8540 Series Wireless Controllers, Cisco 5760 Wireless LAN Controller, Cisco Catalyst 3650/3850 Series Switches with integrated controller, Cisco Mobility Express |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this AIR-AP1832I-A-K9, Cisco AIR Series Access Point, 802.11ac Wave 2/3x3:2 MIMO/Internal Antenna (AIR-AP1832I-A-K9) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This AIR-AP1832I-A-K9, Cisco AIR Series Access Point, 802.11ac Wave 2/3x3:2 MIMO/Internal Antenna includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the AIR-AP1832I-A-K9, Cisco AIR Series Access Point, 802.11ac Wave 2/3x3:2 MIMO/Internal Antenna compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AIR-AP1832I-A-K9.
