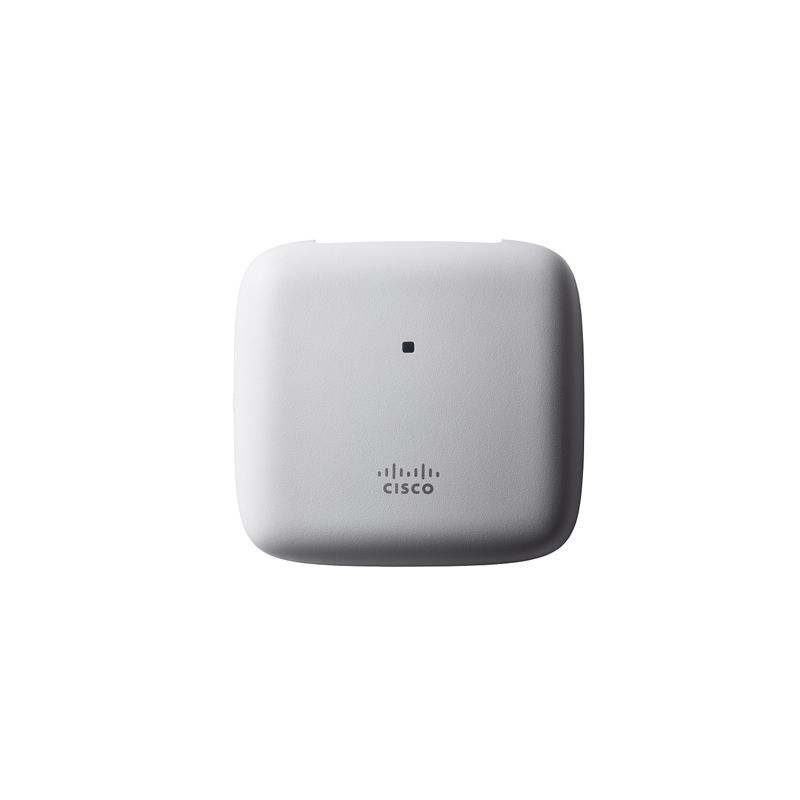

AIR-AP1815M-K-K9C, Cisco Aironet 1815m Access Point, 2x2 MIMO/867 Mbps/PoE

Brand: Cisco · SKU: AIR-AP1815M-K-K9C · MPN: AIR-AP1815M-K-K9C · Category: Networking

AIR-AP1815M-K-K9C, Cisco Aironet 1815m Access Point, 2x2 MIMO/867 Mbps/PoE
Request for Quote
In Stock • 10 units

Cisco Aironet Mobility Express 1815m Series, Reg Domain K

View Wireless APs Products

Specifications

NoteRegulatory domain and power may vary by location. See Cisco documentation for detailed local specifications.
ModelAIR-AP1815M-K-K9C
System1 GB DRAM; 256 MB flash; 710 MHz quad-core processor
MountingMounting bracket AIR-AP-BRACKET-8 (included)
SoftwareCisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.5 or later; Cisco Mobility Express
BluetoothIntegrated Bluetooth 4.1 (including BLE); Max transmit power: 4 dBm; Antenna gain: 2 dBi
ComplianceSafety: UL 60950-1, CAN/CSA-C22.2 No. 60950-1, UL 2043, IEC 60950-1, EN 60950-1; Radio: FCC Part 15.247/407, RSS-247, EN 300.328/301.893, ARIB-STD 66/T71, VCCI, EN 301.489-1/-17, EN 50385; IEEE: 802.11a/b/g/n/h/d/ac; Security: 802.11i, WPA2, WPA, 802.1X, AES; EAP types: TLS, TTLS, PEAP, FAST, GTC, SIM; Multimedia: WMM; Other: FCC Bulletin OET-65C, RSS-102
IndicatorsStatus LED for boot loader, association, operation, warnings, and errors
Interfaces1 x 10/100/1000BASE-T RJ-45 (PoE); Management console port (RJ-45)
Power DrawMax draw 13.9 W (with 100 m Category 5 cable)
AccessoriesMounting bracket AIR-AP-BRACKET-8= (spare); Physical security kit AIR-SEC-50= (sold separately), includes security screws, RJ-45 caps, and unlock keys
EnvironmentalOperating: 0–40°C; 10–90% noncondensing; Max altitude: 3,000 m @ 40°C. Nonoperating: –30–70°C; 10–90% noncondensing; Max altitude: 4,500 m @ 25°C
Ethernet PortsAuthentication with 802.1X or MAC filter; Dynamic VLAN or per port; Supports traffic local switching or tunneling to wireless LAN controller
Maximum Clients200 per Wi-Fi radio, 400 total per access point
Powering Options802.3af/at Ethernet switch; Optional Cisco power injectors (AIR-PWRINJ5=, AIR-PWRINJ6=)
802.11ac Features2x2 single-user/multiuser MIMO, two spatial streams; MRC; 20/40/80 MHz channel support; Data rates up to 866.7 Mbps (80 MHz on 5 GHz); A-MPDU (Tx/Rx), A-MSDU (Rx); 802.11 DFS; CSD support
Physical SecurityTorx security screw (included)
Integrated Antennas2.4 GHz: 2 dBi; 5 GHz: 4 dBi
Data Rates Supported802.11a: 6–54 Mbps; 802.11b/g: 1–54 Mbps; 802.11n on 2.4 GHz: up to 144.4 Mbps (20 MHz GI=400 ns); 802.11ac on 5 GHz: up to 866.7 Mbps (80 MHz GI=400 ns)
Dimensions (W x L x H)6 x 6 x 1.3 in. (150.8 x 150.8 x 33 mm) without mounting bracket
Transmit Power Settings2.4 GHz: up to 27 dBm (500 mW); 5 GHz: up to 24 dBm (250 mW). Power settings vary by channel and country.
Input Power Requirements802.3af or 802.3at PoE
Supported WLAN ControllersCisco 2500, 3500, 5500, 7500, 8500, 9800 Series Controllers; Wireless Controller Module for ISR G2; Wireless Services Module 2 (WiSM2) for Catalyst 6500; Cisco Mobility Express
Authentication and SecurityAdvanced Encryption Standard (AES) for WPA2; 802.1X, RADIUS authentication, authorization, and accounting (AAA); 802.11r; 802.11i
Warranty3-Year Warranty

Key Features

  • OEM Genuine Component verified by certified technicians.
  • Clean serial number ready for service contract registration.
  • Electrostatic Discharge (ESD) safe packaging.
  • Supports hot-swapping for zero-downtime maintenance.

Frequently Asked Questions

Is this product genuine OEM?

Yes, this AIR-AP1815M-K-K9C, Cisco Aironet 1815m Access Point, 2x2 MIMO/867 Mbps/PoE (AIR-AP1815M-K-K9C) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.

What warranty is included?

This AIR-AP1815M-K-K9C, Cisco Aironet 1815m Access Point, 2x2 MIMO/867 Mbps/PoE includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.

How long does shipping take?

We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.

Can I return this product?

Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.

Is the AIR-AP1815M-K-K9C, Cisco Aironet 1815m Access Point, 2x2 MIMO/867 Mbps/PoE compatible with my system?

Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AIR-AP1815M-K-K9C.
