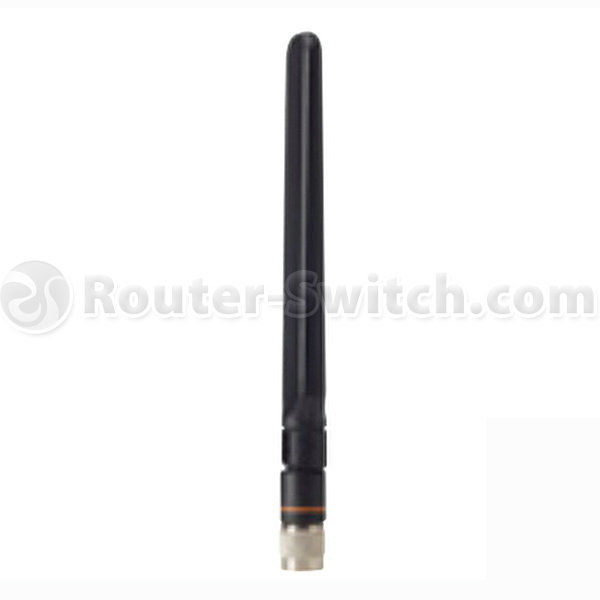

AIR-ANT2524DB-R, Cisco Antenna, 2.4GHz 2dBi/5GHz 4dBi/RP-TNC
Brand: Cisco · SKU: AIR-ANT2524DB-R · MPN: AIR-ANT2524DB-R · Category: Components
Cisco AIR-ANT2524DB-R 2.4 GHz 2 dBi/5 GHz 4 dBi Dipole Ant., Blk, RP-TNC
Specifications
| VSWR | Less than 2:1 |
|---|---|
| Model | AIR-ANT2524DB-R |
| Weight | kg |
| Environment | Indoor, office |
| Antenna Type | Dual-band dipole |
| Designed For | Cisco Aironet 2702e Controller-based, 3602E |
| Intended For | Wi-Fi |
| Antenna Width | 0.83 in (21 mm) |
| Compatibility | 802.11n |
| Radome Length | 4.88 in (124 mm) |
| Antenna Length | 6.63 in (168.5 mm) |
| Connector Type | RP-TNC plug |
| Enclosure Color | Black |
| Frequency Range | 2.4 GHz, 5 GHz |
| Peak Gain @ 5 GHz | 4 dBi |
| Peak Gain @ 2.4 GHz | 2 dBi |
| Storage Temperature | -40°F to 185°F (-40°C to 85°C) |
| Operating Temperature | -4°F to 140°F (-20°C to 60°C) |
| Weight (original spec) | 1.3 oz |
| Nominal Input Impedance | 50 Ohms |
| Operating Frequency Range | 2400 to 2500 MHz; 5150 to 5850 MHz |
| Elevation Plane 3 dB Beamwidth @ 5 GHz | 39 degrees |
| Elevation Plane 3 dB Beamwidth @ 2.4 GHz | 63 degrees |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this AIR-ANT2524DB-R, Cisco Antenna, 2.4GHz 2dBi/5GHz 4dBi/RP-TNC (AIR-ANT2524DB-R) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This AIR-ANT2524DB-R, Cisco Antenna, 2.4GHz 2dBi/5GHz 4dBi/RP-TNC includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the AIR-ANT2524DB-R, Cisco Antenna, 2.4GHz 2dBi/5GHz 4dBi/RP-TNC compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AIR-ANT2524DB-R.
