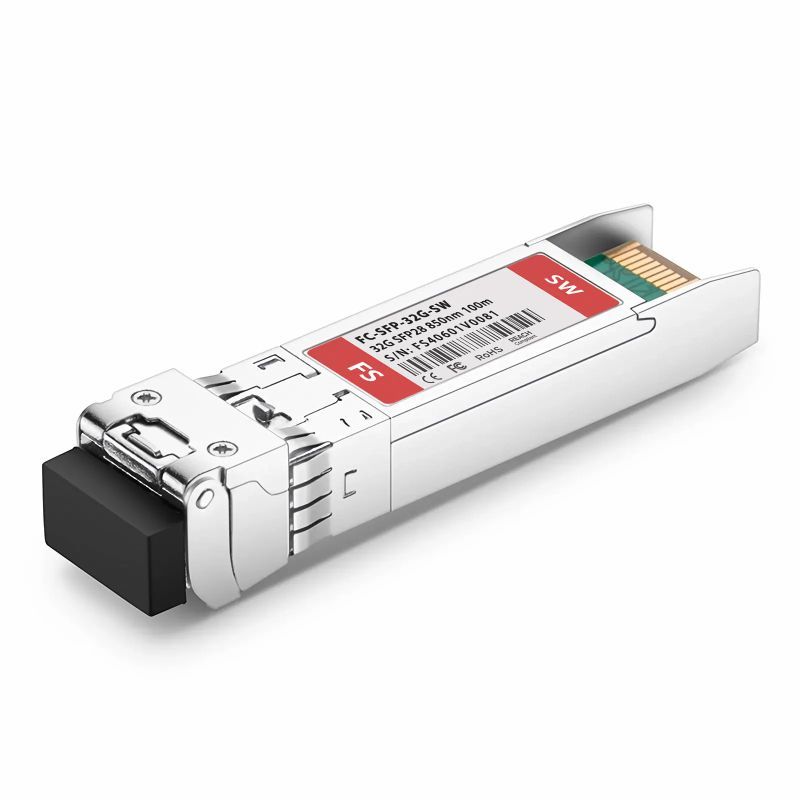

32G SFP28 Multi-Rate 850nm Transceiver for Multimode Optical Fiber
Brand: Avago / Broadcom (or compatible) · SKU: AFBR-57G5MZ-ELX · MPN: AFBR-57G5MZ-ELX · Category: Networking
The AFBR-57G5MZ-ELX is a multi-rate 850nm transceiver which ensures compliance with FC-PI-6 32GFC, 16GFC and 8GFC specifications. It supports high-speed serial links over multimode optical fiber at signaling rates up to 28.05 Gb/s (the serial line rate of 32GFC). The product is compliant with Small Form Pluggable industry agreements SFP and SFP28 for mechanical and low-speed electrical specifications. High-speed electrical and optical specifications are compliant with ANSI Fibre Channel FC-PI-6. Internal Clock and Data Recovery (CDR) circuits are present on both electrical input and electrical output, which lock at 28.05 Gb/s and 14.025Gb/s (32GFC and 16GFC) but must be bypassed for 8GFC operation (8.5 Gb/s) via two Rate Select inputs. Digital diagnostic monitoring information (DMI) is present per SFF-8472. Compatible third-party versions often list a maximum distance of 100m over OM3/OM4 fiber for 32GFC, and some sources list up to 300m. It features a VCSEL laser and an LC duplex conn
Specifications
| Data Rate | 32Gbps, 16Gbps, 8Gbps (Multi-rate) |
|---|---|
| Compliance | FC-PI-6, SFF-8472, SFF-8432 |
| Laser Type | VCSEL |
| Media Type | Multi-Mode Fiber (MMF) |
| Wavelength | 850 nm |
| Form Factor | SFP28 |
| Connector Type | LC Duplex |
| Operating Temperature | 0°C to 70°C |
| Warranty | Manufacturer warranty varies; compatible versions may offer lifetime replacement. |
| Weight | 20g (compatible version estimate) |
| Dimensions | SFP28 mechanical specifications per SFF-8432 |
Key Features
Multi-rate SFP28 transceiver supporting 32GFC, 16GFC, and 8GFC compliant links over multimode fiber. Features integrated CDRs for high-speed operation and Digital Diagnostic Monitoring (DDM/DOM).
Frequently Asked Questions
Is this product genuine OEM?
Yes, this 32G SFP28 Multi-Rate 850nm Transceiver for Multimode Optical Fiber (AFBR-57G5MZ-ELX) is 100% genuine Avago / Broadcom (or compatible) hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This 32G SFP28 Multi-Rate 850nm Transceiver for Multimode Optical Fiber includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the 32G SFP28 Multi-Rate 850nm Transceiver for Multimode Optical Fiber compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AFBR-57G5MZ-ELX.
