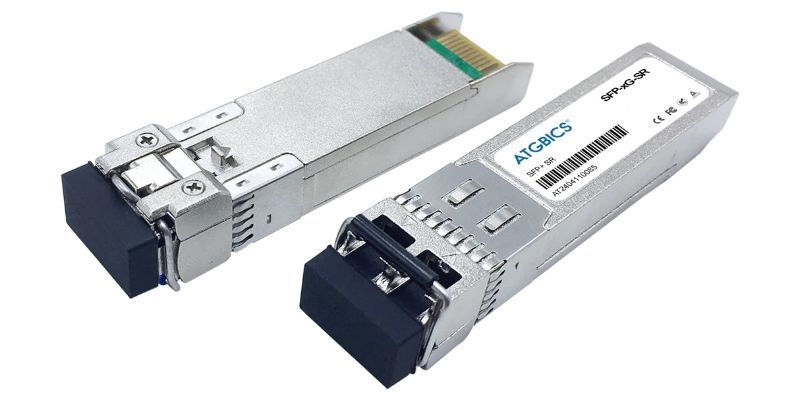

AFBR-57D7APZ-NA1 Avago Broadcom Compatible Transceiver SFP+
Brand: Avago / Broadcom Compatible (ATGBICS) · SKU: AFBR-57D7APZ-NA1 · MPN: AFBR-57D7APZ-NA1 · Category: Networking
The AFBR-57D7APZ-NA1 is a compatible SFP+ transceiver designed to meet the specifications of the Avago/Broadcom AFBR-57D7APZ. It is an 850nm Multi-Mode Fiber (MMF) transceiver supporting multi-rates of 8.5/4.25/2.125 GBd Fibre Channel (FC-PI-4, FC-PI-2). It is compliant with SFP and SFP+ mechanical and low-speed electrical specifications, and SFF-8472 for digital diagnostics. Key features include operating at 850nm wavelength, an LC Duplex connector, Digital Optical Monitoring (DOM) support, and operation within an extended temperature range (-10°C to 85°C). It supports link lengths up to 300m over OM3 MMF.
Specifications
| Reach | Up to 300m (OM3) |
|---|---|
| Data Rate | 8.5/4.25/2.125 GBd |
| Compliance | MSA, IEEE Standards & Protocols, RoHS, REACH |
| Media Type | Multimode Fiber (MMF) |
| Wavelength | 850nm |
| Form Factor | SFP+ |
| Connector Type | LC Duplex |
| Operating Temperature Range | -10°C to 85°C (Extended Temp) |
| Digital Optical Monitoring (DOM) | Yes |
| Warranty | Lifetime Replacement (for ATGBICS compatible version) |
| Weight | 20g |
| Dimensions | 8.5 x 13.4 x 56.5mm |
Key Features
The AFBR-57D7APZ-NA1 is a compatible SFP+ transceiver that ensures compliance to 8.5/4.25/2.125 GBd Fibre Channel specifications without the need for Rate Select. It provides real-time monitoring of key transceiver parameters via the SFF-8472 compliant 2-wire serial interface. It is designed for high-speed serial links over multimode optical fiber.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this AFBR-57D7APZ-NA1 Avago Broadcom Compatible Transceiver SFP+ (AFBR-57D7APZ-NA1) is 100% genuine Avago / Broadcom Compatible (ATGBICS) hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This AFBR-57D7APZ-NA1 Avago Broadcom Compatible Transceiver SFP+ includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the AFBR-57D7APZ-NA1 Avago Broadcom Compatible Transceiver SFP+ compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AFBR-57D7APZ-NA1.
