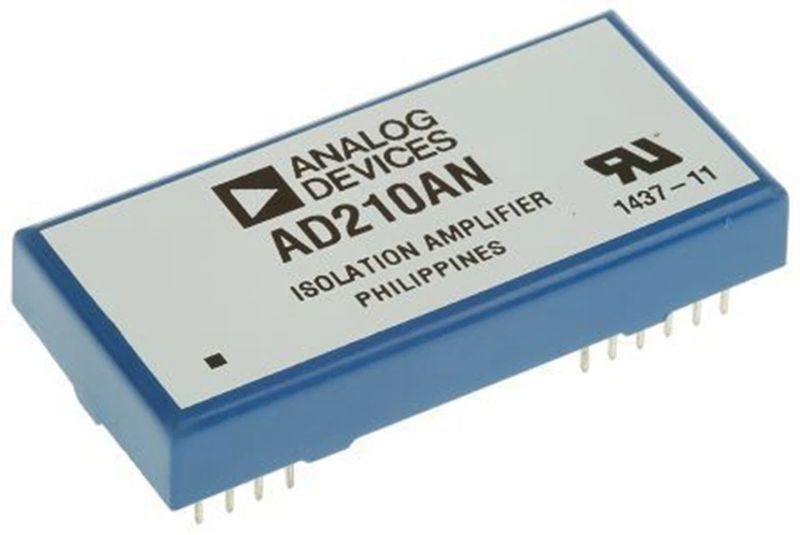

AD210AN Isolation Amplifier
Brand: Analog Devices Inc. · SKU: AD210AN · MPN: AD210AN · Category: Components
The AD210AN is a single-circuit isolation amplifier from Analog Devices, housed in a 12-PDIP package, designed for through-hole mounting. It is a precision, wide bandwidth, three-port isolation amplifier providing signal and power isolation via transformer coupling. Key specifications include a -3dB bandwidth of 20 kHz, a slew rate of 1V/µs, an input bias current of 30 pA, and an output current of 5 mA per channel. It operates with a supply voltage span from 14.25 V to 15.75 V, drawing 50 mA of supply current, and has an input offset voltage of 15 mV. The operating temperature range is -25°C to 85°C. It offers high common-mode isolation of 2500 V rms (Continuous) and a high CMRR of 120 dB (at G = 100 V/V). The device is generally considered obsolete and is RoHS non-compliant. It is suitable for applications in industrial control systems, medical instrumentation, and multichannel data acquisition.
Specifications
| CMRR | 120 dB |
|---|---|
| Slew Rate | 1V/µs |
| 3dB Bandwidth | 20 kHz |
| Mounting Type | Through Hole |
| Amplifier Type | Isolation |
| Package / Case | 38-DIP (0.800", 20.32mm), 12 Leads |
| Current - Supply | 50mA |
| Isolation Voltage | 2500 Vrms |
| Number of Circuits | 1 |
| Current - Input Bias | 30 pA |
| Operating Temperature | -25°C ~ 85°C |
| Voltage - Input Offset | 15 mV |
| Supply Voltage Span (Max) | 15.75 V |
| Supply Voltage Span (Min) | 14.25 V |
| Current - Output / Channel | 5 mA |
| Warranty | N/A (Obsolete product) |
| Weight | 1.631985 oz |
| Dimensions | 1.00" x 2.10" x 0.350" (Package dimensions) |
Key Features
The AD210AN is a single-circuit isolation amplifier featuring a 20 kHz bandwidth, 1V/µs slew rate, and 2500 V rms isolation. It is designed for high-accuracy signal integrity in systems where ground loops and noise are a concern, making it suitable for industrial and medical applications. It requires dual supply rails within the 14.25V to 15.75V range.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this AD210AN Isolation Amplifier (AD210AN) is 100% genuine Analog Devices Inc. hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This AD210AN Isolation Amplifier includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the AD210AN Isolation Amplifier compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AD210AN.
