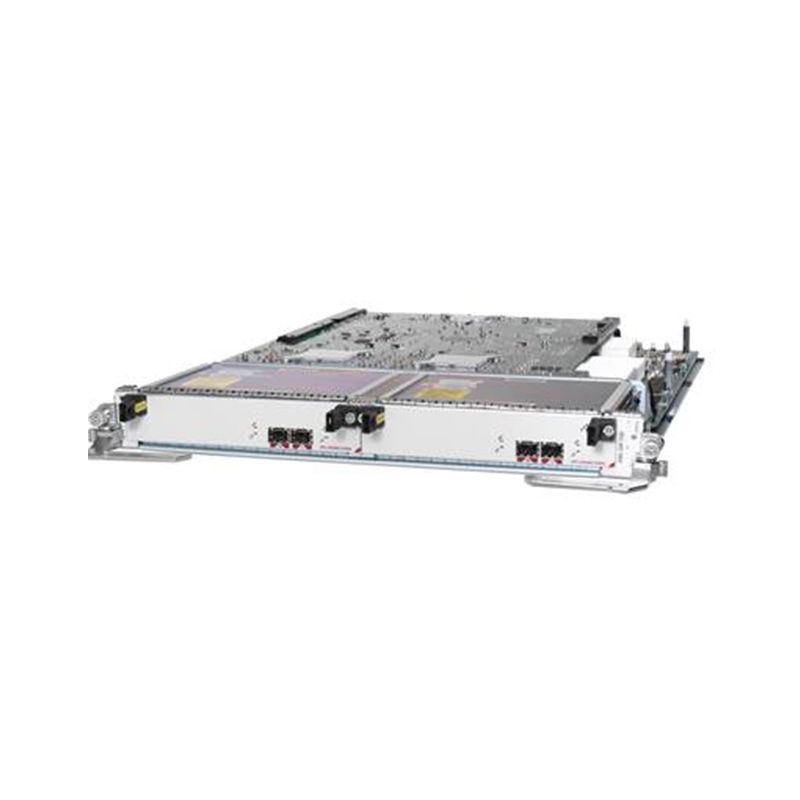

A9K-SIP-700, Cisco ASR 9000 SPA Interface Processor, High-density SPA, 700Gbps throughput, ASR 9000 series
Brand: Cisco · SKU: A9K-SIP-700 · MPN: A9K-SIP-700 · Category: Components
Cisco ASR 9000 Interface A9K-SIP-700 Cisco ASR 9000 Series SPA Interface Processor-700
Specifications
| MIBs | Support for multiple hardware, product-specific, and software feature MIBs, including: ENTITY-MIB, CISCO-ENTITY-SENSOR-MIB, CISCO-ENTITY-ASSET-MIB, CISCO-ENTITY-FRU-CONTROL-MIB, IF-MIB, DS1-MIB, SONET-MIB, CISCO-SONET-MIB, BFD-MIB |
|---|---|
| Model | A9K-SIP-700 |
| Power | 375 W (maximum) |
| Weight | kg |
| Density | Up to 4 single-height SPAs or up to 2 double-height SPAs or a combination of the two (subject to restrictions) |
| Manageability | Cisco IOS XR Software with modular CLI, SNMP, and native XML interfaces; Cisco Active Network Abstraction (ANA) for multi-technology, multiservice networks, dynamically discovering and tracking network components; provides simplified OSS integration, a common infrastructure for managing network resources, and consistent procedures and interfaces for all network elements |
| Synchronization | Derives and provides synchronization to and from SONET/SDH interfaces; interworks with Synchronous Ethernet (SyncE) on Ethernet interfaces and network synchronization interfaces on the Cisco ASR 9000 Route Switch Processor (RSP) |
| Operating altitude | −60 to 4000 m (up to 2000 m conforms to IEC, EN, UL, and CSA 60950 requirements) |
| Storage temperature | −40 to 158 °F (−40 to 70 °C) |
| Chassis compatibility | All Cisco ASR 9000 Series chassis |
| Interface capabilities | A9K-SIP-700 supports the following SPA interface types: CHT1/E1, CT3/DS0, T3/E3, OC3/STM1, ChOC3/ChSTM1, OC12/STM4, ChOC12/ChSTM4, OC48/STM16, ChOC48/ChSTM16, OC192/STM64 |
| Software compatibility | Cisco IOS XR Software Release 3.9 or later |
| Storage humidity (relative) | 5 to 95% (not to exceed 0.024 kg water per kg of dry air) |
| Operating temperature (nominal) | 41 to 104 °F (5 to 40 °C) |
| Routing and service capabilities | IPv4 and IPv6 routing with support for: BGP, IS-IS, OSPF, Route Policy Language (RPL), BGP Prefix Independent Convergence (PIC), MPLS, MVPN, 6PE, 6vPE, Traffic Engineering Fast Re-Route (TE-FRR), L3VPN services, Packet over SONET, Packet over SDH, Frame Relay PPP, HDLC, MLPPP, MLFR, LFI, IPHC, Link Noise Monitoring (LNM), Any Transport over MPLS (AToM), full NetFlow |
| Physical dimensions (H × W × D) | 14 × 1.72 × 20.5 in. |
| Reliability and high availability | Online Insertion and Removal (OIR) without affecting system traffic; Multi-Router Automatic Protection Service (MR-APS) with Protect Group Protocol (PGP) and SONET APS signaling for protection against hardware and software faults; Inter-Chassis Stateful Switchover (IC-SSO) for PPP integrating MR-APS, IP Fast Reroute (FRR), and Simple Server Redundancy Protocol (SSRP) for fast PPP switchover; Bi-directional Forwarding Detection (BFD) for rapid failure detection with low overhead across protocol layers and media types |
| Operating temperature (short-term) | 23 to 131 °F (−5 to 55 °C) |
| Operating humidity (nominal, relative) | 10 to 85% |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this A9K-SIP-700, Cisco ASR 9000 SPA Interface Processor, High-density SPA, 700Gbps throughput, ASR 9000 series (A9K-SIP-700) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This A9K-SIP-700, Cisco ASR 9000 SPA Interface Processor, High-density SPA, 700Gbps throughput, ASR 9000 series includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the A9K-SIP-700, Cisco ASR 9000 SPA Interface Processor, High-density SPA, 700Gbps throughput, ASR 9000 series compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the A9K-SIP-700.
