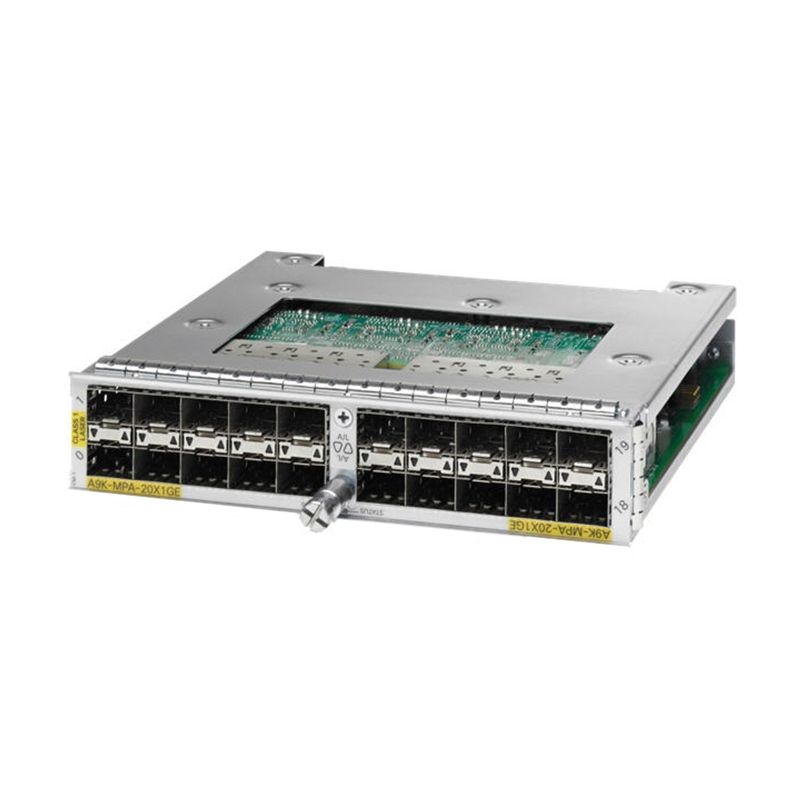

A9K-MPA-20x1GE, Cisco ASR 9000 Router Modular Port Adapter, 20x1GE ports/Hot-swappable/Modular design
Brand: Cisco · SKU: A9K-MPA-20x1GE · MPN: A9K-MPA-20x1GE · Category: Networking
ASR 9000 20-port 1-Gigabit Ethernet Modular Port Adapter, requires SFP optics
Specifications
| Type | Cisco ASR 9000 20-port 1GE Modular Port Adapter |
|---|---|
| Model | A9K-MPA-20X1GE |
| Weight | kg |
| Card Density | Maximum line cards per system: Cisco ASR 9922: 20; Cisco ASR 9010: 8; Cisco ASR 9006: 4 |
| Port Density | Up to 2 modular port adapters supported per line card |
| Product Type | Cisco ASR 9000 20-port 1GE Modular Port Adapter |
| EMC Standards | FCC Class A; ICES 003 Class A; AS/NZS 3548 Class A; CISPR 22 (EN 55022) Class A; VCCI Class A; BSMI Class A; IEC/EN 61000-3-2 Power Line Harmonics; IEC/EN 61000-3-3 Voltage Fluctuations and Flicker |
| ETSI Standards | EN 300 386 Telecommunications Network Equipment (EMC); ETSI 300 019 Storage Class 1.1; ETSI 300 019 Transportation Class 2.3; ETSI 300 019 Stationary Use Class 3.1; EN 55022 Information Technology Equipment (Emissions); EN 55024 Information Technology Equipment (Immunity); EN 50082-1 / EN 61000-6-1 Generic Immunity Standard |
| Safety Standards | UL/CSA/IEC/EN 60950-1; IEC/EN 60825 Laser Safety; ACA TS001; AS/NZS 60950; FDA Code of Federal Regulations Laser Safety |
| Ethernet Features | IEEE 802.3 compliant; 10 Gigabit Ethernet PHY monitoring; IEEE 802.x flow control; full-duplex operation; per-port byte and packet counters for policy drops, oversubscription drops, CRC error drops, packet sizes, and unicast, multicast, and broadcast packets |
| Line Card Options | Service Edge Optimized (enhanced QoS) or Packet Transport Optimized (basic QoS) line cards |
| Immunity Standards | IEC/EN 61000-4-2 Electrostatic Discharge Immunity (8 kV contact, 15 kV air); IEC/EN 61000-4-3 Radiated Immunity (10 V/m); IEC/EN 61000-4-4 Electrical Fast Transient Immunity (2 kV power, 1 kV signal); IEC/EN 61000-4-5 Surge AC Port (4 kV CM, 2 kV DM); IEC/EN 61000-4-5 Signal Ports (1 kV); IEC/EN 61000-4-5 Surge DC Port (1 kV); IEC/EN 61000-4-6 Immunity to Conducted Disturbances (10 V rms); IEC/EN 61000-4-8 Power Frequency Magnetic Field Immunity (30 A/m); IEC/EN 61000-4-11 Voltage dips, short interruptions, and voltage variations |
| Operating Altitude | -60 to 4000 m (up to 2000 m conforms to IEC, EN, UL, and CSA 60950 requirements) |
| Physical Dimensions | 6.37 W x 1.36 H x 6.70 L in; 6.37 W x 1.36 H x 8.30 L in (including jackscrew) |
| Storage Temperature | -40 to 70 °C (-40 to 158 °F) |
| Chassis Compatibility | Compatible with Cisco ASR 9922, ASR 9010, ASR 9006 and ASR 9001 systems |
| Storage Relative Humidity | 5% to 95% relative humidity, not to exceed 0.024 kg of water per kg of dry air |
| Operating Humidity (Nominal) | 10% to 85% relative humidity |
| Reliability and Availability | Line card online insertion and removal (OIR) support without system impact |
| Operating Temperature (Nominal) | 5 to 40 °C (41 to 104 °F) |
| Operating Temperature (Short-Term) | -5 to 55 °C (23 to 131 °F) |
| Weight (from original specification) | 34 oz. (0.96 kg) |
| Network Equipment Building Standards (NEBS) | Designed to meet SR-3580 NEBS Criteria Levels (Level 3); GR-1089-CORE NEBS EMC and Safety; GR-63-CORE NEBS Physical Protection |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this A9K-MPA-20x1GE, Cisco ASR 9000 Router Modular Port Adapter, 20x1GE ports/Hot-swappable/Modular design (A9K-MPA-20x1GE) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This A9K-MPA-20x1GE, Cisco ASR 9000 Router Modular Port Adapter, 20x1GE ports/Hot-swappable/Modular design includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the A9K-MPA-20x1GE, Cisco ASR 9000 Router Modular Port Adapter, 20x1GE ports/Hot-swappable/Modular design compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the A9K-MPA-20x1GE.
