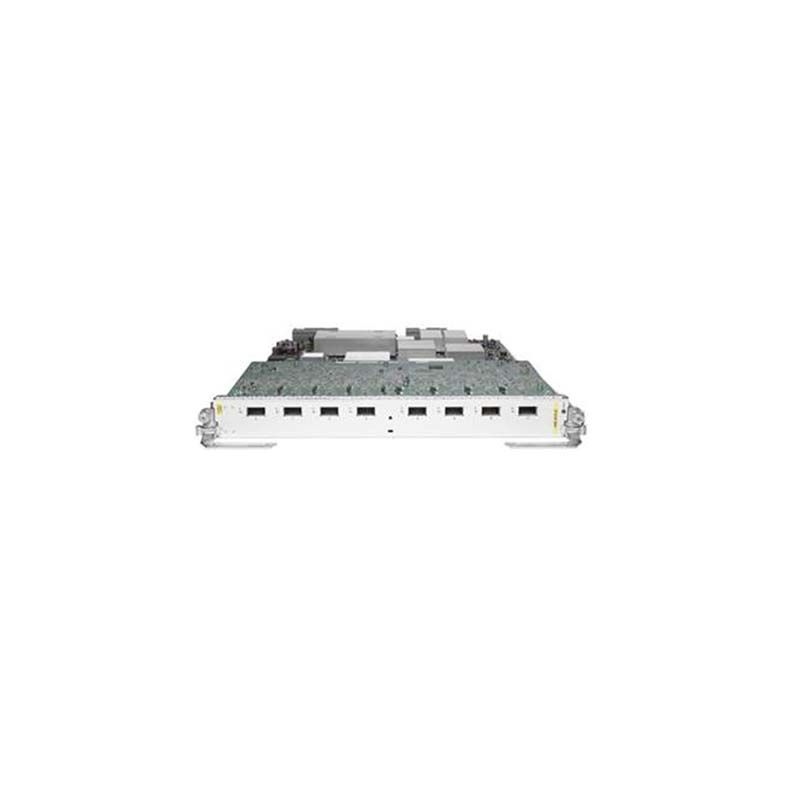

A9K-8T/4-E, Cisco ASR 9000 Line Card, 8x10GE/Extended/Needs XFPs
Brand: Cisco · SKU: A9K-8T/4-E · MPN: A9K-8T/4-E · Category: Components
$65,253.76
In Stock • 10 units
Cisco ASR 9000 Line Card A9K-8T/4-E 8-Port 10GE DX Extended Line Card, Requires XFPs
Specifications
| OA&M | Ethernet OAM (IEEE 802.3ah): Provides physical-link OAM to monitor link health and assist in fault isolation and rapid link-failure detection. EOAM (IEEE 802.1ag): Ethernet Connectivity Fault Management (E-CFM) for discovery and verification of paths through 802.1 bridges and LANs. EOAM (ITU-T Y.1731): Fault Management builds on 802.1ag for fault verification and troubleshooting; Performance Monitoring measures delay, latency, and loss to support Ethernet SLAs. Ethernet LMI (E-LMI): Protocol between CE and PE on the UNI link to notify CE of connectivity status and Ethernet service configuration. MPLS OAM: Supports LSP ping, LSP traceroute, and VCCV. |
|---|---|
| Model | A9K-8T/4-E |
| Memory | 4 GB DRAM |
| Weight | kg |
| Options | Available as low queue, base, or extended line card options. |
| Security | Cisco IOS XR security: Access control lists (ACLs), control-plane protection, routing authentication, AAA and TACACS+, SSH, SNMPv3, and RPL-based policy control. Layer 2 ACLs: Filters packets under an EVC based on MAC addresses. Layer 3 ACLs: Matches IPv4 packets on Layer 3 attributes. Additional security: 802.1ad L2CP and BPDU filtering, MAC limiting per EFP or bridge domain, unicast/multicast/broadcast storm control on any port, Unknown Unicast Flood Blocking (UUFB), DHCP snooping, URPF, control-plane security, Dynamic ARP Inspection (DAI), and IP Source Guard (IPSG). |
| Multicast | IPv4 Multicast: Supports IGMPv2, IGMPv3, PIM-SSM, PIM-SM, PIM SSM Mapping, MSDP, Multicast VPN, and Anycast RP. IGMP v2 and v3 snooping: Layer 2 mechanism to track multicast membership at VLAN or pseudowire level, summarizing joins upstream and sending only watched channels downstream, ideal for residential broadband IPTV deployments. |
| MPLS L3VPN | MPLS L3VPN: Provides scalable IPv4 Layer 3 VPN backbone services for value-added services such as applications, hosting, e-commerce, and telephony. Carrier Supporting Carrier (CSC): Allows an MPLS VPN provider to interconnect isolated sites over another provider’s backbone while keeping private VPN address spaces, as per IETF RFC 4364. Selective VRF Download: Downloads VRF FIB entries only to line cards with VRF membership, increasing chassis FIB scale and avoiding unnecessary entries. 6PE and 6VPE: Introduces IPv6 from the edge over an IPv4/MPLS backbone without IPv6 addressing restrictions or impact on the existing IPv4 core. |
| Part Number | A9K-8T/4-E |
| Connectivity | 10 Mbps, 100 Mbps, 1 Gbps, and 10 Gbps IEEE 802.3 Ethernet |
| EMC Standards | Designed to meet FCC Class A, ICES-003 Class A, AS/NZS 3548 Class A, CISPR 22 (EN 55022) Class A, VCCI Class A, BSMI Class A, IEC/EN 61000-3-2 Power Line Harmonics, IEC/EN 61000-3-3 Voltage Fluctuations and Flicker, and EN 50121-4 Railway EMC. |
| Manageability | Cisco IOS XR manageability: Provides CLI, SNMP, CDP, LLDP, and native XML interfaces. Smart Call Home (SCH): Proactive support that identifies and reports problems before they affect services for faster troubleshooting. Cisco Active Network Abstraction (ANA): Vendor-neutral management framework that discovers network components, tracks status in near real time, and aggregates VNEs into a virtual network, simplifying OSS integration, providing a common management infrastructure, and consistent procedures and interfaces for all network elements. |
| ETSI Standards | Designed to meet EN 300 386 (Telecommunications Network Equipment EMC), ETSI 300 019 Storage Class 1.1, ETSI 300 019 Transportation Class 2.3, ETSI 300 019 Stationary Use Class 3.1, EN 55022 (ITE Emissions), EN 55024 (ITE Immunity), and EN 50082-1/EN 61000-6-1 Generic Immunity Standard. |
| L2VPN Services | Virtual Private LAN Services (VPLS): Connects multiple sites in a single bridged domain over a managed IP/MPLS network, presents an Ethernet interface, and decouples service bandwidth from the physical interface. Hierarchical VPLS (HVPLS): Adds hierarchy at the VPLS edge for scale, supporting QinQ access and Ethernet over MPLS (pseudowire) access. Virtual Private Wire Service (VPWS) with EoMPLS: Transports Ethernet frames across an MPLS core using pseudowires for individual EFPs or entire ports. Pseudowire redundancy: Allows backup pseudowires to protect primary pseudowires. G.8032: Sub-50 ms protection for Ethernet traffic in ring topologies, compliant with ITU-T G.8032 v2 on Cisco ASR 9000 Series. Multisegment pseudowire stitching: Interworks two pseudowires to form a cross-connect. |
| Layer 3 Routing | IPv4 routing: Supports BGP, IS-IS, OSPF, RIP, static routes, IPv4 Multicast, Routing Policy Language (RPL), HSRP, and VRRP. IPv6 routing: Supports OSPFv3, IS-IS, VRRPv6, DHCPv6 relay, and static routing. BGP Prefix Independent Convergence (PIC): Enables fast convergence of BGP routes using IOS XR convergence mechanisms. |
| Safety Standards | Designed to meet UL/CSA/IEC/EN 60950-1, IEC/EN 60825 Laser Safety, ACA TS001, AS/NZS 60950, and FDA Code of Federal Regulations Laser Safety. |
| Storage Humidity | 5 to 95% relative humidity (not to exceed 0.024 kg water per 1 kg of dry air) |
| High Availability | MPLS TE-FRR: Provides Layer 3 protection switching and temporary rerouting around failed links, nodes, or paths for MPLS LSPs. Bidirectional Forwarding Detection (BFD): Fast forwarding-path failure detection for all media, encapsulations, topologies, and routing protocols. 802.3ad Link Aggregation Bundles: Multiple links bundled for resiliency and load balancing. Multichassis Link Aggregation Group (MC-LAG): 802.3ad bundle across a pair of Cisco ASR 9000 routers appearing as a single router to the attached device, enabling rapid restoration for business L2VPN, L3VPN, residential backhaul, mobile aggregation, and service provider edge. |
| Power Consumption | Maximum 350–630 W (depending on card type); typical 310–565 W (depending on card type) |
| Immunity Standards | Designed to meet IEC/EN 61000-4-2 Electrostatic Discharge Immunity (8 kV contact, 15 kV air), IEC/EN 61000-4-3 Radiated Immunity (10 V/m), IEC/EN 61000-4-4 Electrical Fast Transient Immunity (2 kV power, 1 kV signal), IEC/EN 61000-4-5 Surge AC Port (4 kV CM, 2 kV DM), IEC/EN 61000-4-5 Surge Signal Ports (1 kV), IEC/EN 61000-4-5 Surge DC Port (1 kV), IEC/EN 61000-4-6 Conducted Disturbances Immunity (10 Vrms), IEC/EN 61000-4-8 Power Frequency Magnetic Field Immunity (30 A/m), IEC/EN 61000-4-11 Voltage dips, short interruptions, and variations, and EN 50121-4 Railway EMC. |
| Operating Altitude | -60 to 4000 m (up to 2000 m conforms to IEC, EN, UL, and CSA 60950 requirements) |
| Product Description | 8-Port 10GE Oversubscribed Extended Line Card, requires XFPs |
| Storage Temperature | -40 to 70 °C (-40 to 158 °F) |
| Flexible Ethernet Services | Ethernet virtual connections (EVCs): EVCs carry traffic for specific service types or end users and can be used with MPLS L2VPNs and native Ethernet switching. Flexible VLAN classification: Single-tagged VLANs, double-tagged VLANs (QinQ and 802.1ad), contiguous VLAN ranges, and noncontiguous VLAN lists mapped into EFPs. IEEE bridging: Native bridging for IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1ah, and QinQ VLAN encapsulation. IEEE 802.1s Multiple Spanning Tree (MST): Extends 802.1w RSTP to multiple spanning trees for fast convergence and load balancing. MST Access Gateway: Provides resilient, fast-convergence aggregation and connectivity to Ethernet-based access rings. |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this A9K-8T/4-E, Cisco ASR 9000 Line Card, 8x10GE/Extended/Needs XFPs (A9K-8T/4-E) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This A9K-8T/4-E, Cisco ASR 9000 Line Card, 8x10GE/Extended/Needs XFPs includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the A9K-8T/4-E, Cisco ASR 9000 Line Card, 8x10GE/Extended/Needs XFPs compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the A9K-8T/4-E.
