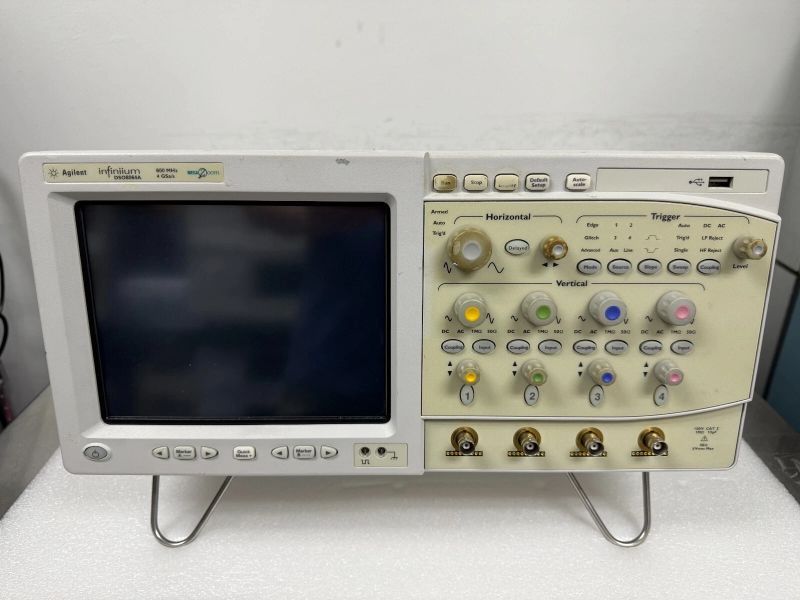

Agilent DSO8064A Infiniium Oscilloscope
Brand: Agilent (Keysight) · SKU: A8064A · MPN: DSO8064A · Category: Components
The Agilent DSO8064A Infiniium Oscilloscope is a 600 MHz, 4-channel scope that offers 4 GSa/s sample rate and up to 128 Mpts of deep memory with MegaZoom technology. It runs on an MS-Windows-based operating system and features extensive software applications, including serial decode capabilities. Connectivity options include LAN, USB, and GPIB, and it is LXI compliant. It supports both 50 Ω and 1 MΩ inputs and ships with four 10073C 10:1 divider passive probes.
Specifications
| Display | 8.4 inch color XGA TFT-LCD with touch screen |
|---|---|
| Channels | 4 Analog |
| Bandwidth | 600 MHz |
| Connectivity | LAN, USB, GPIB, LXI compliant, XGA video |
| Input Impedance | 1 MΩ ± 1% (13 pF typical), 50 Ω ± 1.5% |
| Max Sample Rate | 4 GSa/s (Real time) |
| Max Memory Depth | 128 Mpts (with options) |
| Operating System | Windows XP Pro |
| Vertical Resolution | 8 bits, ≥12 bits with averaging |
| Warranty | 30-day warranty (for used/refurbished units) |
| Weight | 13.9 kg (30.6 lbs) Net; 16.4 kg (36.1 lbs) Shipping |
| Dimensions | Height: 216 mm (8.5 in); width: 437 mm (17.19 in); depth: 440 mm (17.34 in) |
Key Features
The Infiniium DSO8064A provides unmatched acquisition performance with up to 128 Mpts of deep memory mapped to a high-definition display, powered by MegaZoom technology. It is designed to give superior insight into analog, digital, or serial design challenges.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Agilent DSO8064A Infiniium Oscilloscope (A8064A) is 100% genuine Agilent (Keysight) hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Agilent DSO8064A Infiniium Oscilloscope includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Agilent DSO8064A Infiniium Oscilloscope compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the A8064A.
