AMD Alveo SN1000 SmartNIC
Brand: AMD (Xilinx) · SKU: A-SN1022-P4N-PQ · MPN: A-SN1022-P4N-PQ · Category: Components

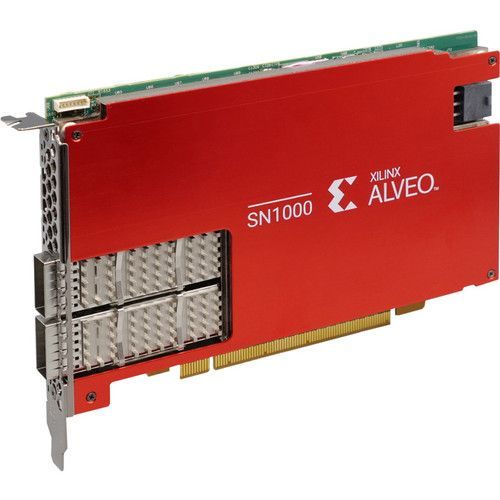

The AMD Alveo SN1000 SmartNIC family offers software-defined hardware acceleration for network, storage, and compute offloads on a single platform. Based on the AMD 16nm UltraScale+™ architecture, they are powered by the low-latency AMD XCU26 FPGA and a 16-core Arm® processor subsystem (NXP Layerscape LX2162A with 16 64-bit Arm Cortex®-A72 cores at 2.0 GHz). They provide 100Gb connectivity with industry-leading small packet performance and low-latency on PCIe Gen 4. Key functions offloaded include Open Virtual Switch (OVS), Virtio, security (IPsec, kTLS, SSL/TLS), and storage acceleration (NVMe™ over TCP, Ceph, compression/crypto). The SN1022 model comes in a Full Height Half Length (FHHL) form factor with two QSFP28 ports and has a maximum electrical power limit of 75W (TDP 70W). The platform supports custom offloads programmed via P4 or High-Level Synthesis (HLS).
Specifications
| FPGA | XCU26 based on Xilinx 16nm UltraScale+ |
|---|---|
| Form Factor | Full Height, Half Length (FHHL) |
| On-board CPU | 16 64-bit Arm Cortex®-A72 cores at 2.0 GHz |
| Maximum Power | 75W (Total Electrical Card Load) |
| PCIe Interface | PCIe Gen 4 x8 or Gen 3 x16 |
| On-board Memory | 1x 4GB x 72 DDR4-2666 (Processor) + FPGA DDR: Two 4 GB DDR4 component interface 72b with ECC operating at 2400 MT/s |
| Network Interface | 2 x 100G QSFP28 (DA copper or optical transceiver support) |
| Warranty | N/A (Standard AMD terms and conditions apply) |
| Weight | N/A |
| Dimensions | Full Height, Half Length (PCIe CEM) |
Key Features
The Alveo SN1000 SmartNICs are designed to offload CPU-intensive tasks for networking, security, and storage acceleration in data centers, utilizing a combination of an AMD XCU26 FPGA and a 16-core Arm processor for software-defined hardware acceleration.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this AMD Alveo SN1000 SmartNIC (A-SN1022-P4N-PQ) is 100% genuine AMD (Xilinx) hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This AMD Alveo SN1000 SmartNIC includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the AMD Alveo SN1000 SmartNIC compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the A-SN1022-P4N-PQ.
