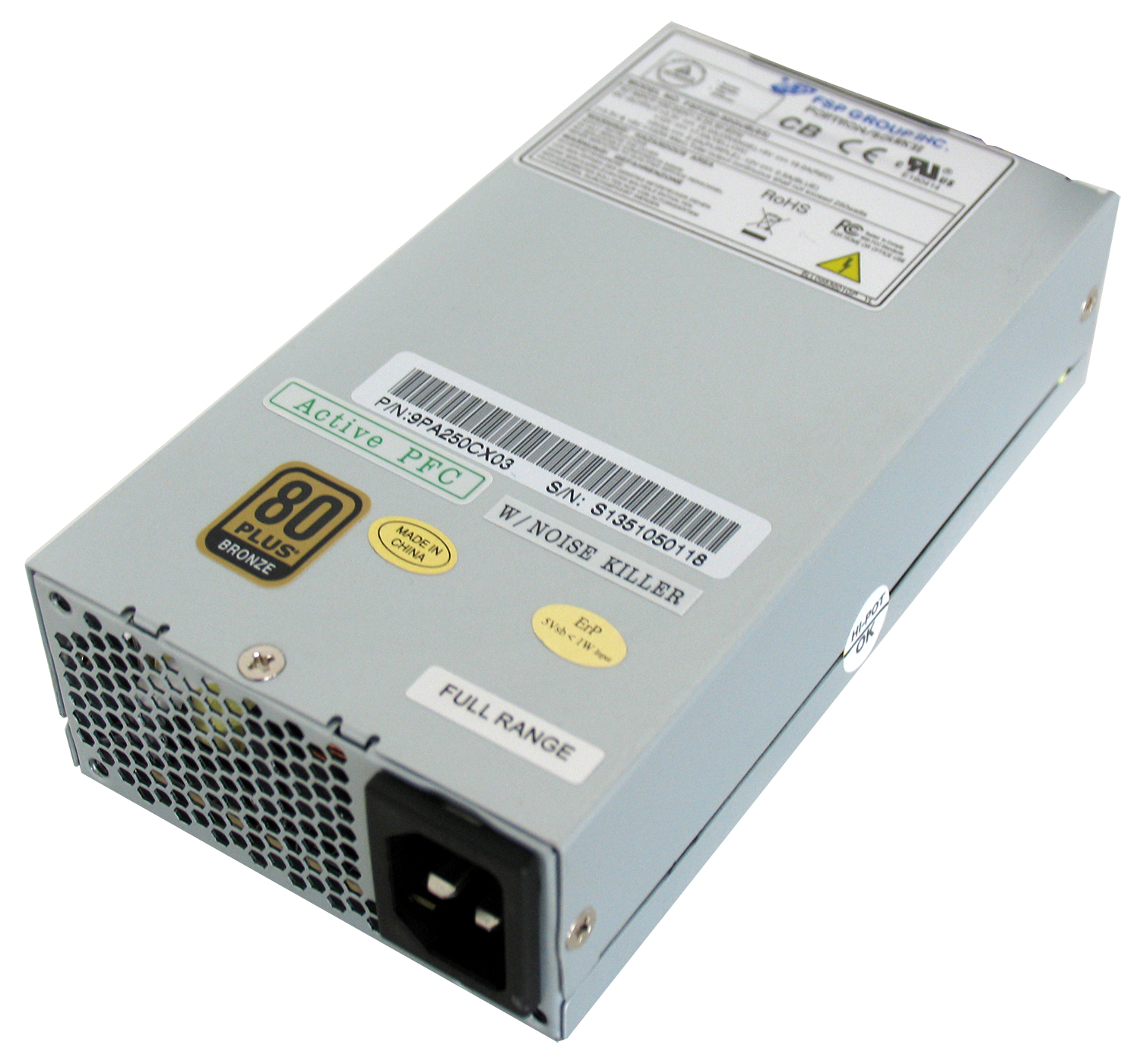

FSP FSP250-50GUB 85+ power supply unit 250 W 24-pin ATX Flex ATX Grey
Brand: FSP · SKU: 9PA250CX03 · MPN: 9PA250CX03 · Category: Components
FSP FSP250-50GUB 85+, 250 W, 90 - 264 V, Active, 59.4 W, 204 W, 90 W
Specifications
| Depth | 150 mm |
|---|---|
| Width | 80 mm |
| Height | 40 mm |
| Weight | 1.29 kg |
| Purpose | PC |
| Hold time | 17 ms |
| Rise time | 20 ms |
| Efficiency | 85% |
| Noise level | 25 dB |
| Total power | 250 W |
| Cabling type | Non-Modular |
| Cooling type | Active |
| Fan diameter | 4 cm |
| Fan location | Side |
| Power factor | 0.9 |
| Number of fans | 1 fan(s) |
| Product colour | Grey |
| AC input voltage | 90 - 264 V |
| Country of origin | China |
| Voltage tolerance | 10% |
| Frequency tolerance | 5% |
| Products per pallet | 768 pc(s) |
| Combined power (+5V) | 90 W |
| 80 PLUS certification | 80 PLUS Bronze |
| Warranty | 3-Year Warranty |
| Weight | 1.29 kg |
| Dimensions | 80 mm x 150 mm x 40 mm |
Product Description
This Flex ATX PSU has a real power rating of 250W (continuous). Due to its small dimensions it is ideally suited for Mini-ITX applications. The small 4x4cm fan has a double ball-bearing to extend its lifetime and it’s located on the inner side to reduce the noise level. GUB series also protects your PC by providing complete protection (OCP, OVP/UVP, OPP and SCP). The 80 PLUS® Bronze certification also meets the Energy Star Version 6.1 Power Supply and Power Management Requirements for Computers: Effective September 10th, 2014.
Key Features
FSP FSP250-50GUB 85+. Total power: 250 W, AC input voltage: 90 - 264 V, Power Factor Correction (PFC) type: Active. Motherboard power connector: 24-pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: Flex ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Grey, Cooling type: Active, Fan diameter: 4 cm. Compliance certificates: RoHS
Frequently Asked Questions
Is this product genuine OEM?
Yes, this FSP FSP250-50GUB 85+ power supply unit 250 W 24-pin ATX Flex ATX Grey (9PA250CX03) is 100% genuine FSP hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This FSP FSP250-50GUB 85+ power supply unit 250 W 24-pin ATX Flex ATX Grey includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the FSP FSP250-50GUB 85+ power supply unit 250 W 24-pin ATX Flex ATX Grey compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 9PA250CX03.
