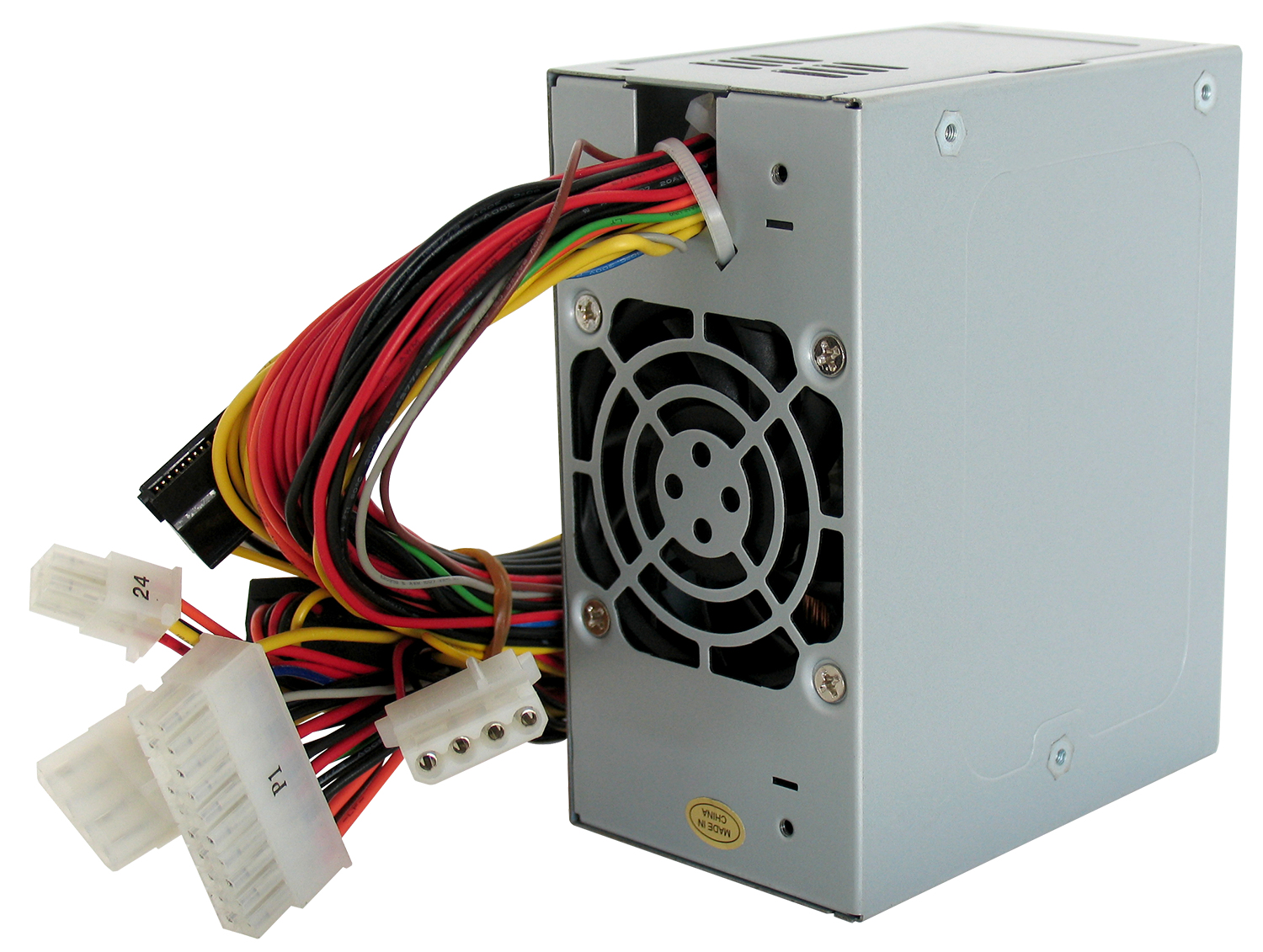

FSP FSP200-50GSV-5K 85+ power supply unit 200 W 20+4 pin ATX SFX Grey

Brand: FSP · SKU: 9PA200A001 · MPN: 9PA200A001 · Category: Components

FSP FSP200-50GSV-5K 85+ power supply unit 200 W 20+4 pin ATX SFX Grey
Request for Quote
Backorder

FSP FSP200-50GSV-5K 85+, 200 W, 90 - 264 V, 47 - 63 Hz, Active, 85 W, 180 W. FSP FSP200-50GSV-5K 85+ power supply unit 200 W 20+4 pin ATX SFX Grey (part number 9PA200A001) is an enterprise power supplies product available from Server Tech Central. Key specifications include depth 100 mm, width 125 mm, height 63.5 mm, purpose PC/Server, efficiency 82%, total power 200 W, cabling type Non-Modular, fan location Side. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.

View Power Supplies Products

Specifications

Depth100 mm
Width125 mm
Height63.5 mm
PurposePC/Server
Efficiency82%
Total power200 W
Cabling typeNon-Modular
Fan locationSide
Number of fans1 fan(s)
Product colourGrey
AC input voltage90 - 264 V
AC input frequency47 - 63 Hz
Combined power (+5V)85 W
80 PLUS certification80 PLUS Bronze
Combined power (+12V)180 W
Combined power (-12V)13.6 W
Combined power (+3.3V)85 W
Combined power (+5Vsb)13.6 W
Compliance certificatesRoHS
CPU P4 connector (4-pin)1
Max output current (+5V)16 A
Max output current (+12V)17 A
Max output current (-12V)0.3 A
Power protection featuresOver current, Over voltage
Warranty3-Year Warranty
Dimensions125 mm x 100 mm x 63.5 mm

Product Description

This SFX form factor PSU has a real power rating of 200W (continuous @ 50°C). It is ideal for small form factor chassis (e.g. Micro-ATX) in which quiet operation is important, since the location of the fan on the inner side reduces the noise level.The 80 PLUS® Bronze certification also meets the Energy Star Version 5.0 Power Supply and Power Management Requirements for Computers: Effective July 1st, 2009.

Key Features

FSP FSP200-50GSV-5K 85+. Total power: 200 W, AC input voltage: 90 - 264 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC/Server, Power supply unit (PSU) form factor: SFX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Grey, Number of fans: 1 fan(s), Fan location: Side. Compliance certificates: RoHS

Frequently Asked Questions

Is this product genuine OEM?

Yes, this FSP FSP200-50GSV-5K 85+ power supply unit 200 W 20+4 pin ATX SFX Grey (9PA200A001) is 100% genuine FSP hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.

What warranty is included?

This FSP FSP200-50GSV-5K 85+ power supply unit 200 W 20+4 pin ATX SFX Grey includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.

How long does shipping take?

We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.

Can I return this product?

Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.

Is the FSP FSP200-50GSV-5K 85+ power supply unit 200 W 20+4 pin ATX SFX Grey compatible with my system?

Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 9PA200A001.
