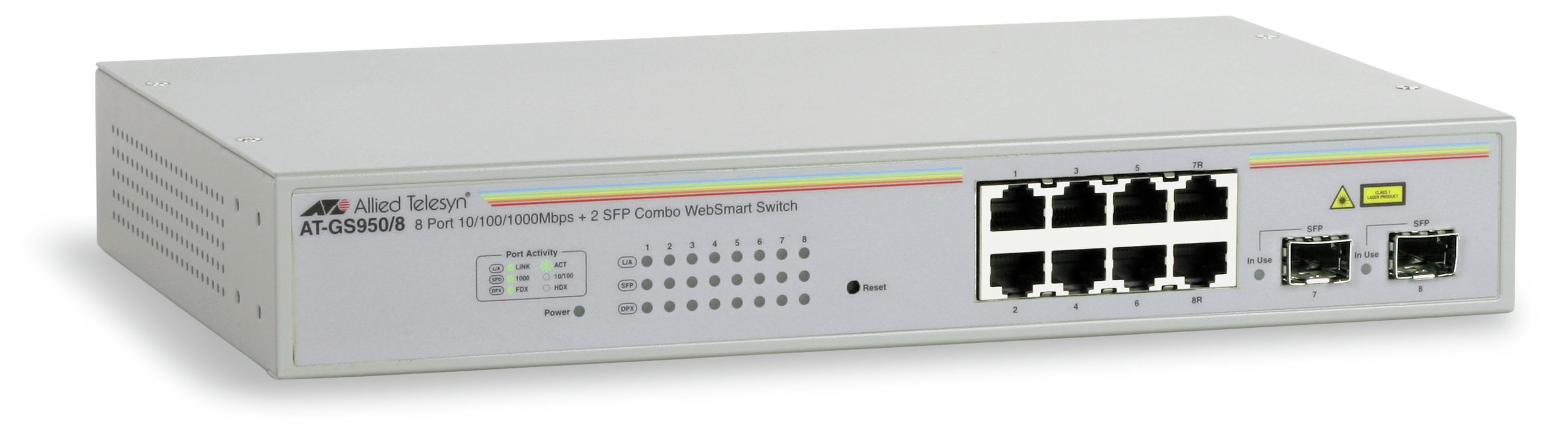

Allied Telesis AT-GS950/8-50 Managed
Brand: Allied Telesis · SKU: 990-003644-50 · MPN: 990-003644-50 · Category: Components
Specifications
| Depth | 180 mm |
|---|---|
| Width | 280 mm |
| Height | 44 mm |
| Weight | 1.5 kg |
| Switch type | Managed |
| Certification | UL 1950 FCC/EN55022 Class B VCCI Class B C-Tick EN60950 (TUV) EN55024 CE |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Security features | 802.1X |
| Dimensions (WxDxH) | 280 x 177 x 44 mm |
| Power requirements | 100-240V AC, 50/60H |
| Flow control support | Yes |
| Packet buffer memory | 0.125 MB |
| Web-based management | Yes |
| SFP/SFP+ slots quantity | 2 |
| Combo SFP ports quantity | 2 |
| Power over Ethernet (PoE) | No |
| Storage temperature (T-T) | -25 - 70 °C |
| Maximum data transfer rate | 1 Gbit/s |
| Harmonized System (HS) code | 85176990 |
| Operating temperature (T-T) | 0 - 40 °C |
| Quality of Service (QoS) support | Yes |
| Operating relative humidity (H-H) | 5 - 90% |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Warranty | 3-Year Warranty |
| Weight | 1.5 kg |
| Dimensions | 280 mm x 180 mm x 44 mm |
Product Description
ECO-Friendly The AT-GS950/8 eco-friendly WebSmar t switch conforms with Allied Telesis‘ commitment to environmentally friendly processes and products. It is designed to minimize power consumption through the use of a high efficiency power supply and a low power chipset. With a low 8.4W typical power consumption, and a reduction in power during after-work hours (overnight mode) – as well as other power saving features included as standard, the Allied Telesis AT-GS950/8 truly lives up to it’s name as an ‘eco- friendly’ switch. Not only does this help the planet by reducing the carbon footprint of each switch, it also lowers the Total Cost of Ownership (TCO) to the user, as the product costs less to run, and has improved reliability. With all of these power saving features, the new eco friendly AT-GS95050/8 saves the user over 25% in power consumption over non eco- friendly models. Performance Allied Telesis’ WebSmar t switch integrates the simplicity of unmanaged switches with the performance and reliability of managed switches to provide a cost-effective solution for users to integrate management at the edge of their network. This WebSmar t switch provides a network manager some key features using the simple web-based management function such as; por t-based VLANs, IEEE 802.1p QoS, por t trunking/link aggregation, por t mirroring, priority queues and IEEE 802.1x security suppor t. With suppor t of up to 8K MAC addresses and a 4MB packet buffer the AT-GS950/8 WebSmar t switch is an ideal option for integrating management into your network solution.
Key Features
Allied Telesis AT-GS950/8-50. Switch type: Managed. Basic switching RJ-45 Ethernet ports quantity: 8
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Allied Telesis AT-GS950/8-50 Managed (990-003644-50) is 100% genuine Allied Telesis hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Allied Telesis AT-GS950/8-50 Managed includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Allied Telesis AT-GS950/8-50 Managed compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 990-003644-50.
