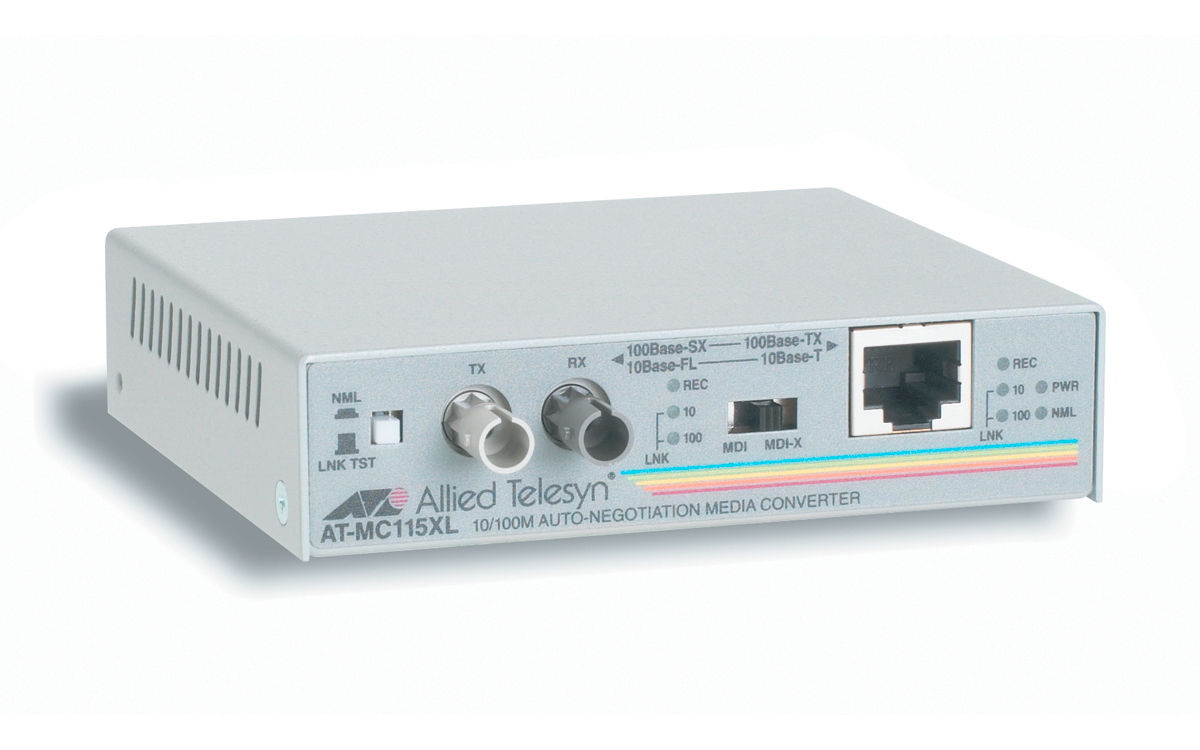

Allied Telesis AT-MC115XL-60 network media converter 10 Mbit/s 850 nm
Brand: Allied Telesis · SKU: 990-001028-60 · MPN: 990-001028-60 · Category: Components
Allied Telesis AT-MC115XL-60, 10 Mbit/s, 850 nm, Wired, 6 W, 0 - 50 °C, -20 - 80 °C. Allied Telesis AT-MC115XL-60 network media converter 10 Mbit/s 850 nm (part number 990-001028-60) is an enterprise components product available from Server Tech Central. Key specifications include wavelength 850 nm, certification FCC Class A, FCC Class B, UL-Cul, CSA/CSA, NRTL, TUV, CE compliant, operating altitude 0 - 3000 m, power requirements 120 - 240 V, 50/60 Hz, connectivity technology Wired, storage temperature (t-t) -20 - 80 °C, maximum data transfer rate 10 Mbit/s, operating temperature (t-t) 0 - 50 °C. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Wavelength | 850 nm |
|---|---|
| Certification | FCC Class A, FCC Class B, UL-Cul, CSA/CSA, NRTL, TUV, CE compliant |
| Operating altitude | 0 - 3000 m |
| Power requirements | 120 - 240 V, 50/60 Hz |
| Connectivity technology | Wired |
| Storage temperature (T-T) | -20 - 80 °C |
| Maximum data transfer rate | 10 Mbit/s |
| Operating temperature (T-T) | 0 - 50 °C |
| Power consumption (typical) | 6 W |
| Operating relative humidity (H-H) | 5 - 95% |
| Warranty | 3-Year Warranty |
Product Description
Fiber Connections The Allied Telesis range of 850nm fiber Fast Ethernet media converters allows users to extend the size of UTP networks with the use of fiber cabling. Converting between 10T and 10FL or 100TX and 100SX fiber quickly and reliably, the AT-MC115XL and AT-MC116XL address the growing demand for a low-cost solution for fiber installations of up to 300 meters for 100SX and up to 2km for 10FL.To maximize flexibility, the converters are available in ST (AT-MC115XL) and SC (AT-MC116XL) fiber connector styles. Auto-Negotiation The AT-MC115XL and AT-MC116XL autonegotiate during the link-up phase of the connection to set the speed (10/100) and operation mode (full or half-duplex).When connecting media converters to autonegotiating Fast Ethernet switches, these media converters will automatically connect the link in either full or half-duplex mode, allowing the link to be established with the greatest bandwidth. MissingLink™ The MissingLink feature allows accurate reporting to network management systems as well as allowing devices with redundant link capability to be inter-connected with these media converters, failure in one fiber link will be signalled to the switch, allowing the second link to become active. Simple Installation All the media converters with a UTP connection feature an internal MDI/MDI-X switch, allowing the converter to be connected to either a PC, hub or switch with a simple UTP cable.The media converters also allow the installer to test the integrity of fiber connection, by forcing the converters to communicate over the fiber cable.This link test feature allows installers to check for cable faults without the need for expensive fiber optic test equipment. Standalone or Rack-mountable Each media converter is powered by an external power supply unit for use in standalone applications.Where multiple media converters are being used, up to 12 devices can be inserted into a low-cost rack-mount chassis, allowing all the converters to be powered by a single internal power supply. In critical applications, a second load sharing internal power supply can be installed into the rackmount chassis.
Key Features
Allied Telesis AT-MC115XL-60. Maximum data transfer rate: 10 Mbit/s. Wavelength: 850 nm. Connectivity technology: Wired. Power consumption (typical): 6 W. Certification: FCC Class A, FCC Class B, UL-Cul, CSA/CSA, NRTL, TUV, CE compliant
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Allied Telesis AT-MC115XL-60 network media converter 10 Mbit/s 850 nm (990-001028-60) is 100% genuine Allied Telesis hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Allied Telesis AT-MC115XL-60 network media converter 10 Mbit/s 850 nm includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Allied Telesis AT-MC115XL-60 network media converter 10 Mbit/s 850 nm compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 990-001028-60.
