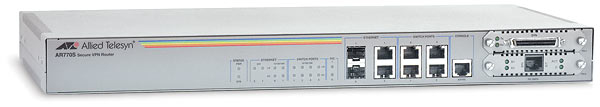

Allied Telesis AT-AR770S-00 Managed
Brand: Allied Telesis · SKU: 990-000818-00 · MPN: 990-000818-00 · Category: Components
Specifications
| Wi-Fi | Yes |
|---|---|
| Weight | 2.95 kg |
| Switch type | Managed |
| Flash memory | 32 MB |
| Certification | UL, TUV, UL60950-1, CAN/CSA-C22.2 No., 60950-1-03, EN60950-1, AS/NZS 60950, EN60825-1, EN55022 class A, EN55024, FCC class A, VCCI class A, AS/NZS CISPR22 class A, CE |
| Input voltage | 100 - 240 V |
| Input frequency | 50/60 Hz |
| Internal memory | 128 MB |
| Power connector | DC-in jack |
| Dimensions (WxDxH) | 440 x 239 x 44 mm |
| Operating altitude | 0 - 3000 m |
| Processor frequency | 833 MHz |
| Switching protocols | PIM-DM, PIM-SM, DVMRP, IGMPv2, IGMP, IPv6 Multicast, PIM6, MLD |
| Authentication method | IP Filtering, Stateful Inspection Firewall, NAT-T, SMTP & HTTP Proxy, 802.1x, RADIUS, TACACS, MD5, PAP, CHAP, SSH, SSLv1 |
| Connectivity technology | Wired & Wireless |
| Power over Ethernet (PoE) | No |
| Storage temperature (T-T) | -25 - 70 °C |
| Maximum data transfer rate | 1 Gbit/s |
| Operating temperature (T-T) | 0 - 50 °C |
| Power consumption (typical) | 40 W |
| Supported data transfer rates | 10/100/1000 Mbps |
| Mean time between failures (MTBF) | 120000 h |
| Operating relative humidity (H-H) | 5 - 80% |
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Warranty | 3-Year Warranty |
| Weight | 2.95 kg |
Product Description
Flexible High Speed WAN Options The AT-AR770S is the first Allied Telesis router to offer gigabit connectivity for both the LAN switch and WAN Ethernet ports. Eth0 and Eth1 are combo ports.This means that they can make use of an SFP instead of the standard copper RJ-45 connection. Both the SFP and RJ-45 physical ports are managed by the same interface IC, providing a single ‘port’ with two connectivity options. When using an SFP port on the AT-AR770S, the corresponding RJ-45 port is disabled. However, when the SFP transceiver is removed, the RJ-45 port becomes operational again. Secure Modular Routing Solution The AT-AR770S has been designed to meet the needs of small to medium enterprises/businesses or branch office businesses. The AT-AR770S offers significant advances in processing performance, Quality of Service (QoS), routing, remote connectivity and security. Extensive VPN Capability The AT-AR770S provides extensive IPSec-based VPN capability, allowing the interconnection of offices, remote tele-workers, and other users who require secure access to a corporate network.The integrated hardware acceleration, standard on the AT-AR770S, maximizes encryption throughput and removes the need to purchase a hardware upgrade package.The AT-AR770S is compatible with industry standard IPSec VPN clients. Performance The AT-AR770S provides superior performance over other secure VPN routers in this market space. While most secure routers have stateful firewalls with NAT, QoS, and IPsec VPN termination capability, very few can perform all three functions and still provide excellent performance with the mixed packed sizes seen in real networks.The AT-AR770S can support up to 1000 concurrent VPN tunnels or up to 500 Mbps AES or 3DES throughput. This level of performance enables secure site-tosite VPNs over multiple WAN interfaces while still firewalling the local network across multiple LAN ports.
Key Features
Allied Telesis AT-AR770S-00. Switch type: Managed. Basic switching RJ-45 Ethernet ports quantity: 4, Power connector: DC-in jack
