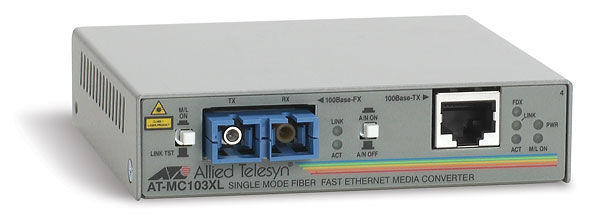

Allied Telesis AT-MC103XL-20 network media converter 1310 nm
Brand: Allied Telesis · SKU: 990-000446-20 · MPN: 990-000446-20 · Category: Components
Allied Telesis AT-MC103XL-20, 15000 m, 1310 nm, Wired, 294 g, 0 - 40 °C, -20 - 80 °C. Allied Telesis AT-MC103XL-20 network media converter 1310 nm (part number 990-000446-20) is an enterprise components product available from Server Tech Central. Key specifications include weight 294 g, wavelength 1310 nm, certification FCC Class B, UL-Cul, CSA/CSA, NRTL, TUV, CE compliant, dimensions (wxdxh) 105 x 95 x 25 mm, connectivity technology Wired, maximum transfer distance 15000 m, storage temperature (t-t) -20 - 80 °C, operating temperature (t-t) 0 - 40 °C. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Weight | 294 g |
|---|---|
| Wavelength | 1310 nm |
| Certification | FCC Class B, UL-Cul, CSA/CSA, NRTL, TUV, CE compliant |
| Dimensions (WxDxH) | 105 x 95 x 25 mm |
| Connectivity technology | Wired |
| Maximum transfer distance | 15000 m |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Warranty | 3-Year Warranty |
| Weight | 294 g |
Product Description
Fiber Connections The Allied Telesis range of Fast Ethernet media converters provides a complete family of conversion devices, allowing users to extend the size of UTP networks with the use of fiber cabling. Supporting both SC and ST fiber connectors, these converters can be used to extend networks with up to 2km of multi-mode fiber or 40km of single-mode fiber. Auto-Negotiation and MissingLink™ The MissingLink feature enables the fiber optic ports on the media converter to pass the ‘Link’ status of their connections to each other. When the media converter detects a problem with one of the ports, such as the loss of connection to an end-node, the media converter shuts down the connection to the other port, thus notifying the node that the connection has been lost. Simple Installation All the media converters feature auto MDI/MDI-X, allowing the converter to be connected to either a PC, hub or switch with a simple UTP cable. The media converters also allow the installer to test the integrity of fiber connection, by forcing the converters to communicate over the fiber cable. This ‘Link Test’ feature allows installers to check for cable faults without the need for expensive fiber optic test equipment. Standalone or Rack-mounted Each small media converter is powered by an external power supply unit for use in standalone applications. Where multiple media converters are being used, up to 12 standalone devices can be inserted into a low-cost rack-mount chassis, allowing all the converters to be powered by a single internal power supply. In critical applications, a second load sharing internal power supply can be installed into the rackmount chassis. Hassle Free Support Allied Telesis Fast Ethernet media converters offer free technical support, ensuring troublefree installation.
Key Features
Allied Telesis AT-MC103XL-20. Maximum transfer distance: 15000 m, Wavelength: 1310 nm. Connectivity technology: Wired. Weight: 294 g. Certification: FCC Class B, UL-Cul, CSA/CSA, NRTL, TUV, CE compliant. Dimensions (WxDxH): 105 x 95 x 25 mm
