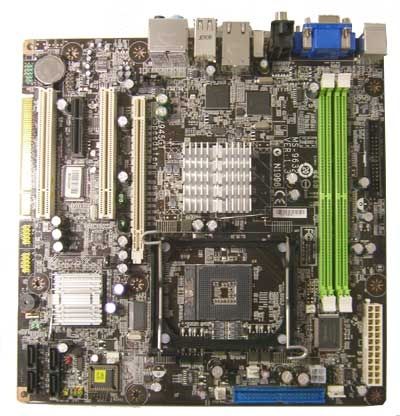

MSI 945GT Speedster-A4V Socket 478 micro ATX
Brand: MSI · SKU: 945GT SPEEDSTER-A4V · MPN: 945GT SPEEDSTER-A4V · Category: Components
MSI 945GT Speedster-A4V, Intel, Socket 478, 4 GB, Intel® 82573L, micro ATX, 7.1 channels. MSI 945GT Speedster-A4V Socket 478 micro ATX (part number 945GT SPEEDSTER-A4V) is an enterprise components product available from Server Tech Central. Key specifications include depth 244 mm, width 244 mm, audio chip Realtek ALC888, lan controller Intel® 82573L, cd/aux audio in Yes, expansion slots - 1 x PCI Express x16 - 1 x PCI Express x 4 - 2 x 32-bit/33MHz PCI, processor socket Socket 478, power source type ATX. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 244 mm |
|---|---|
| Width | 244 mm |
| Audio chip | Realtek ALC888 |
| LAN controller | Intel® 82573L |
| CD/AUX audio in | Yes |
| Expansion slots | - 1 x PCI Express x16 - 1 x PCI Express x 4 - 2 x 32-bit/33MHz PCI |
| Processor socket | Socket 478 |
| Power source type | ATX |
| USB 2.0 connectors | 2 |
| PS/2 ports quantity | 2 |
| DVI-D ports quantity | 1 |
| Audio output channels | 7.1 channels |
| Number of memory slots | 2 |
| Processor manufacturer | Intel |
| USB 2.0 ports quantity | 3 |
| Maximum internal memory | 4 GB |
| Motherboard form factor | micro ATX |
| Number of SATA connectors | 4 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Front panel audio connector | Yes |
| Number of IEEE1394 connectors | 1 |
| Warranty | 3-Year Warranty |
| Dimensions | 244 mm x 244 mm |
Product Description
CPU - Intel® Core Duo/Core Solo/Celeron M CPU in the 478 package - Supports 3/4 pin CPU Fan Pin-Header with Fan Speed Control - Supports Intel Dual Core Technology to 533/667MHz and up - Supports FSB 533/667MHz Core Chipset - North Bridge: Intel 945GT chipset - South Bridge: Intel ICH7R / ICH7M-DH (optional SKU) chipset Main Memory - DDRII 533/667 SDRAM (4GB Max) - 2 DIMMs DDRII (240pin / 1.8V) Slots - 1 PCI Express x16 slot - 1 PCI Express x 4 slot - 2 32-bit/33MHz PCI slots HDD Interface 1 IDE port by ICH7R / ICH7M-DH (optional SKU) - Supports Ultra DMA 66/100/133 mode - Supports PIO, Bus Master operation mode SATA II ports by ICH7R / ICH7M-DH - Supports four / two SATA II devices (optional SKU) - Supports storage and data transfers at up to 300MB/s RAID - SATA1~4 supports RAID 0/ 1/ 0+1/ 5 Internal I/O Connectors - 1 PS/2 mouse port - 1 PS/2 keyboard port - 2 or 1 x RJ45 Gigabit LAN (optional SKU - 1 LAN) - 1 IEEE 1394 port - 4 USB 2.0 Ports - 1 DVI + VGA connector - 1 stacked Standard Video + RAC connector - 1 7.1-channel audio connector On-Board Pinheaders - 2 USB 2.0 pinheaders - 1 IEEE 1394 pinheader - 1 Front Audio header - 1 CD-IN - 1 serial header (COM1) Floppy - 1 floppy port - Supports 1 FDD with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes Onboard LAN -Supports PCI Express LAN GB Fast Ethernet by Intel 82573L Onboard Audio - Realtek ALC888 chip integrated - Flexible 7.1 channel audio with jack sensing - Compliant with Azalia 1.0 spec. Onboard IEEE 1394 -VIA VT6307 chip integrated -Transfer rate is up to 400Mbps Form Factor -u-ATX (24.4cm X 24.4 cm) Mounting -9 mounting holes
Key Features
MSI 945GT Speedster-A4V. Processor manufacturer: Intel, Processor socket: Socket 478. Maximum internal memory: 4 GB. LAN controller: Intel® 82573L. Motherboard form factor: micro ATX, Audio output channels: 7.1 channels, Audio chip: Realtek ALC888. Width: 244 mm, Depth: 244 mm
