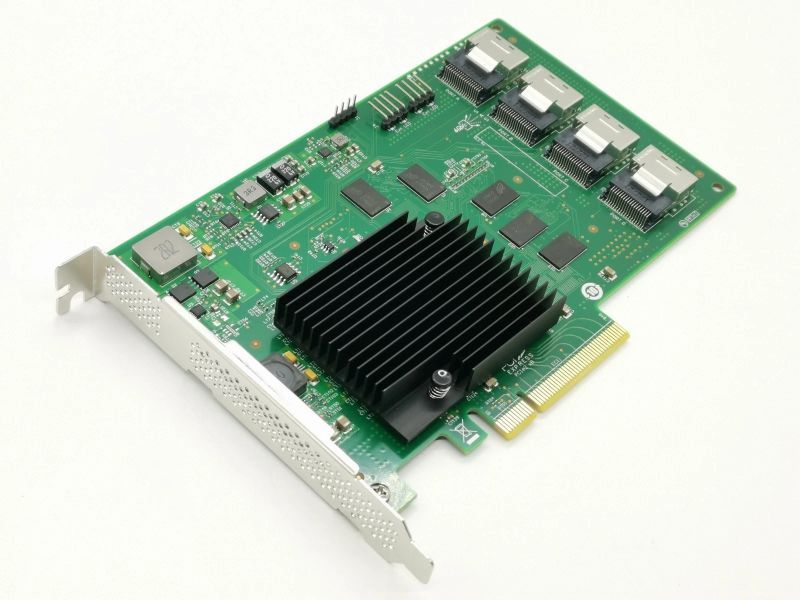

LSI SAS 9201-16i Host Bus Adapter (HBA)
Brand: LSI (now part of Broadcom) · SKU: 9201-16I · MPN: LSI00244 · Category: Components
The LSI SAS 9201-16i Host Bus Adapter (HBA) provides the greatest available throughput to internal server storage arrays through sixteen internal 6Gb/s ports, driving up to 512 SAS and SATA physical devices. This HBA offers dynamic SAS functionality including dual-port drive redundancy and SATA compatibility. It doubles the performance of previous generation SATA+SAS HBAs and is ideal for driving cost-effective and reliable scalability in today's data centers. It utilizes the LSISAS2116 I/O controller and is based on the Fusion-MPT architecture. Enhanced features include T-10 Protection Information Model for early detection of and recovery from data corruption, and Spread Spectrum Clocking (SSC) for minimal EMI.
Specifications
| MPN | LSI00244 |
|---|---|
| MTBF | >2,000,000 hours |
| Host Bus | PCI Express 2.0 x8 |
| PCI Card Type | 3.3 V Add-in Card |
| Device Support | 512 Non-RAID SAS/SATA devices |
| I/O Controller | LSISAS2116, Fusion MPT 2.0 |
| Internal Ports | 16 ports via four (4) internal mini-SAS connectors (SFF8087) |
| RAID Supported | No (HBA, not a RAID card) |
| Power Consumption | 16 W typical or 20 W |
| Data Transfer Rates | 6Gb/s SAS 2.0 compliant |
| Warranty | 3 years, advanced replacement option |
| Weight | N/A (Approx 0.286 kg for package) |
| Dimensions | Full Height (4.2” x 6.6”), Half-length / full height (6.6” x 4.2”) |
Key Features
The LSI SAS 9201-16i is a 16-port internal SAS Host Bus Adapter (HBA) that provides high-performance 6Gb/s SAS connectivity over a PCI Express 2.0 x8 interface. It supports up to 512 SAS or SATA devices, making it suitable for high-capacity server storage arrays. It is based on the LSI SAS 2116 controller and features the Fusion-MPT architecture.
