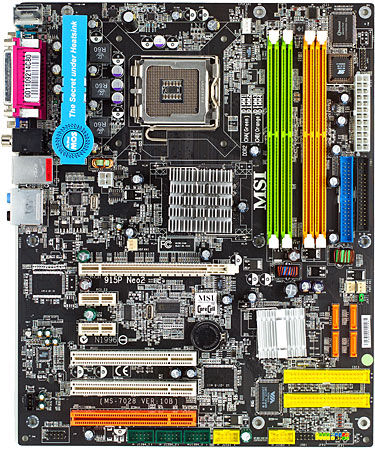

MSI 915P Neo2-FR (V1.0B) Intel® 915P Express LGA 775 (Socket T) ATX
Brand: MSI · SKU: 915P NEO2-FR · MPN: 915P NEO2-FR · Category: Components
MSI 915P Neo2-FR (V1.0B), Intel, LGA 775 (Socket T), 800 MHz, 4 GB, 0, 1, 10/100/1000 IEEE 802.3. MSI 915P Neo2-FR (V1.0B) Intel® 915P Express LGA 775 (Socket T) ATX (part number 915P NEO2-FR) is an enterprise components product available from Server Tech Central. Key specifications include raid levels 0, 1, audio output 8-channel CMI9880L., processor socket LGA 775 (Socket T), power source type ATX, motherboard chipset Intel® 915P Express, networking features 10/100/1000 IEEE 802.3, processor manufacturer Intel, maximum internal memory 4 GB. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| RAID levels | 0, 1 |
|---|---|
| Audio output | 8-channel CMI9880L. |
| Expansion slots | 1x PCI Express x16 slot 2x PCI Express x1 slots 3x 32-bit v2.3 Master PCI bus slots |
| Processor socket | LGA 775 (Socket T) |
| Power source type | ATX |
| Motherboard chipset | Intel® 915P Express |
| Networking features | 10/100/1000 IEEE 802.3 |
| Processor manufacturer | Intel |
| Maximum internal memory | 4 GB |
| Motherboard form factor | ATX |
| Processor system buses supported | 800 MHz |
| Warranty | 3-Year Warranty |
Product Description
Supports Intel® Pentium 4 / Celeron D processors in LGA775 package. Supports up to Pentium 4 5XX and Celeron D 3xx sequence processor. Support Intel 04B and 04A processors. Supports Intel Hyper-Threading Technology. Intel® 915P Chipset - Supports FSB 800MHz. - Supports PCI Express x16 interface. - Supports DDR2 400/533 memory interface. Intel® ICH6 Chipset - Hi-Speed USB (USB2.0) controller, 480Mb/sec, up to 8 ports. - 4 Serial ATA ports with transfer rate up to 1.5Gb/s. - 1 channel Ultra ATA 100 bus Master IDE controller. - PCI Master v2.3, I/O APIC. - ACPI 2.0 Compliant. Supports four unbuffered DIMM of 1.8 Volt DDR2 SDRAM Supports up to 4GB memory size. Supports Dual channel DDR2 memory architecture. Supports DDR2 400/533 memory interface. One PCI Express x16 slot (supports PCI Express Bus specification v1.0a compliant). Two PCI Express x1 slots (supports PCI Express Bus specification v1.0a compliant). Three 32-bit v2.3 Master PCI bus slots (support 3.3v/5v PCI bus interface). On-Board IDE / SATA Dual Ultra DMA 66/100 IDE controllers integrated in ICH6. - Supports PIO, Bus Master operation modes. - Can connect up to two Ultra ATA drives. Serial ATA/150 controller integrated in ICH6. - Up to 150MB/sec transfer speeds. - Can connect up to four Serial ATA devices. IDE RAID VIA6410 IDE RAID Controller - Two Ultra DMA 66/100/133 IDE Controllers. - Supports RAID 0, 1 and 0+1. - Connect up to 4 Ultra ATA 133 devices. Audio Azalia link controller integrated in Intel® ICH6 chipset. 8-channel audio codec CMI9880L. - Compliant with Azalia 1.0 Spec. - Supports Multi-Streaming function. - Supports Universal Audio Jack (only Front Audio Jack). LAN Marvell® 8053 - PCI Express bus Spec 1.0a compliant. - X1 PCI Express interface with 2.5 GHz signaling. - 10/100/1000 IEEE 802.3 compliant. On-Board Peripherals - 1 floppy port supports 1 FDD with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes - 1 serial port - 1 parallel port supports SPP/EPP/ECP mode - 1 Line-In / Line-Out / MIC-In / Rear Speaker Out / Center-Subwoofer Speaker Out / SPDIF-Out optical and coaxial audio port - 8 USB ports (Rear x 4 / Front x 4) - 1 RJ-45 LAN jack
Key Features
MSI 915P Neo2-FR (V1.0B). Processor manufacturer: Intel, Processor socket: LGA 775 (Socket T), Processor system buses supported: 800 MHz. Maximum internal memory: 4 GB. RAID levels: 0, 1. Networking features: 10/100/1000 IEEE 802.3. Motherboard form factor: ATX, Motherboard chipset: Intel® 915P Express, Power source type: ATX
Frequently Asked Questions
Is this product genuine OEM?
Yes, this MSI 915P Neo2-FR (V1.0B) Intel® 915P Express LGA 775 (Socket T) ATX (915P NEO2-FR) is 100% genuine MSI hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This MSI 915P Neo2-FR (V1.0B) Intel® 915P Express LGA 775 (Socket T) ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the MSI 915P Neo2-FR (V1.0B) Intel® 915P Express LGA 775 (Socket T) ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 915P NEO2-FR.
