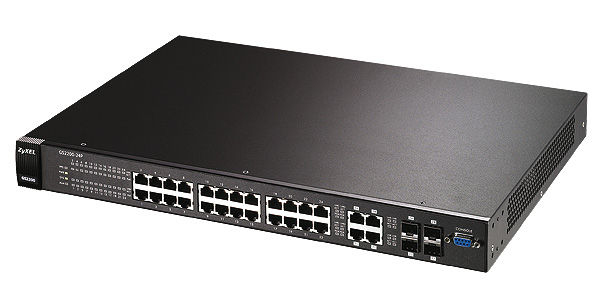

Zyxel GS2200-24P Managed L2 Power over Ethernet (PoE) Black
Brand: Zyxel · SKU: 91-010-219004B · MPN: 91-010-219004B · Category: Components
Zyxel GS2200-24P, Managed, L2, Power over Ethernet (PoE). Zyxel GS2200-24P Managed L2 Power over Ethernet (PoE) Black (part number 91-010-219004B) is an enterprise components product available from Server Tech Central. Key specifications include weight 4.8 kg, stackable Yes, 10g support No, switch type Managed, switch layer L2, igmp snooping Yes, rate limiting Yes, port mirroring Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Weight | 4.8 kg |
|---|---|
| Stackable | Yes |
| 10G support | No |
| MIB support | RFC 1066 TCP/IP, RFC 1213, 1157 SNMP v2c/v3 MIB, RFC 2011, 2012, 2013 SNMP v2 MIB, RFC 1493, RFC 2674, RFC 1643, RFC 2358, RFC 1757, RFC 2819, RFC 3621 |
| Switch type | Managed |
| Switch layer | L2 |
| IGMP snooping | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Product colour | Black |
| Link aggregation | Yes |
| MAC address table | 16000 entries |
| Data transfer rate | 41.7 Mbit/s |
| Dimensions (WxDxH) | 440 x 310 x 43 mm |
| Power requirements | 100 - 240V AC, 50/60 Hz |
| Switching capacity | 56 Gbit/s |
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Web-based management | Yes |
| MAC address filtering | Yes |
| Broadcast storm control | Yes |
| Connectivity technology | Wired |
| Power over Ethernet (PoE) | Yes |
| Storage temperature (T-T) | -25 - 70 °C |
| Maximum data transfer rate | 1 Gbit/s |
| Warranty | 3-Year Warranty |
| Weight | 4.8 kg |
Product Description
- Advanced L2 switching features - 56 Gbps non-blocking switch fabric - 4 Dual-personality (RJ-45/SFP) GbE interfaces - Port security and enhanced 802.1x port authentication - MAC freeze and intrusion lock - 8 IEEE 802.1p hardware priority queues - WFQ, WRR and SPQ queuing algorithms - IEEE 802.3af Power over Ethernet - PoE Power consumption mode for energy saving The GS2200-24P deliver 24 port 100/1000Base-T PoE with 4 GbE dual-personalities. The GS2200-24P provides high-performance and secure 100/1000 connectivity, access resiliency and security, as well as Traffic Management and QoS functionalities. Feature-rich and easy-to-use, the GS2200-24P is specially designed for branch offices or SME users. High performance switch architecture for SME The ZyXEL GS2200-24P incorporates a high-performance switching architecture that provides 56 Gbps non-blocking switch fabric, 41.7 million packets per-second forwarding rate and wire-speed performance to connect high performance desktop devices with resources at the heart of the network. For branch offices and SME users, the GS2200-24P enables the delivery of converged applications and adapts to changing business needs with flexible configurations. In addition, the GS2200-24P is optimised for high-density Gigabit Ethernet deployments and is suitable for both the core and the edge of the network. Secure enhanced management functionality The GS2200-24P is easy to use and manage the applications that are needed to support the business and increase productivity. ZyXEL iStacking™ clustering management technology can manage devices across different floors and routing domains to locate other iStacking-capable switches in the same management cluster. This allows administrators to manage 24 switches with one single IP address. This greatly reduces operating costs and offers more flexible maintenance of ZyXEL Switches. IT staff can opt for the Web or command line interface to suit their needs, and even encrypt their instructions with SSHv1/v2 and SSL. With these sophisticated functionalities, the IT staff is empowered to build a highly secure and efficient corporate network with minimum effort. Future proof networking with minimum disruption The GS2200-24P provides rich features including VLANs, CoS/QoS, Port Trunking, Rapid Spanning Tree, Security (Port Security and 802.1x authentication) and network management to meet evolving SME requirements. Meanwhile, it delivers the most cost-effective Gigabit Ethernet solution to empower Gigabit converged networking for branch offices and SME users. Intelligent PoE for cost saving ZyXEL's Intelligent PoE features provide two power supply modes: - Classification mode: the switch reserves the maximum power (W) to each powered device (PD) according to the priority levels. - Consumption mode: the switch manages the entire power supply, so each connected PD gets the actual power it needs. In the Consumption Mode, ZyXEL's Intelligent PoE will reserve the required power automatically, and you can set power feeding priorities on different ports to get the best use of power resource. This capability can increase the number of devices connected and deliver a better ROI for the business. The GS2200-24P provides a total power budget of up to 220 W as default. With the PPS250 external PoE power supply, the GS2200-24P can provide 15.4 W per port to 24 PoE ports simultaneously.
Key Features
Zyxel GS2200-24P. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 16000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE.... Power over Ethernet (PoE)
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Zyxel GS2200-24P Managed L2 Power over Ethernet (PoE) Black (91-010-219004B) is 100% genuine Zyxel hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Zyxel GS2200-24P Managed L2 Power over Ethernet (PoE) Black includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Zyxel GS2200-24P Managed L2 Power over Ethernet (PoE) Black compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 91-010-219004B.
