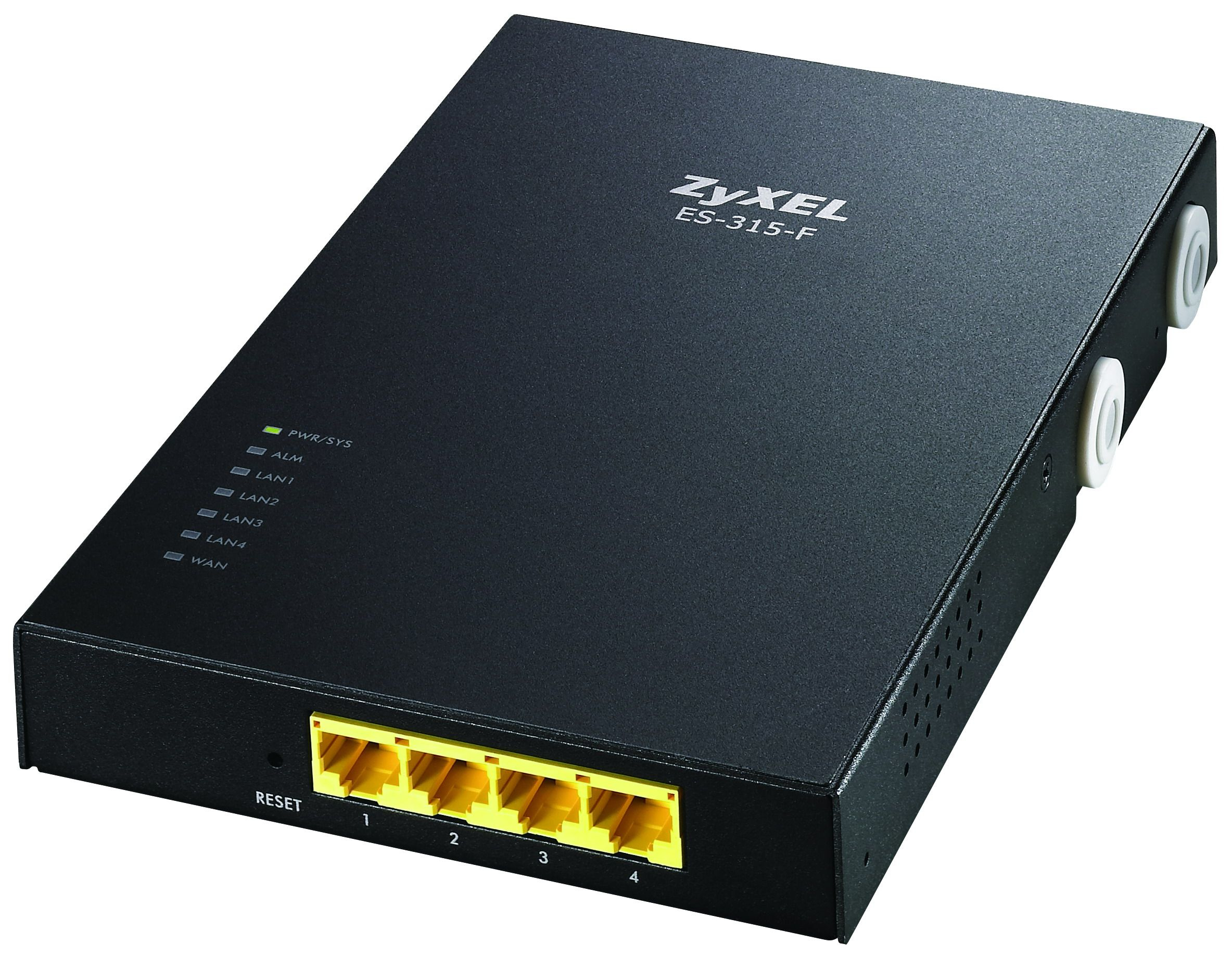

Zyxel ES-315-F Managed L2
Brand: Zyxel · SKU: 91-010-158001B · MPN: 91-010-158001B · Category: Components
Zyxel ES-315-F, Managed, L2, Full duplex. Zyxel ES-315-F Managed L2 (part number 91-010-158001B) is an enterprise components product available from Server Tech Central. Key specifications include weight 325 g, stackable Yes, 10g support No, full duplex Yes, mib support RFC1213, RFC1493, RFC1155, RFC2647, switch type Managed, switch layer L2, igmp snooping Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Weight | 325 g |
|---|---|
| Stackable | Yes |
| 10G support | No |
| Full duplex | Yes |
| MIB support | RFC1213, RFC1493, RFC1155, RFC2647 |
| Switch type | Managed |
| Switch layer | L2 |
| Certification | - UL 60950-1 - CSA 60950-1 - EN 60950-1 - IEC 60950-1 - FCC Part15 (Class B) - CE EMC |
| IGMP snooping | Yes |
| Rate limiting | Yes |
| Auto MDI/MDI-X | Yes |
| SSH/SSL support | Yes |
| MAC address table | 1000 entries |
| Dimensions (WxDxH) | 194 x 129.7 x 25.9 mm |
| Flow control support | Yes |
| Networking standards | IEEE 802.1d, IEEE 802.1Q, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| MAC address filtering | Yes |
| Spanning tree protocol | Yes |
| Power over Ethernet (PoE) | No |
| Storage temperature (T-T) | -30 - 60 °C |
| Maximum data transfer rate | 1 Gbit/s |
| Operating temperature (T-T) | 0 - 40 °C |
| Supported data transfer rates | 10/100 Mbps |
| Storage relative humidity (H-H) | 10 - 85% |
| Warranty | 3-Year Warranty |
| Weight | 325 g |
Product Description
Homebound Triple Play Delivery - 4 ports Auto crossover MDI/MDI-X 10/100Mbps and 1 port FX compliant with IEEE802.3u/x - 1K layer 2 MAC addresses table - Support 512K bits SRAM for packet buffer. - 802.1D transparent bridging - IEEE 802.1Q tag-based VLAN - IGMP snooping - Fan-less design - IGMP filtering - MVR Easy 5-port L2 Managed Switch Deployments ZyXEL ES-315-F is a L2 premise-managed Ethernet switch with up to 4 10/100Mbps auto-crossover MDI/MDI-X ports and 1 FX port. With superb performance in network resiliency, QoS, IP multicasting and security, ES-315-F is an ideal triple-play service solution for active Ethernet ETTx deployments aiming at service providers as well as cable, utility and municipality operators. Secured Service-level IP TV & VoIP Operations To IP TV and VoIP services, the quality is the key to success. As such ES-315-F comes with proven QoS and VLAN functionalities like multi-layer (L2/L3/L4) ACL and 4 priority queues with SP/WRR to ensure smooth operations. For the hottest IP TV services, the ES-315-F also supports MVR to work with the IGMP snooping feature that empowers commercial-class IP TV deliveries.
Key Features
Zyxel ES-315-F. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 1000 entries. Networking standards: IEEE 802.1d, IEEE 802.1Q, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
