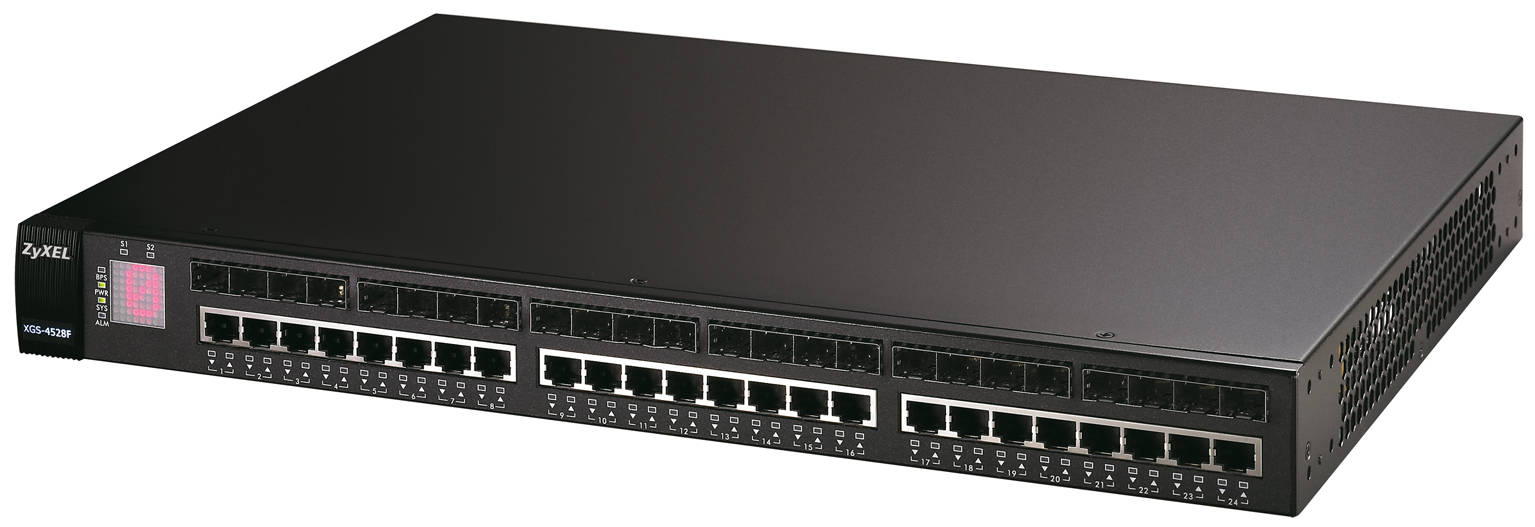

Zyxel XGS-4528F L3 Gigabit Ethernet (10/100/1000) Black

Specifications

Product Description

Build a High Availability, Robust and Reliable Network — Meet the Challenge of Virtualization The ZyXEL XGS Series of L3 switches enable enterprise and SMB businesses to deploy high availability networks to meet the need to migrate to a virtualized and consolidated solution. The evolution to the virtualized network meets the increasing demands in server utilization and availability within the business today. The XGS4500 Series compliments the network infrastructure of virtualization as both Series deliver not only robust, reliable enterprise-class L2/L3 switch features but are also designed to accomplish high-availability routing for better utilization of network bandwidth. The ZyXEL XGS4500 Series consists of two models: XGS-4528F and XGS-4526. The XGS-4528F offers 24 Gigabit dual-personality ports along with 2 built-in 12G Gigabit stacking interfaces and 1 open slot for the optional 10G Gigabit EM-422/412 uplink module which supports up to 2 10G transceivers, while the XGS-4526 provides 20 Gigabit Ethernet ports, 4 Gigabit dual-personality ports and 1 open slot for the optional 10G Gigabit EM-422/412 uplink module which supports up to 2 10G transceivers. High-performance IPv6 and IPv4 routing The ZyXEL XGS4500 Series provides businesses with a smooth migration path from IPv4 based networks to a full IPv6 infrastructure, providing investment protection for future network upgrades when a larger installation of connected devices is required. The XGS4500 Series utilizes the latest design technology to provide wire speed communication and full-dynamic IP routing features such as RIP, RIPv2 and OSPF as well as special features such as equal-cost, multi-path routing (ECMP) which load balances network traffic across multiple paths through the network that have the same costing. Packets can be delivered to the same device through different routing paths by designating the equal costs. Businesses can adopt basic static routing technology such as RIP and RIPv2 for small network routing applications or advanced routing protocols such as OSPF and ECMP for load balancing. These protocols are a critical part in the creation of fully resilient scalable networks. Optional 10G Gigabit uplink capability The ZyXEL XGS4500 Series offers wire speed 10G Gigabit Ethernet uplink ports for campus networks or service providers to deliver high-bandwidth applications for congestion relief and smooth data delivery. With the 10 optional 10G Gigabit modules (CX4 and XFP interfaces), customers can easily integrate new elements into the existing networks and increase bandwidth at critical points of the network without having to go to the additional cost of purchasing whole new network switches. Intelligent QoS for mission critical applications In order to ensure the quality of multiple services on a converged network, adopting advanced traffic control technologies to manage different types of traffic flows is critical and necessary to businesses. The ZyXEL XGS4500 Series supports intelligent QoS features to regulate network traffic for the best performance. Taking advantage of Class of Service (CoS) and Differentiated Services Code Point (DSCP) support, network designers and administrators can easily classify and enable traffic prioritization for critical business applications such as VoIP and video conferencing. In addition, the XGS4500 Series also provides advanced bandwidth control with 64 kbps granularity and 8 hardware priority queues to bring better bandwidth administration to network operators. High-level security for ultimate network protection The ZyXEL XGS4500 Series works with an intelligent 3-tier security mechanism that offers complete data and management protection via a wide range of security features to protect subscriber data and deter unauthorized users through effective traffic administration. The 802.1X Authentication and Port Security features provide the ability to stop unauthorized users from accessing the network, while Limited MAC Number by Port limits the total number of devices connected to a switch port, and thus significantly reducing the risk of unknown access from massively deployed wireless networks or hubs. To serve specific users such as guests or visitors to the business, the 802.1X Guest VLAN feature allows them to access the Internet via the Guest VLAN without entering the business’s internal network. The multilayer (L2/L3/L4) ACL suite of the XGS4500 Series has sophisticated rule-based control mechanisms that can be easily deployed based on actual network environments via a Web GUI or command-line interface to prevent illegitimate access. The rules can be defined to deny packets according to source and destination of MAC addresses, IP addresses or TCP/UDP ports. Robust and high-availability system design guarantees non-stop operations The ZyXEL XGS4500 Series supports the VRRP routing protocol for resilience within the network to avoid the failure of transmission. The optional DC power source, called

Key Features

Zyxel XGS-4528F. Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 8000 entries, Switching capacity: 144 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE...
