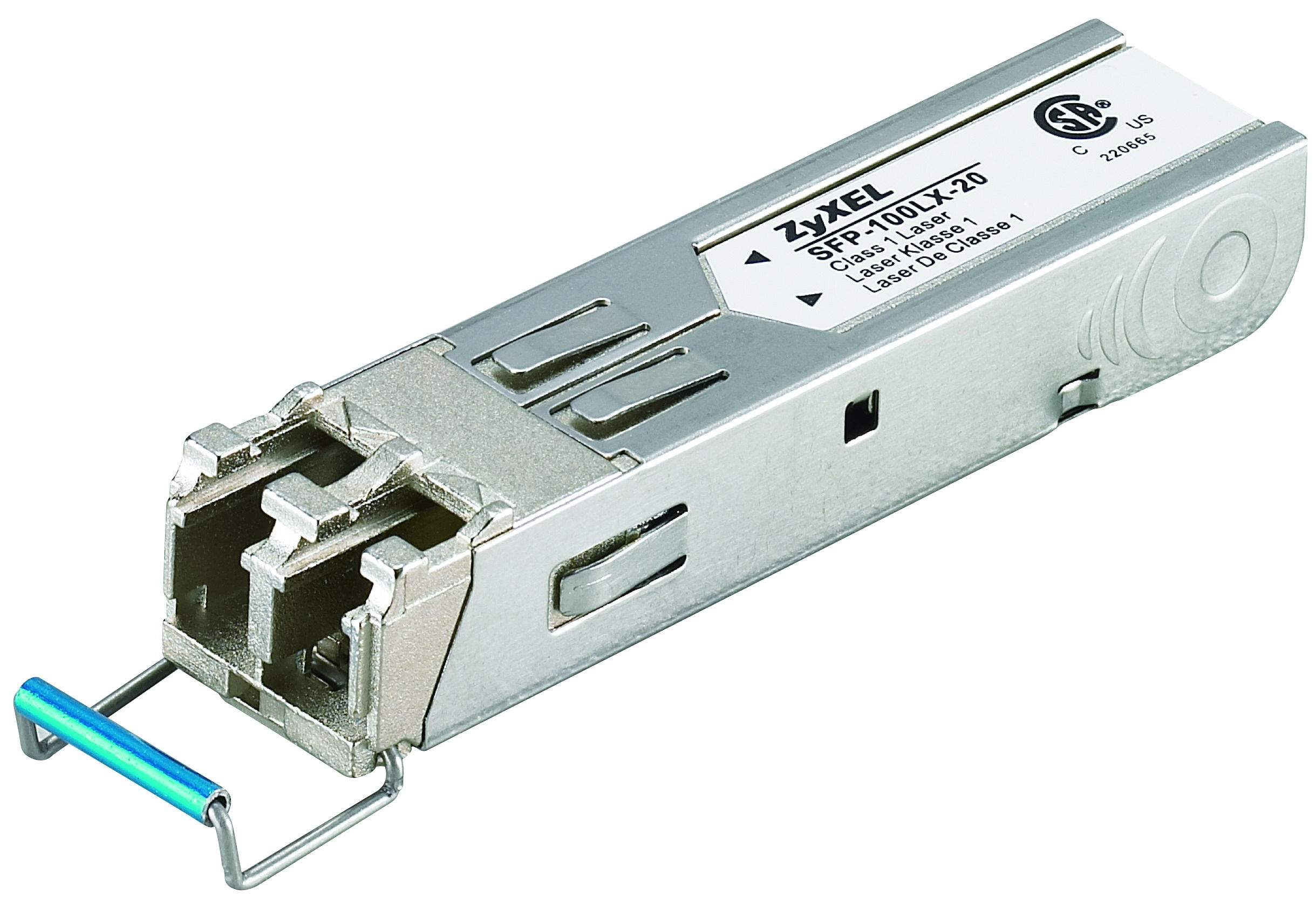

Zyxel SFP-100LX-20 network media converter 125 Mbit/s 1310 nm
Brand: Zyxel · SKU: 91-010-141001B · MPN: 91-010-141001B · Category: Networking
Zyxel SFP-100LX-20, 125 Mbit/s, 100BASE-LX10, 20000 m, 1310 nm, IEEE802.3ah, Wired. Zyxel SFP-100LX-20 network media converter 125 Mbit/s 1310 nm (part number 91-010-141001B) is an enterprise transceivers & optics product available from Server Tech Central. Key specifications include hot-swap Yes, fiber type 9/125 µm, wavelength 1310 nm, form factor SFP, connector(s) LC, power budget 15 dB, certification - Class 1 Laser - 21 CFR 1040.10 & 1040.11 - CSA - TUV, plug and play Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Hot-swap | Yes |
|---|---|
| Fiber type | 9/125 µm |
| Wavelength | 1310 nm |
| Form factor | SFP |
| Connector(s) | LC |
| Power budget | 15 dB |
| Certification | - Class 1 Laser - 21 CFR 1040.10 & 1040.11 - CSA - TUV |
| Plug and Play | Yes |
| Cabling technology | 100BASE-LX10 |
| Dimensions (WxDxH) | 56 x 13.4 x 12.4 mm |
| Power requirements | 3.1-3.5 V, 250mA |
| Connectivity technology | Wired |
| Maximum transfer distance | 20000 m |
| Storage temperature (T-T) | -40 - 85 °C |
| Maximum data transfer rate | 125 Mbit/s |
| Operating temperature (T-T) | 0 - 70 °C |
| Compliance industry standards | IEEE802.3ah |
| Operating relative humidity (H-H) | 5 - 95% |
| Warranty | 3-Year Warranty |
Product Description
Standard-based Design Assures Compatibility ZyXEL transceiver family follows industry standards to assure compatibility with switches from other manufacturers without barriers set by proprietary technologies. Comprehensive Portfolio for Different Connectivity Demands With ZyXEL's comprehensive Fast and Gigabit transceiverproduct range, users can just plug in the proper model to extend the physical network coverage. Swappable Design Facilitates Network Maintenance Independent transceiver design provides the highest network maintenance flexibility. Transceivers can be added when required, and infrastructure upgrade or transceivers repair can be done easily by just replacing the transceiver instead of the whole device. Bi-Directional Transceivers Maximizing Usage of Existing Fiber Plant Two strands of fiber have been required for traditionally fiber optic networking to accomplish communications. In this case, one strand is reserved for transmitting, the other for receiving. However, bi-directional, dual wavelength transceivers can accomplish communications over just one strand of fiber by using two separate optical wavelengths, one to receive and the other to transmit the signal. Transmission capacity can be expanded immediately without additional cost of running new fiber, and the value of existing fiber plant can be maximized.
Key Features
Zyxel SFP-100LX-20. Maximum data transfer rate: 125 Mbit/s, Cabling technology: 100BASE-LX10. Maximum transfer distance: 20000 m, Wavelength: 1310 nm. Compliance industry standards: IEEE802.3ah. Connectivity technology: Wired. Certification: - Class 1 Laser - 21 CFR 1040.10 & 1040.11 - CSA - TUV
