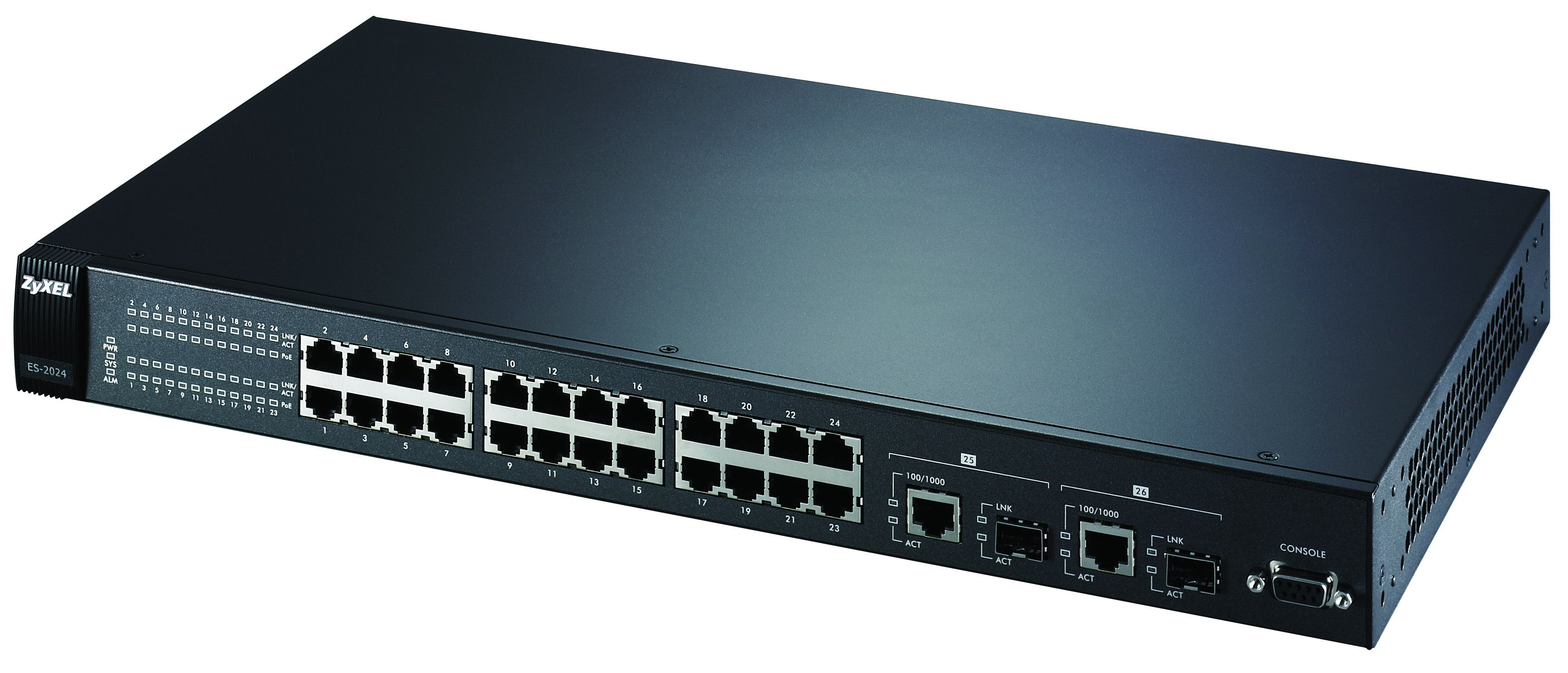

Zyxel ES-2024PWR Managed Power over Ethernet (PoE) Black
Brand: Zyxel · SKU: 91-010-117001B · MPN: 91-010-117001B · Category: Components
Zyxel ES-2024PWR, Managed, Power over Ethernet (PoE). Zyxel ES-2024PWR Managed Power over Ethernet (PoE) Black (part number 91-010-117001B) is an enterprise components product available from Server Tech Central. Key specifications include weight 4 kg, switch type Managed, certification UL 60950-1 CSA 60950-1 EN 60950-1 IEC 60950-1, port mirroring Yes, product colour Black, system event log Yes, mac address table 8000 entries, dimensions (wxdxh) 438 x 270 x 44.45 mm. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Weight | 4 kg |
|---|---|
| Switch type | Managed |
| Certification | UL 60950-1 CSA 60950-1 EN 60950-1 IEC 60950-1 |
| Port mirroring | Yes |
| Product colour | Black |
| System event log | Yes |
| MAC address table | 8000 entries |
| Dimensions (WxDxH) | 438 x 270 x 44.45 mm |
| Power requirements | 100 - 240 V, 50/60 Hz |
| Switching capacity | 8.8 Gbit/s |
| Flow control support | Yes |
| Management protocols | SNMP v1, v2c, v3, RMON, IGMP v1, v2, v3 |
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3u, IEEE 802.3z |
| Authentication method | 802.1x |
| MAC address filtering | Yes |
| Broadcast storm control | Yes |
| Connectivity technology | Wired |
| SFP/SFP+ slots quantity | 4 |
| Combo SFP ports quantity | 2 |
| Power over Ethernet (PoE) | Yes |
| Storage temperature (T-T) | -25 - 70 °C |
| Maximum data transfer rate | 1 Gbit/s |
| Operating temperature (T-T) | 0 - 45 °C |
| Power consumption (typical) | 200 W |
| Warranty | 3-Year Warranty |
| Weight | 4 kg |
Product Description
- Port-based and IEEE802.1Q Tagged VLAN (4K PVID). - Intrusion lock, MAC Freeze, MAC filtering & Static MAC Forwarding for L1/L2 Security Protection. - 802.1x for Access Authentication and Management over VLAN and Bandwidth per Valid User's Attribute. - MVR Ensure Valid Transmission of Multicasting Stream on the Network-wide Multicast VLAN . - iStacking Clustering Technology, One IP Management for 24 Devices . - iManage Easy Management Tools (GUI, CLI & Text-based Configuration for Scripting). - IEEE802.3af Power over Ethernet (PoE) Maximizes. Best fit for SMB & Campus for Convergence Network ZyXEL ES-2024PWR is an entry-level, managed L2 Fast Ethernet Switch, and specially designed for SMB or Campus to empower multi-tasks in today's dynamic network environment requiring capability over security, QoS and network management. Complete product portfolio with optimized port configuration (26/50 port), embedded two dual-personality GbE ports and Power over Ethernet (PoE) can easily find solution and fit in any network very easily. High-Security Network Edge The ES-2024PWR features wide range security functions to prevent unauthorized data access. 256 Static VLAN entry enables complicated VLANs portfolio for policy management. Full range 4K VLAN (4K PVID) are equipped as well. Besides central access authentication by 802.1x, it can further assigns VLAN and bandwidth per pre-defined attribute for valid user which greatly lifts flexibility over network management. In addition, extra support of MAC filtering, MAC freezing and Specific MAC forwarding, allow the network administrator to set security policy toward device MAC address. The ES-2024PWR is designed to offer comprehensive security features for enforcing security policies to the edge. Intelligent Traffic Prioritization for Multi-Services Multiple priority queues and scheduling mechanism, makes the ES-2024PWR easy to perform traffic prioritizing for delay-service applications. You can also customize DSCP settings to provide an end-to-end QoS environment. MVR ensures efficient transmission of multicasting stream on the network-wide multicast VLAN. For bandwidth management, the ES-2024PWR supports bandwidth increment of 64Kbps to give different bandwidth allocations. Moreover, with broadcast storm control, network can limit the broadcast packets once over pre-defined threshold which prevents the network outrage. Industry Standard-based Network Management Managing the ES-2024PWR is simple through its iStacking, SNMP, Web, telnet and RS-232 support. iStackingTM, ZyXEL-exclusive clustering technology, allows administrators to manage up to 24 switches with one single IP. In addition, IT staff may opt for Web, CLI (Command Line Interface) or text-based configuration for their convenience and even encrypt the instructions using SSHv1/v2 and SSL. Thanks to these sophisticated functionalities, the IT staff is able to build a highly secure and efficient corporate network with minimum effort. Installment Freedom by Power over Ethernet The ES-2024PWR supports IEEE802.3af Power over Ethernet (PoE) to ease the installment in challenging space, such as ceiling or top of wall, Device compliant with IEEE802.3af, like WLAN AP, IP surveillance camera, etc, can get powered Ethernet connectivity through just single Cat-5 cable, with up to 100 meters of successful link distance. There is no need to use extra power adapter and you can walk away from the headache of how to set up the power line to devices. In addition, ES-2024PWR supports intelligent power management via web GUI. You can set the priority levels of power-feeding over different ports to get the best use of power resource,
Key Features
Zyxel ES-2024PWR. Switch type: Managed. Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 8000 entries, Switching capacity: 8.8 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... Power over Ethernet (PoE)
