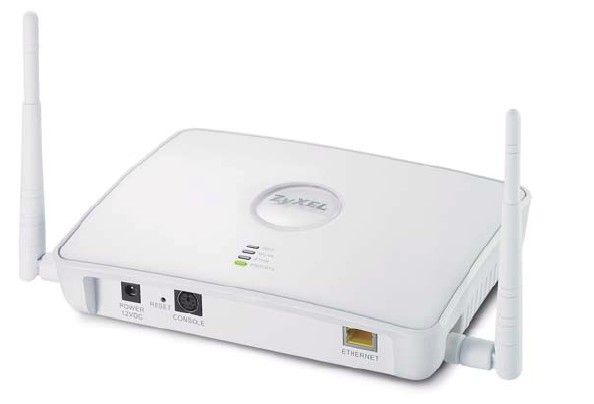

Zyxel NWA-3163 802.11b/g Wireless Business Access Point 100 Mbit/s Power over Ethernet (PoE)
Brand: Zyxel · SKU: 91-005-206002B · MPN: 91-005-206002B · Category: Networking
Zyxel NWA-3163 802.11b/g Wireless Business Access Point, 2.4 GHz, 100 Mbit/s. Zyxel NWA-3163 802.11b/g Wireless Business Access Point 100 Mbit/s Power over Ethernet (PoE) (part number 91-005-206002B) is an enterprise wireless aps product available from Server Tech Central. Key specifications include weight 420 g, 2.4 ghz Yes, dc-in jack Yes, modulation DQPSK, QPSK, indoor range 130m, outdoor range 500m, frequency band 2.4 GHz, power supply type 12V DC, 1.5A. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Weight | 420 g |
|---|---|
| 2.4 GHz | Yes |
| DC-in jack | Yes |
| Modulation | DQPSK, QPSK |
| Indoor range | 130m |
| Certification | FCC Part 15C 15.247, FCC Part 15B, DGT LP0002, CSA 60950-1, IEC 60950-1, EN 60950-1, UL 60950-1, ANS/UL 2043 |
| Outdoor range | 500m |
| Frequency band | 2.4 GHz |
| Power supply type | 12V DC, 1.5A |
| Wireless standard | IEEE 802.11 b/g |
| Dimensions (WxDxH) | 138.5 x 198.5 x 47.5 mm |
| Throughput data rate | 33 Mbit/s |
| Antenna gain level (max) | 3 dBi |
| Output power description | 200 mW |
| Power over Ethernet (PoE) | Yes |
| Storage temperature (T-T) | -30 - 60 °C |
| Ethernet LAN (RJ-45) ports | 1 |
| Maximum data transfer rate | 100 Mbit/s |
| Operating temperature (T-T) | 0 - 50 °C |
| Compliance industry standards | IEEE 802.11 b/g, IEEE 802.3, IEEE 802.3u |
| Supported data transfer rates | IEEE 802.11b: CCK: 11, 5.5Mbps, DQPSK: 2Mbps, DBPSK: 1 Mbps; IEEE 802.11g: OFDM: 54, 48, 36, 24, 18, 12, 9 & 6Mbps |
| Operating relative humidity (H-H) | 20 - 95% |
| Non-operating relative humidity (non-condensing) | 20 - 95% |
| Warranty | 3-Year Warranty |
| Weight | 420 g |
Product Description
Enabling Wi-Fi Convergence for Enterprise Application - High performance 802.11 b/g Radio - Wi-Fi Multimedia (WMM) + Auto Traffic Classifier (ATC) - Wi-Fi WPA2-Certified - Multiple SSID with Predefined VoIP, Guest SSID - Powerful and Secure Management Suburb Coverage High Density and Large-Scale Deployments ZyXEL NWA-3163 Business Wireless Access Point is a WLAN solution featuring 2.4GHz dual-band, 802.11b/g dual-mode and PoE (Power-over-Ethernet) capabilities designed for small to medium enterprises. It is built with LSOH (Low Smoke Zero Halogen) material and is compliant with UL2043, the so-called plenum rating, which supports installation in environmental airspaces such as areas above suspended ceilings. The NWA-3163 equipped with high performance 802.11b/g radio can provide suburb coverage in office area or hospitality environment. Enterprise Class Security ZyXEL delivers enterprise-class security features to small and medium businesses. To shield wireless communication at the source, WPA2 with TKIP/AES encryption provides the latest and toughest standard-based security while WEP encryption supports legacy wireless clients. Additionally, WPA2 ensures the compatibility with all Wi-Fi certified wireless clients. Virtual AP for Specific Applications The NWA-3160 supports up to 8 multiple SSIDs with 802.1Q VLAN tag. This function makes the NWA-3160 perform as multiple virtual APs. The NWA-3160 also provides pre-defined voice SSID and guest SSID for optimized voice prioritization, and offers top-level security for guest access without difficulties of complicated configuration efforts. Powerful Management with Scalability for Massive Deployment This access point supports a wide variety of administration features with powerful and secure control over the system. The NWA-3160 also provides a breakthrough benefit by using a centralized account on RADIUS server to control all the NWA-3160 access points; this simplifies management efforts and improves network security. Moreover, users can perform massive installation and configuration upgrades with the auto-configuration function. Simply put, the NWA-3160 is the best choice for small to medium enterprises.
Key Features
Zyxel NWA-3163 802.11b/g Wireless Business Access Point. 2.4 GHz, Maximum data transfer rate: 100 Mbit/s. Power over Ethernet (PoE)
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Zyxel NWA-3163 802.11b/g Wireless Business Access Point 100 Mbit/s Power over Ethernet (PoE) (91-005-206002B) is 100% genuine Zyxel hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Zyxel NWA-3163 802.11b/g Wireless Business Access Point 100 Mbit/s Power over Ethernet (PoE) includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Zyxel NWA-3163 802.11b/g Wireless Business Access Point 100 Mbit/s Power over Ethernet (PoE) compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 91-005-206002B.
