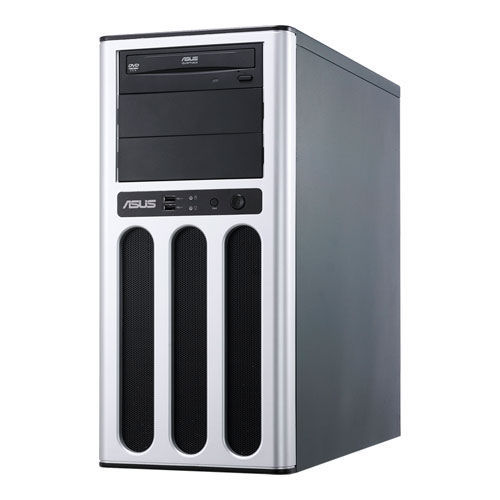

ASUS TS100-E7/PI4 LGA 1155 (Socket H2) Black, Silver
Brand: ASUS · SKU: 90S6JA0000C300UET · MPN: 90S6JA0000C300UET · Category: Components
ASUS TS100-E7/PI4, LGA 1155 (Socket H2), Intel, Intel® Celeron®, Intel® Pentium®, DDR3-SDRAM, 32 GB, 1066,1333,1600 MHz
Specifications
| Depth | 478.8 mm |
|---|---|
| Width | 436.8 mm |
| Height | 200 mm |
| Safety | CE, EN55022 |
| Weight | 15 kg |
| RAID levels | 1, 5, 10 |
| Ethernet LAN | Yes |
| Power supply | 300 W |
| LAN controller | Intel® 82574L |
| Product colour | Black, Silver |
| Processor family | Intel |
| Processor socket | LGA 1155 (Socket H2) |
| PS/2 ports quantity | 2 |
| Maximum UDIMM memory | 32 GB |
| Number of DIMM slots | 4 |
| PCI Express x1 slots | 2 |
| PCI Express x8 slots | 1 |
| PCI Express x16 slots | 1 |
| Serial ports quantity | 1 |
| Supported memory types | DDR3-SDRAM |
| USB 2.0 ports quantity | 4 |
| Ethernet interface type | Gigabit Ethernet |
| Storage temperature (T-T) | -40 - 70 °C |
| Ethernet LAN (RJ-45) ports | 2 |
| Warranty | 3-Year Warranty |
| Weight | 15 kg |
| Dimensions | 436.8 mm x 478.8 mm x 200 mm |
Product Description
Super-quiet and energy saving UP server with dual Intel® LAN for SMB applications The TS100-E7/PI4 is a single-socket pedestal server system based on quad/dual-core Intel® E3-1200/CoreTM i3-2100 series processors and the Intel® C202PCH chipset with support for up to 32GB of DDR3 1333Hz unbuffered ECC memory. Upscaled performance increases processing speeds, while the super-quiet design makes the TS100-E7/PI4 ideal for professional environments where noise reduction is important. Super-quiet UP server with dual Intel® LAN for SMB applications The latest Intel® CPUs The TS100-E7/PI4 is ready for new-generation Intel® Xeon® 32nm quad/dual-core UP processors, which deliver a significant performance improvement (up to 25%) over previous generation CPUs. Also, with Intel® Turbo Boost Technology 2.0, the TS100-E7/PI4 provides more efficient, dynamic, and intelligent performance enhancement on demand. Ultra-quiet and energy-saving Strict acoustic testing has shown that the TS100-E7/PI4 performs excellently in noise control at less than 25.6dBA when idle – even lower than the noise output of a projector (42dB). It facilitates quiet working environments, and ships with an 80+ power supply to reduce power loss and power consumption, helping consumers save on energy bills. Dual Intel® server-class Gigabit LAN The TS100-E7/PI4 offers more reliable networking and wide- range virtualization, including VMWare®, Hyper-V and Xen. IPv6 readiness effortlessly resolves potential IPv4 address shortage problems even before they occur. Optional ASUS TPM module With the ASUS TPM module supporting TXT technology, the TS100-E7/PI4 avoid s Trojan and malware incursions, while Hypervisor loads on start-up to provide hardware-level security against software attacks, protecting data from memory snooping. Effortless install Auto-setup in a few simple steps and the intuitive support CD mean users don’t need to go through a lengthy process as the install is pre-configured, and all device drivers arrive fully installed with the latest versions, saving IT staff time and effort.
Key Features
ASUS TS100-E7/PI4. Processor socket: LGA 1155 (Socket H2), Processor family: Intel, Compatible processor series: Intel® Celeron®, Intel® Pentium®. Supported memory types: DDR3-SDRAM, Maximum UDIMM memory: 32 GB, Supported UDIMM clock speeds: 1066,1333,1600 MHz. Storage drive sizes supported: 3.5", Supported storage drive interfaces: Serial ATA II, RAID levels: 1, 5, 10. Ethernet interface type: Gigabit Ethernet, Copper ethernet cabling technology: 1000BASE-T, LAN controller: Intel® 82574L. Compatible operating systems: Windows Server 2008 R2 Windows Server 2008 Enterprise 32/64-bit Windows Server 2003 R2...
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS TS100-E7/PI4 LGA 1155 (Socket H2) Black, Silver (90S6JA0000C300UET) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS TS100-E7/PI4 LGA 1155 (Socket H2) Black, Silver includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS TS100-E7/PI4 LGA 1155 (Socket H2) Black, Silver compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 90S6JA0000C300UET.
