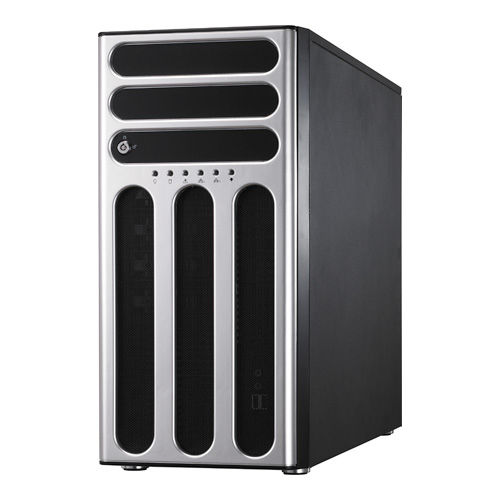

ASUS TS300-E6/PS4 Intel® 3420 LGA 1156 (Socket H)
Brand: ASUS · SKU: 90S-S5J001CEZ · MPN: 90S-S5J001CEZ · Category: Components
ASUS TS300-E6/PS4, Intel® 3420, LGA 1156 (Socket H), Intel, 0, 1, 8 MB, Intel® 82574L
Specifications
| ECC | Yes |
|---|---|
| Depth | 545 mm |
| Width | 217.5 mm |
| Height | 445 mm |
| Safety | CE, EN55022 |
| Weight | 20 kg |
| PCI slots | 3 |
| Drive bays | 1 x 5.25" |
| RAID levels | 0, 1 |
| Power supply | 390 W |
| LAN controller | Intel® 82574L |
| Bundled software | ASWM2.0 |
| Processor family | Intel |
| Processor socket | LGA 1156 (Socket H) |
| Motherboard chipset | Intel® 3420 |
| PS/2 ports quantity | 2 |
| Number of DIMM slots | 6 |
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 2 |
| Serial ports quantity | 1 |
| USB 2.0 ports quantity | 4 |
| Electromagnetic emissions | CE, EN55022 & EN55024 |
| Storage temperature (T-T) | -40 - 70 °C |
| Ethernet LAN (RJ-45) ports | 3 |
| Warranty | 3-Year Warranty |
| Weight | 20 kg |
| Dimensions | 217.5 mm x 545 mm x 445 mm |
Product Description
Flagship UP Pedestal Server with High Flexibility Support Up-to-date Intel CPU The TS300-E6/PS4 is ready for 45nm Quad Core UP CPU & next-gen 32 nm Dual Core UP CPU to allow effortless migration to Intel’s new platform and therefore prolong your investment. Wide Memory Support TS300-E6/PS4 supports 6 DDR3 1333 Reg. DIMM or 4 DDR3 1333 Unbuffered ECC memory up to 32GB (RDIMM)/16GB (UDIMM), offering wide range of memory support and data-intensive computing capabilities. Flex-E Technology for Great PCI-E Flexibility The ASUS Flex-E Technology provides the flexibility to auto-switch between 1 PCI-E x16 link (Graphic card supported) and 2 PCI-E x8 link (for I/O expansion), allowing the customers to use PCI-E link flexibly, which allows these products to work as workstation or servers. Additionally the optional MIO audio card will offer great sound quality to complement the robust video power—offering enhanced signal-to-noise ratio in a 7.1 surround channel setup to deliver exhilarating surround sound for professional and entertainment usage. Server & Workstation Dual Use TS300-E6/PS4 can be used as pedestal or 5U rack-mountable, since it has passed the FCC Class B test and is suitable for personal use or office environment application; with optional rack mount kit, it can be mounted in the rack and save space. ASUS PIKE Upgrade Kit for SAS Storage In order to upgrade from SATA storage to SAS directly, ASUS recommends customers to use its optional PIKE Upgrade Kit, which is compatible with its new products. With PIKE, slim-sized and flexible storage options for customers can be achieved when upgrading directly to SAS RAID with multiple I/O solutions, without sacrificing expansion capabilities. Now maximize your I/O performance and data protection in second! Considerate Tool-less Design To minimize the trouble in maintenance, the TS300-E6/PS4 comes in with tool-less design in several components, including back fan module, optical device, PCI and HDD cage, saving time and effort for MIS. Optional ASMB4-iKVM Upgrade Kit for Easy Management The optional ASMB4-iKVM upgrade kit provides remote real-time full control access to the system based on BIOS-level by keyboard, video monitor and mouse (KVM over Ethernet) from any local computer anywhere, anytime. 80+ PSU for Energy Saving With current trends leaning towards power efficiency, the TS300-E6/PS4 is equipped with 80+ PSU to reduce the power loss and power consumption, and save power bill for users. RoHS & Energy Star Compliance The TS300-E6/PS4 is compliant to Energy Star specification and the European Union´s Restriction on the use of Hazardous Substances (RoHS) together with its packaging. This is in line with the ASUS vision of creating green, environment-friendly and recyclable products and packaging to safeguard consumers´ health while minimizing the impact on the environment. Designed for Virtualization Virtualization provides central management, reduces power consumption and cost for cooling and space requirements. With onboard vertical USB connector designed for VMWare ESXi, it’s easy for customers to apply virtualization in the server.
Key Features
ASUS TS300-E6/PS4. Motherboard chipset: Intel® 3420, Processor socket: LGA 1156 (Socket H), Processor family: Intel. RAID levels: 0, 1. Maximum graphics card memory: 8 MB. LAN controller: Intel® 82574L. Compatible operating systems: Windows Server 2008 Enterprise 32/64-bit, Windows Server 2003 R2 Enterprise (32/64 bit), RedHat...
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS TS300-E6/PS4 Intel® 3420 LGA 1156 (Socket H) (90S-S5J001CEZ) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS TS300-E6/PS4 Intel® 3420 LGA 1156 (Socket H) includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS TS300-E6/PS4 Intel® 3420 LGA 1156 (Socket H) compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 90S-S5J001CEZ.
