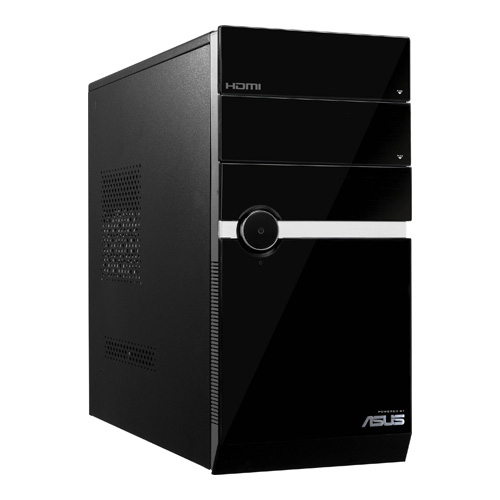

ASUS V7-P7H55E Black LGA 1156 (Socket H)
Brand: ASUS · SKU: 90PB9XAA310000AGCE · MPN: 90PB9XAA310000AGCE · Category: Components
ASUS V7-P7H55E, LGA 1156 (Socket H), 380 W. ASUS V7-P7H55E Black LGA 1156 (Socket H) (part number 90PB9XAA310000AGCE) is an enterprise components product available from Server Tech Central. Key specifications include dvi port Yes, audio system Realtek ALC887, chassis type No, power supply 380 W, microphone in Yes, product colour Black, expansion slots 2 x PCI, s/pdif out port Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| DVI port | Yes |
|---|---|
| Audio system | Realtek ALC887 |
| Chassis type | No |
| Power supply | 380 W |
| Microphone in | Yes |
| Product colour | Black |
| Expansion slots | 2 x PCI |
| S/PDIF out port | Yes |
| Processor family | Intel |
| Processor socket | LGA 1156 (Socket H) |
| Headphone outputs | 1 |
| Dimensions (WxDxH) | 168 x 380 x 354 mm |
| HDMI ports quantity | 1 |
| Networking features | Gigabit Ethernet |
| PS/2 ports quantity | 1 |
| PCI Express x1 slots | 1 |
| Audio output channels | 7.1 channels |
| PCI Express x16 slots | 1 |
| USB 2.0 ports quantity | 8 |
| Maximum internal memory | 16 GB |
| Ethernet LAN (RJ-45) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Compatible operating systems | Windows 7, Windows Vista, Windows XP |
| Maximum graphics card memory | 1748 MB |
| Warranty | 3-Year Warranty |
Product Description
High Performance and high multimedia environment for our life Intel H55 The Intel® H55 Express Chipset is the latest one-chipset design to support latest 1156 socket Intel® Core™ i7/ Core™ i5/Core™ i3/ Pentium® Processors. Intel® H55 chipset improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Dual-Channel DDR3 1333 / 1066 support The motherboard supports DDR3 memory that features data transfer rates of 1333 / 1066 MHz to meet the higher bandwidth requirements of the latest 3D graphics, multimedia, and Internet applications. The dual-channel DDR3 architecture enlarges the bandwidth of your system memory to boost system performance. Double Speed; Double Bandwidth This motherboard supports the latest PCIe 2.0 devices for double speed and bandwidth which enhances system performance. Excellent connectivity with other peripherals V7-P7H55E is designed with multiple display ports, HDMI, DVI, and D-sub, to provide rich connecting capability. Also it supports optical S/PDIF-out jack to connect external home theater audio systems. S/PDIF-out on Back I/O Port V7-P7H55E provides convenient connectivity to external home theater audio systems via optical S/PDIF-out (SONY-PHILIPS Digital Interface) jacks. It allows transferring digital audio without converting to analog format and keeps the best signal quality. ASUS Express Gate - 0 to Internet in Seconds! Express Gate™ is an ASUS exclusive OS that provides you with quick access to the Internet and key applications before entering Windows®. ASUS DriveClone Pro 7 (Continuously protect and back up your valuable data) ASUS DriveClone Pro 7 can back-up users' data just in few seconds and recover it in few minutes. DriveClone Pro 7 is an always available recovery tool. It stores user data, applications and the operating system in the host-protected area of the hard drive. Users can easily recover system to any state without restore CDs. No need to worry about losing data due to virus attacks. ASUS EPU - System Level Energy Saving The new ASUS EPU - the world's first power saving engine, has been upgraded to a new six engine version, which provides total system power savings by detecting current PC loadings and intelligently moderating power in real-time. With auto phase switching for components (which includes the CPU, VGA card / integrated GPU, memory, chipset, hard drives and CPU cooler / system fans), the EPU automatically provides the most appropriate power usage via intelligent acceleration and overclocking - helping save power and money.
Key Features
ASUS V7-P7H55E. Processor socket: LGA 1156 (Socket H). Maximum internal memory: 16 GB. Ethernet LAN (RJ-45) ports: 1. Power supply: 380 W
