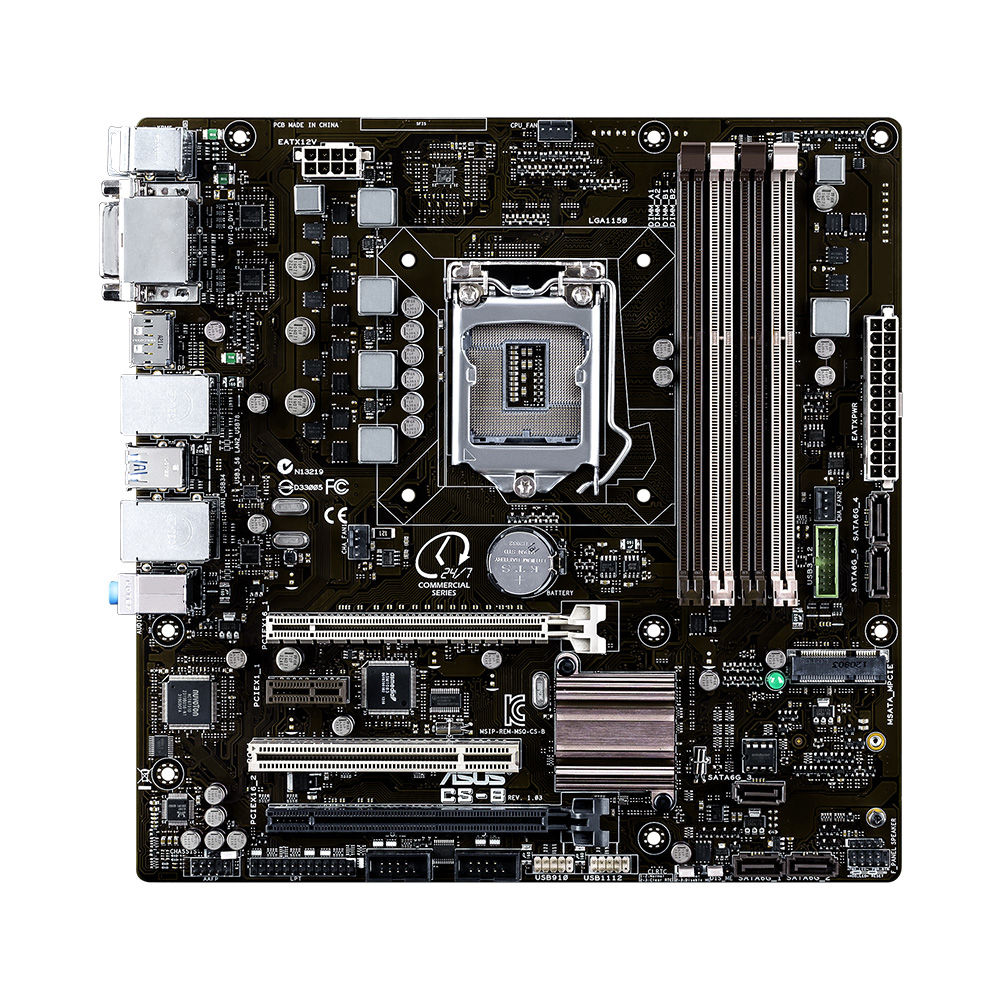

ASUS CS-B Intel® Q87 LGA 1150 (Socket H3) micro ATX
Brand: ASUS · SKU: 90MB0G20-M0EAY0 · MPN: 90MB0G20-M0EAY0 · Category: Components
ASUS CS-B, Intel, LGA 1150 (Socket H3), Intel® Celeron®, Intel® Pentium®, i3-4xxx, i5-4xxx, i7-4xxx, DDR3-SDRAM, 32 GB. ASUS CS-B Intel® Q87 LGA 1150 (Socket H3) micro ATX (part number 90MB0G20-M0EAY0) is an enterprise components product available from Server Tech Central. Key specifications include depth 244 mm, width 244 mm, bios type UEFI AMI, pci slots 1, audio chip Realtek ALC887-VD, raid levels 0, 1, 5, 10, acpi version 2.0a, cooling type Passive. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 244 mm |
|---|---|
| Width | 244 mm |
| BIOS type | UEFI AMI |
| PCI slots | 1 |
| Audio chip | Realtek ALC887-VD |
| RAID levels | 0, 1, 5, 10 |
| ACPI version | 2.0a |
| Cooling type | Passive |
| Ethernet LAN | Yes |
| Component for | PC |
| Dual Link DVI | Yes |
| Microphone in | Yes |
| LAN controller | Realtek RTL8111G |
| Cables included | SATA |
| Memory channels | Dual-channel |
| BIOS memory size | 16 Mbit |
| Drivers included | Yes |
| Processor socket | LGA 1150 (Socket H3) |
| CPU fan connector | Yes |
| Clear CMOS jumper | Yes |
| Headphone outputs | 1 |
| Memory slots type | DIMM |
| Power source type | ATX |
| Wake-on-LAN ready | Yes |
| Warranty | 3-Year Warranty |
| Dimensions | 244 mm x 244 mm |
Product Description
True commercial-business motherboards for 24-7, nonstop reliability The ASUS Commercial Series is a brand new motherboard series, which is specially designed for nonstop, 24-7 working environments such as mission-critical business use, digital kiosks, ATMs, and industrial machines with little to no available maintenance. With military-grade components, the strict test standards, durability-enhancing features and ASUS’ extensive experience in motherboard design, the Commercial Series is guaranteed to run stable for the life-span of the device under 24-7 working conditions. 24-7 Burn-in Test Strictest, most extensive standards ensure reliability 24-7 Burn-in Test: ASUS tests are hotter, more humid and 3 times longer than the rest of the industry. Our designs go through 7 days of burn-in tests in the most extreme environment of 55°C and 90% humidity. Layout Design Maximized microATX layout for better thermal performance The CS-B adopts a maximized microATX layout, which optimizes the space between components for better thermal performance relative to competitors, and a minimized possibility of electrostatic interference. Together this provides a longer life-span of the system and components. Enhanced with TUF Components The Commercial Series motherboards are enhanced with TUF Components, which are certified for military-grade durability. These premium components are screened through rigorous testing to ensure a superior life-span and reliability under the most demanding conditions, thus making Commercial Series ideal for nonstop 24-7 usage. New UEFI BIOS – friendlier and more Intuitive Exclusive EZ Mode adds useful info to become even easier Media-renowned UEFI BIOS from ASUS provides the smoothest mouse-controlled graphical BIOS, and now features more intuitive functions to quickly take you to favorite BIOS pages and frequently-accessed settings through custom shortcuts. You can even write quick notes in-BIOS for future reference, view an activity log of setting changes and modifications, and rename SATA ports. EZ Mode has a whole new look, upgraded with extra-friendly capabilities like detailed fan controls, XMP profile settings, SATA information, and fast clock adjustment. Together, these perfect your BIOS experience. Fan Xpert 2 Comprehensive controls for the perfect cool and quiet balance Seeing an opportunity for more fine-tuned control, hardware-level ASUS Fan Xpert 2 featuring Fan Auto Tuning, providing an tailored fan speed setting for each fan with the exclusive, automatic fan speed detection to achieve the best balance of cooling performance and low noise. It even provides a "RPM Fixed Mode" for users who wish to reduce noise levels to near 0dB with a specific fan speed control. ASUS Boot Setting Multiple startup options Thanks to ASUS Windows 8 hardware optimization, ASUS Boot Setting provides better flexibility in customizing your PC’s startup process. You can shorten system boot-up time to 2-seconds* for a smoother user experience under Windows 8, and even previous versions of Windows. Also, you can enter the BIOS directly with one click through a user-friendly interface, and quickly select your preferred system boot up method: either get to the OS in seconds or opt for regular boot up. Whatever your choice, settings are saved and persistent, with no need to choose every time you power on.
Key Features
ASUS CS-B. Processor manufacturer: Intel, Processor socket: LGA 1150 (Socket H3), Compatible processor series: Intel® Celeron®, Intel® Pentium®. Supported memory types: DDR3-SDRAM, Maximum internal memory: 32 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA III, RAID levels: 0, 1, 5, 10. Graphics card family: Intel, Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111G
