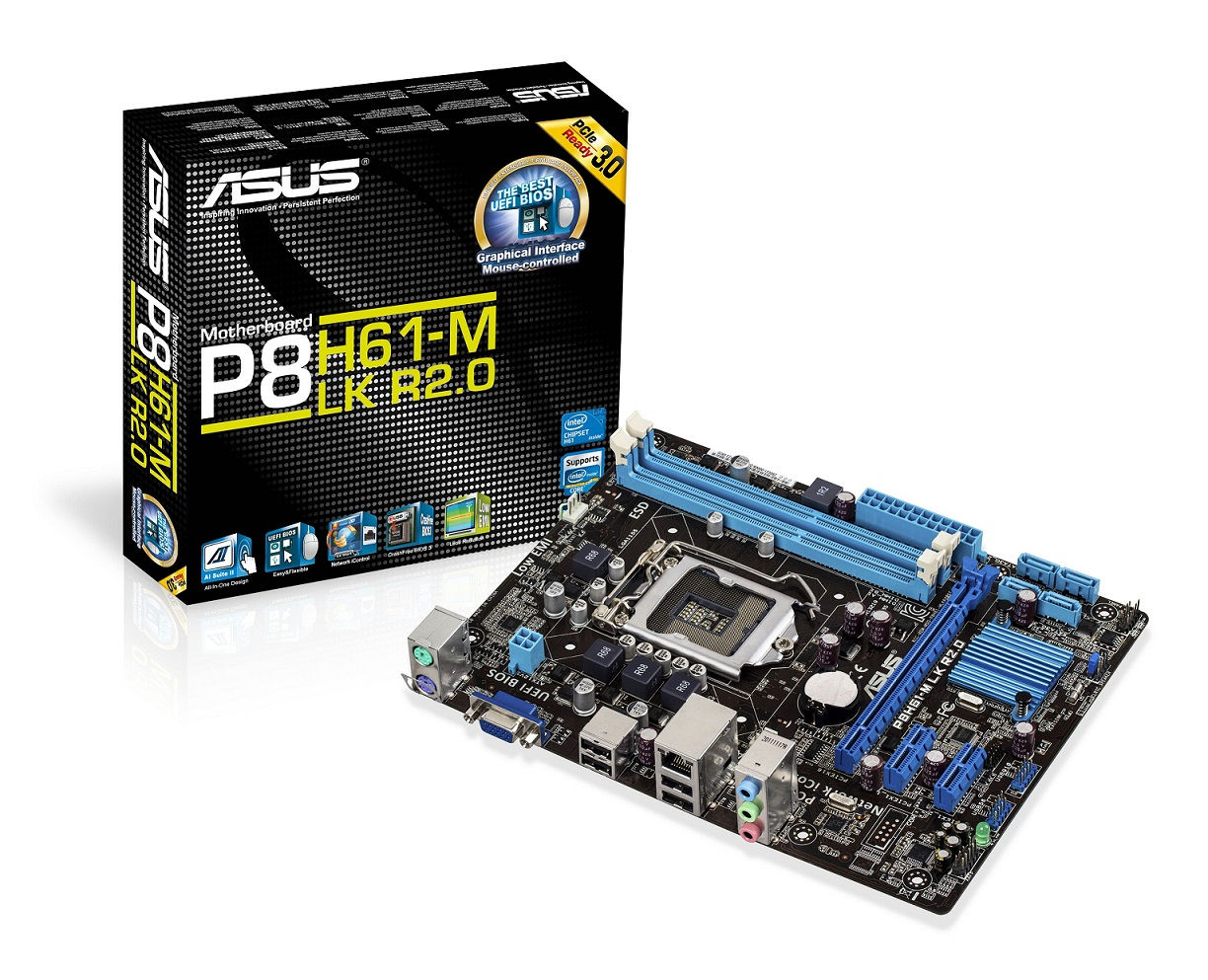

ASUS P8H61-M LK R2.0 Intel® H61 LGA 1155 (Socket H2) micro ATX

Specifications

Product Description

Intel LGA155 Intel 3rd/2nd Generation Core i7/i5/i3, Pentium and Celeron processors This motherboard supports the Intel 3rd/2nd Generation Core i7/i5/i3, Pentium and Celeron processors in the LGA155 package, with iGPU, memory, and PCI Express controllers integrated to support onboard graphics out with dedicated chipsets, 2-channel (2 DIMM) DDR3 memory, and 16 PCI Express 3.0/2.0 lanes. This provides great graphics performance. Intel 3rd/2nd Generation Core i7/i5/i3, Pentium and Celeron processors are among the most powerful and energy efficient CPUs in the world. Intel H61 Express Chipset Intel H61 Express Chipset is a single-shipst that supports the 1155 socket Intel 3rd/2nd generation Core i7/i5/i3, Pentium and Celeron processors. It utilizes the serial point-to-point links, which increases bandwidth and enhances the sysmem's performance. Dual-Channel DDR3 1333/1066MHz support The motherboard supports DDR3 memory that features data transfer rates of 1333/1066MHz to boost the system's performance, and to meet the higher bandwidth requirements of the latest 3D graphics, multimedia, and Internet applications. PCI Express 3.0 PCI Express 3.0 is the PCI Express bus standard that provides twice the performance and speed of PCIe 2.0. It provides an optimal graphics performance, unprecedented data speed, and seamless transition with its complete backeard compatibility to PCIe 1.0/2.0. 8-channel hight definition audio The onboard 8-channel hight definition audio CODEC enables high-quality 192kHz/24-bit audio output and jack-detect feature that automatically detects and identifies what types of peripherals are plugged into the audio I/O jacks and notifies users of inappropriate connection, which means there will be no more confusion of Line-in, Line-out, and Mic jacks. Gigabit LAN The onboard LAN controller is a highly intergrated Gb LAN controller. It is enhanced with an ACPI managemant function to provide efficient power management for advenced operating system. 100% All High-quality Conductive Polymer Capacitors This motherboard uses all high-quality conductive polymer capacitors for durability, improved lifespan, and enhanced thermal capacity. Network iControl Network iControl is an intuitive one-step network control center that makes it easier for you to manage your bandwidth and allows you to set, monitor, and schedule the bandwidth priorities for you network programs. It allows you to automatically connect to a PPPoE network for a more convenient online experience.

Key Features

ASUS P8H61-M LK R2.0. Processor manufacturer: Intel, Processor socket: LGA 1155 (Socket H2), Compatible processor series: Intel® Celeron®, Intel® Pentium®. Supported memory types: DDR3-SDRAM, Maximum internal memory: 16 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA II. Maximum graphics card memory: 1024 MB, Maximum resolution: 2048 x 1536 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111F, Networking features: Gigabit Ethernet
