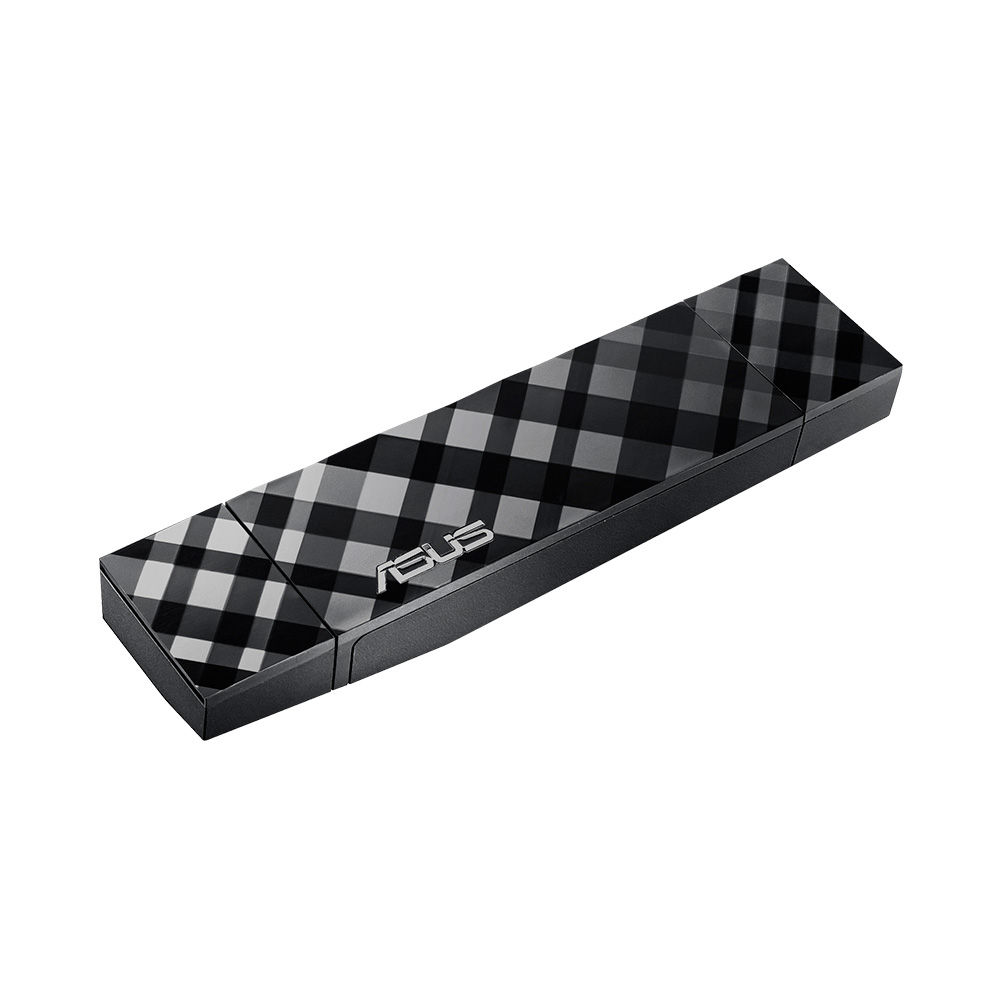

ASUS USB-AC56 WLAN 1167 Mbit/s
Brand: ASUS · SKU: 90IG00A0-BM0N00 · MPN: 90IG00A0-BM0N00 · Category: Components
ASUS USB-AC56, Wireless, USB, WLAN, Wi-Fi 5 (802.11ac), 1167 Mbit/s, Black. ASUS USB-AC56 WLAN 1167 Mbit/s (part number 90IG00A0-BM0N00) is an enterprise components product available from Server Tech Central. Key specifications include gain 2 dBi, depth 28 mm, wi-fi Yes, width 115 mm, height 19 mm, weight 50 g, antenna Yes, internal No. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Gain | 2 dBi |
|---|---|
| Depth | 28 mm |
| Wi-Fi | Yes |
| Width | 115 mm |
| Height | 19 mm |
| Weight | 50 g |
| Antenna | Yes |
| Internal | No |
| Interface | WLAN |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| USB powered | Yes |
| Host interface | USB |
| Product colour | Black |
| Frequency range | 2.4 - 5 GHz |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Quantity per pack | 1 pc(s) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Security algorithms | 128-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK, WPS |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Detachable antenna(s) | Yes |
| Connectivity technology | Wireless |
| Maximum data transfer rate | 1167 Mbit/s |
| Harmonized System (HS) code | 85176990 |
| Mac operating systems supported | Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion |
| Warranty | 3-Year Warranty |
| Weight | 50 g |
| Dimensions | 115 mm x 28 mm x 19 mm |
Product Description
The ASUS USB-AC56 is a dual-band 802.11ac Wi-Fi adapter with a USB 3.0 connection that brings high-performance wireless networking support to desktop and notebook PCs. The USB-AC56 features a USB 3.0 connection with support for wireless data rates up to 300 Mbit/s at 2.4 GHz and 867 Mbit/s at 5 GHz with compatible routers. Suitable for use with both desktop and notebook PCs, the USB-AC56 features a dual internal antenna design for great wireless network coverage with minimal desktop clutter and a removable high-gain external antenna that boosts reception still further in weak Wi-Fi signal areas. Next gen 802.11ac wireless, up to 3X faster than 2x2 wireless N adapters The fastest Wi-Fi ever becomes more accessible via USB, going up to 867 Mbps on the clear 5 GHz band. Using 802.11ac wireless, faster connectivity and enjoyment come to all your devices. Compared with current 802.11n, the USB-AC56 delivers up to 867 Mbps at 5 GHz, which is 3X faster than 802.11n! Maximum flexibility for maximum wireless coverage The USB-AC56 wireless-AC1200 USB adapter can cover larger homes and offices, including multi-floor locations. Its detachable high-gain external antenna and strong dual internal antennas provide ample transmission power for bigger areas. The detachable antenna can be removed to reduce power draw and emissions should medium-range coverage be sufficient. It can also be upgraded with a more powerful antenna if needed. Intelligent signal management for stable wireless connections ASUS AiRadar intelligently strengthens wireless device connectivity using precise directional signal amplification for extended coverage, increased data throughput speed, and enhanced stability. Because connection strength varies based on your environment, the USB-AC56 Dual-Band Wireless-AC1200 USB wireless adapter uses two internal antennas and an external high gain antenna and high-powered beam packing to detect wireless router locations to shape transmissions so they’re optimized for the fastest, most stable connection strength. USB 3.0 for full 802.11ac performance USB 3.0 allows the USB-AC56 Dual-Band Wireless-AC1200 USB wireless adapter to pair with notebooks and desktops using a bandwidth up to ten times that of USB 2.0. It means the full advantage of 802.11ac networking is realized, as the adapter has enough throughput overhead to support much faster network speeds. The USB-AC56 also includes a desktop cradle with a three-foot cable for more flexible positioning in troublesome Wi-Fi reception areas.
Key Features
ASUS USB-AC56. Connectivity technology: Wireless, Host interface: USB, Interface: WLAN. Maximum data transfer rate: 1167 Mbit/s, Top Wi-Fi standard: Wi-Fi 5 (802.11ac), Wi-Fi band: Dual-band (2.4 GHz / 5 GHz). USB powered. Product colour: Black
