ASUS PCE-AC66 Internal WLAN 1300 Mbit/s
Brand: ASUS · SKU: 90IG0030-BM0G00 · MPN: 90IG0030-BM0G00 · Category: Components
ASUS PCE-AC66, Internal, Wired, PCI Express, WLAN, 1300 Mbit/s. ASUS PCE-AC66 Internal WLAN 1300 Mbit/s (part number 90IG0030-BM0G00) is an enterprise components product available from Server Tech Central. Key specifications include depth 68.9 mm, width 103.3 mm, height 21 mm, weight 125 g, antenna Yes, internal Yes, interface WLAN, modulation CCK, DBPSK, DQPSK, OFDM. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 68.9 mm |
|---|---|
| Width | 103.3 mm |
| Height | 21 mm |
| Weight | 125 g |
| Antenna | Yes |
| Internal | Yes |
| Interface | WLAN |
| Modulation | CCK, DBPSK, DQPSK, OFDM |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Certification | CE, FCC, C-Tick, IC, NCC |
| Host interface | PCI Express |
| Frequency range | 2.4 - 5 GHz |
| Security algorithms | 128-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK |
| Networking standards | IEEE 802.11ac |
| Antenna connector type | R-SMA |
| Connectivity technology | Wired |
| Maximum data transfer rate | 1300 Mbit/s |
| Warranty | 3-Year Warranty |
| Weight | 125 g |
| Dimensions | 103.3 mm x 68.9 mm x 21 mm |
Product Description

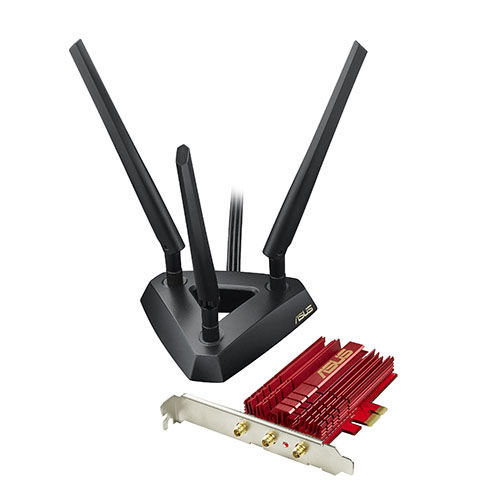

World's fastest 5G Wi-Fi The ASUS PCE-AC66 is a new 802.11ac Wi-Fi PCI Express adapter which upgrades your desktop from tangle-some Ethernet cables to carefree industry-leading 802.11ac at up to 1.3Gbps. Plus, the stylish external magnetized antenna base gives you more flexibility in adjusting antenna placement to get the best signal reception quality possible Fastest Wi-Fi standard: 802.11ac The PCE-AC66 uses Broadcom’s new 5th generation Wi-Fi 802.11ac chipset to reach speeds of up to 1.3Gbps through the 5GHz band, which is three times faster than 802.11n Wi-Fi. At the same time, it maintains full backward compatibility with all previous Wi-Fi protocols, providing high performance two-way transmission while ensuring a smooth transition to 802.11ac and seamless interconnection with existing devices. No more dead zones with 150% the coverage! Powerful two-way transmission and a signal-boosting high-gain design give the PCE-AC66 improved two-way transmission that extends Wi-Fi range and coverage by up to 150% compared to generic client devices. This extended reach means the elimination of dead spots at any location, offering fast and uninterrupted HD streaming and smooth multiplayer gaming wherever you may be. Instant Wi-Fi upgrade for desktops With its PCI Express interface, the PCE-AC66 plugs into any motherboard to give your desktop an instant 802.11ac Wi-Fi upgrade, with access to speeds of up to 1.3Gbps. As it connects directly to the motherboard, there are no messy cables to clutter your computing environment, and no dedicated power supply is required. Flexible extended antenna placement The three detachable antennas of the PCE-AC66 can be placed remotely via bundled extension cables. A magnetized stand also comes in the box, which can easily attach to various surfaces for more placement options. By making the antennas mobile, the design offers more flexibility in choosing locations for better signal reception and quality. Stylish Aluminum heasink handles heat for extra stability The added heatsink uses highly-conductive aluminum to remove heat from the chipset, ensuring greater reliability for non-stop operation. Lower temperatures translate into a more stable device in all climate conditions, even during hot summers, and greater stability means more consistent connectivity and longer product lifespan. Plus, the heatsink has been crafted for a stylish look, once more showing ASUS always goes beyond the spec.
Key Features
ASUS PCE-AC66. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: WLAN. Maximum data transfer rate: 1300 Mbit/s, Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS PCE-AC66 Internal WLAN 1300 Mbit/s (90IG0030-BM0G00) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS PCE-AC66 Internal WLAN 1300 Mbit/s includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS PCE-AC66 Internal WLAN 1300 Mbit/s compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 90IG0030-BM0G00.
