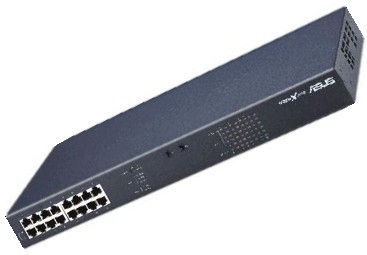

ASUS GigaX 1116
Brand: ASUS · SKU: 90-QS06AN1N003EA2 · MPN: 90-QS06AN1N003EA2 · Category: Components
Specifications
| Safety | UL1950, TUV |
|---|---|
| Weight | 2.3 kg |
| I/O ports | 16x Ethernet (Auto MDI/MDIX) ports 1x Power Adapter port |
| Full duplex | Yes |
| MAC address table | 4000 entries |
| Data transfer rate | 1000 Mbit/s |
| Dimensions (WxDxH) | 442 x 200 x 44 mm |
| Power requirements | 90-240V, 50/60 Hz |
| Switching capacity | 32 Gbit/s |
| Data link protocols | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Packet transfer speed | 23.8 Mpps |
| Electromagnetic emissions | FCC Part 15 Class A, CE, C-TICK, CB |
| Storage temperature (T-T) | -40 - 70 °C |
| Maximum data transfer rate | 1 Gbit/s |
| Operating temperature (T-T) | 0 - 40 °C |
| Power consumption (typical) | 50 W |
| Storage relative humidity (H-H) | 0 - 90% |
| Operating relative humidity (H-H) | 0 - 85% |
| Copper ethernet cabling technology | 1000Base-T, 100Base-TX, 10Base-T |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Warranty | 3-Year Warranty |
| Weight | 2.3 kg |
Product Description
Rising demand for faster network solution has vaulted Gigabit Ethernet technology to the mainstream computing market. However, upgrading your network to Gigabit speed could be tricky and costly and one of the common problems is cable plant quality. Virtual Cable Tester (VCT) is a revolutionary technology implemented in the ASUS GigaX1116 Switch Series to solve cable plant problems and lower cost on network deployment and maintenance. Features: 16 RJ-45 10/100/1000 Mbps Ethernet port connectionsAuto MDI/MDIX - Complies with IEEE 802.3 (10Base-T), IEEE 802.3u (100Base-TX), IEEE 802.3ab (1000Base-T) standards - Auto MDI/MDIX Auto negotiation of speed (10/100/1000Mbps), and duplex mode. Note that 1000Mbps supports only full duplex mode 4K MAC addresses with automatic address learning and aging IEEE 802.3x Flow Control support for 10/100/1000Mbps full duplex Up to 2Gbps in full-duplex mode Back pressure support for 10/100Mbps half duplex Virtual Cable Tester (VCT) The VCT feature significantly reduces networking and support costs by virtually diagnosing and reporting cable faults using the Time Domain Reflect (TDR) technology.
Key Features
ASUS GigaX 1116. Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 4000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
