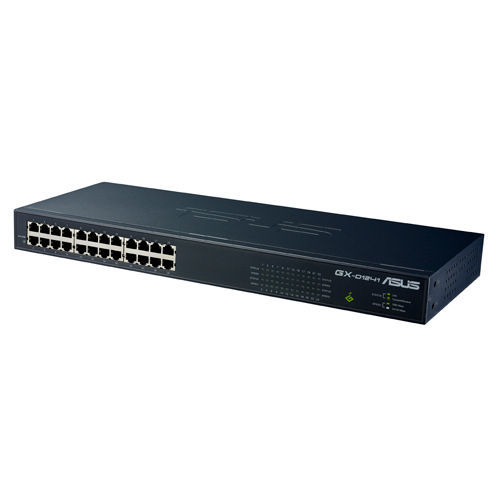

ASUS GX-D1241 Unmanaged L2 Gigabit Ethernet (10/100/1000) Black

Brand: ASUS · SKU: 90-QB642AN2N0N3UA0 · MPN: 90-QB642AN2N0N3UA0 · Category: Components

ASUS GX-D1241 Unmanaged L2 Gigabit Ethernet (10/100/1000) Black
Request for Quote
Backorder

ASUS GX-D1241, Unmanaged, L2, Gigabit Ethernet (10/100/1000), Full duplex, Rack mounting

View Components Products

Specifications

Depth180.2 mm
Width444 mm
Height43.9 mm
SafetyCE / FCC / CCC
Weight2.2 kg
Power LEDYes
StackableNo
10G supportNo
Full duplexYes
Switch typeUnmanaged
Switch layerL2
Rack mountingYes
LED indicatorsYes
Port mirroringNo
Product colourBlack
System event logYes
MAC address table8000 entries
Multicast supportNo
Store-and-forwardYes
Switching capacity48 Gbit/s
Flow control supportYes
Jumbo frames supportYes
Networking standardsIEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3x
Web-based managementNo
Warranty3-Year Warranty
Weight2.2 kg
Dimensions444 mm x 180.2 mm x 43.9 mm

Product Description

24-Port Rack-mountable Gigabit Switch Unmanaged Layer 2 Wired Switch Simple to use QoS for 4 Queues Gigabit Ethernet Jumbo Frame up to 9.6KB Green Network - power-saving up to 44% Features: 24 RJ-45 10/100/1000 Mbps Ethernet ports with Auto MDI/MDIX Complies with IEEE 802.3 (10Base-T), IEEE 802.3u (100Base-TX), IEEE 802.3ab (1000Base-T) standards Auto MDI/MDI-X function Auto negotiation of speed (10/100/1000Mbps), and duplex mode. *Note that 1000Mbps supports only full duplex mode Supports IEEE 802.3x flow control for Full Duplex mode Back pressure support for Half Duplex mode Up to 2Gbps in full-duplex mode Supports IEEE 802.1p QoS Prioritization: 4 Queues Supports Store & Forward architecture 4K MAC Address with automatic address learning and aging Supports 9.6KB Jumbo Frame Green Network Technology Link down mode & Cable length detection – power saving of up to 44%. Through Green Network feature, the GX-D1241 switches can detect when PCs is turned off and will respond accordingly by powering down into standby mode and power consumption can be significantly reduced. The switches send full power to cables regardless of the actual length. Through Asus Green Network Technology (GNT), the switches are able to detect the cable's length and adjust the power accordingly. By comparing the 20m cable lengths used, only need 18.9W power consumption. GX Series Unmanaged Switch SOHO/SMB Solution Architectures

Key Features

ASUS GX-D1241. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 8000 entries, Switching capacity: 48 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3x. Rack mounting

Frequently Asked Questions

Is this product genuine OEM?

Yes, this ASUS GX-D1241 Unmanaged L2 Gigabit Ethernet (10/100/1000) Black (90-QB642AN2N0N3UA0) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.

What warranty is included?

This ASUS GX-D1241 Unmanaged L2 Gigabit Ethernet (10/100/1000) Black includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.

How long does shipping take?

We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.

Can I return this product?

Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.

Is the ASUS GX-D1241 Unmanaged L2 Gigabit Ethernet (10/100/1000) Black compatible with my system?

Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 90-QB642AN2N0N3UA0.
