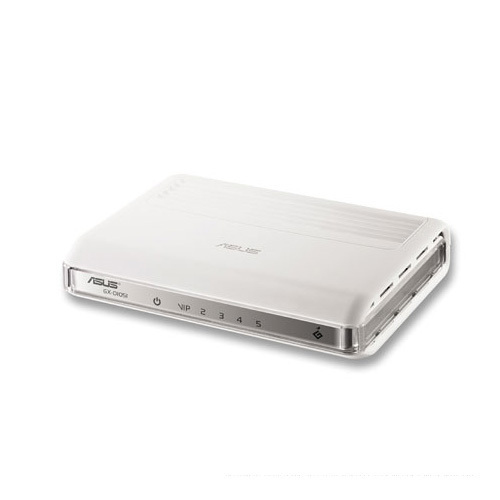

ASUS GX-D1051 Unmanaged White
Brand: ASUS · SKU: 90-QB603AN1N0N3MA0 · MPN: 90-QB603AN1N0N3MA0 · Category: Components
Specifications
| Weight | 206 g |
|---|---|
| Power LED | Yes |
| Stackable | No |
| 10G support | No |
| Full duplex | Yes |
| Switch type | Unmanaged |
| Certification | FCC, CE, LVD, VCCI, C |
| Input current | 1 A |
| Input voltage | 12 V |
| Auto MDI/MDI-X | Yes |
| Product colour | White |
| MAC address table | 1000 entries |
| Store-and-forward | Yes |
| Dimensions (WxDxH) | 98 x 158 x 30 mm |
| Switching capacity | 10 Gbit/s |
| Networking features | Gigabit Ethernet |
| Flow control support | Yes |
| Jumbo frames support | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Connectivity technology | Wired |
| Power over Ethernet (PoE) | No |
| Storage temperature (T-T) | 0 - 70 °C |
| Maximum data transfer rate | 1 Gbit/s |
| Operating temperature (T-T) | 0 - 40 °C |
| Warranty | 3-Year Warranty |
| Weight | 206 g |
Product Description
Asus GX-D1051 is a full-featured 5-port Gigabit Ethernet Switch that provides Ethernet direct connection to local area network or individual PC with build-in 5-port switch. GX-D1051 uses advanced single-chip solution with complete set of industry standard features for high-speed Internet access. GX-D1051 offers easy installation and cost-effective connection for corporate, SOHO and residential users. - 5*10/100/1000Base-T Gigabit Ethernet ports - LAN 1, VIP port :high performance priority port for data connections - IEEE 802.3x Flow Control for Full Duplex mode - Back Pressure for Half Duplex mode - Supports Full/Half Duplex in 10M and 100M mode - Supports Full Duplex in 1000M mode - Supports full wire speed reception and transmission - Supports Store-and-forward operation - Supports Asus Green Network feature, Link down detection and Cable length detection - Supports 1K MAC Addresses Table - Supports 832K bits Packet Buffer Memory - Supports up to 12KB Jumbo Frames - Supports Auto-detection for MDI/MD-X
Key Features
ASUS GX-D1051. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 1000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
