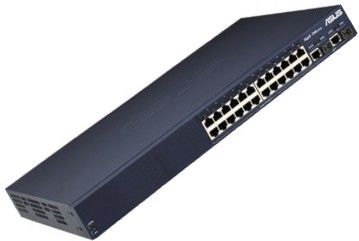

ASUS GigaX 2024
Brand: ASUS · SKU: 90-Q621AN2N0B3EA1 · MPN: 90-Q621AN2N0B3EA1 · Category: Components
Specifications
| Safety | UL1950, TUV |
|---|---|
| I/O ports | 24x 10/100Base-TX ports 2x 10/100/1000BASE-T ports 2x SFP slots(1000Base-SX/-LX) 1x USB port 1x RS-232 port 1x Power Adapter port |
| Full duplex | Yes |
| MAC address table | 8000 entries |
| Data transfer rate | 1000 Mbit/s |
| Power requirements | 90~240VAC, 50/60Hz |
| Switching capacity | 13.6 Gbit/s |
| Data link protocols | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Management platform | Web-based, CLI |
| Management protocols | SNMP, RMON, IGMP, Telnet, STP |
| Networking standards | IEEE 802.1p, IEEE 802.1q, IEEE 802.3, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Packet transfer speed | 10.1 Mpps |
| Electromagnetic emissions | FCC Part 15 Class A, CE Mark |
| Storage temperature (T-T) | -25 - 70 °C |
| Maximum data transfer rate | 1 Gbit/s |
| Operating temperature (T-T) | 0 - 40 °C |
| Power consumption (typical) | 90 W |
| Operating relative humidity (H-H) | 15 - 90% |
| Copper ethernet cabling technology | 100Base-TX, 10Base-T |
| Basic switching RJ-45 Ethernet ports quantity | 26 |
| Warranty | 3-Year Warranty |
Product Description
The ASUS GigaX Series is the next generation of high performance Gigabit Ethernet switch solution, offering all networking professionals are seeking for: increasing bandwidth, removing network bottlenecks, user-friendly Web GUI, unique USB/RS232 Console ports and SFP slots, and remarkable flexibility required with port counts from 5 to 24 ports, Ethernet/Fast Ethernet/Gigabit Ethernet performance, desktop/stackable or chasis-based. Features: Twenty four connectivity 10/100 Mbps auto MDI/MDIX ports. Two SFP slots providing 1000BASE-SX or 1000BASE-LX transceiver and two RJ-45 for 10/100/1000 BASE-T ports. Store-and-forward switching method. Non-blocking wire-speed on all ports with forwarding rate 10.1 Mpps. Support of address tables with 8K size entries. Spanning Tree Protocol for reliable network communication Rule-based QoS support by two priority levels. Support of up to 256-group port based VLAN. IGMP multicast filtering and snooping Flexible management via console, Web and SNMP/RMON Console port: In addition to the traditional RS232 interface, ASUS GigaX switches offer flexibility to users to access console port through USB port. This extra option enables users to set up the networking system more easily and comprehensively. Swappable Fans: Dimentions: 40 x 40 x 20 mm Voltage and Current: 0.13A Speed: 8200 RPM An unique swappable fan module allowing users to change fans when encountering thermal failure.
Key Features
ASUS GigaX 2024. Basic switching RJ-45 Ethernet ports quantity: 26. Full duplex. MAC address table: 8000 entries, Switching capacity: 13.6 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.1q, IEEE 802.3, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS GigaX 2024 (90-Q621AN2N0B3EA1) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS GigaX 2024 includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS GigaX 2024 compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 90-Q621AN2N0B3EA1.
