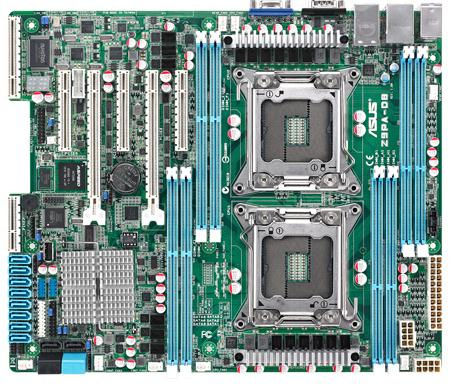

ASUS Z9PA-D8/iKVM Intel® C602 LGA 2011 (Socket R) ATX
Brand: ASUS · SKU: 90-MSVEJ1-G0UAY0YZ · MPN: 90-MSVEJ1-G0UAY0YZ · Category: Data Center
ASUS Z9PA-D8/iKVM, Intel, LGA 2011 (Socket R), E5-2600, 2, 4, 6, 8, 6.4,7.2,8 GT/s, 135 W. ASUS Z9PA-D8/iKVM Intel® C602 LGA 2011 (Socket R) ATX (part number 90-MSVEJ1-G0UAY0YZ) is an enterprise kvm switches product available from Server Tech Central. Key specifications include depth 254 mm, wi-fi No, width 304.8 mm, user guide Yes, raid levels 0, 1, 5, 10, ethernet lan Yes, certification CE, C-Tick, FCC, component for Server. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 254 mm |
|---|---|
| Wi-Fi | No |
| Width | 304.8 mm |
| User guide | Yes |
| RAID levels | 0, 1, 5, 10 |
| Ethernet LAN | Yes |
| Certification | CE, C-Tick, FCC |
| Component for | Server |
| Supported QPI | 6.4,7.2,8 GT/s |
| TPM connector | Yes |
| LAN controller | Intel® 82574L |
| Processor socket | LGA 2011 (Socket R) |
| Intel Xeon series | E5-2600 |
| Motherboard chipset | Intel® C602 |
| PS/2 ports quantity | 1 |
| Serial port headers | 1 |
| Number of DIMM slots | 8 |
| Serial ports quantity | 1 |
| Processor manufacturer | Intel |
| Supported memory types | DDR3-SDRAM |
| USB 2.0 ports quantity | 2 |
| Maximum internal memory | 256 GB |
| Motherboard form factor | ATX |
| Storage temperature (T-T) | -40 - 70 °C |
| Warranty | 3-Year Warranty |
| Dimensions | 304.8 mm x 254 mm |
Product Description
Most Powerful Dual LGA2011 Serverboard in 12”x10” Compact Size ASUS proudly to announce new server board Z9PA-D8 based on Intel® E5-2600 + C602 PCH platform. The board integrates versatile features into a compact 12”x10” size which allows this board to fit into ATX chassis. Through innovative and top-notch engineering design, this board is able to support dual Intel® Xeon® E5-2600 processors up to 135W CPU. With adequately developed thermal solution in 1U rack mount, the system may support up to 115W CPU. ATX case compatible The Z9PA-D8 server board support dual Intel® Xeon® server processors in a 12”x10” compact size with ATX foot print. User may easily acquire eco-system most mature and easy available ATX chassis other than proprietary special-made chassis further ensures end customers can benefit from up-to-date server technologies with affordable budget Wide-range Intel Xeon® processor E5-2600 support The Z9PA-D8 supports dual Intel® Xeon E5-2600 series CPUs with all-range including the support of advanced 135W CPU. System builders can choose between advanced, mainstream, and basic processors for all market segments. By supporting different processor and memory types, the Z9PA-D8 helps customer to build up a wide range of servers and workstation builds to meet different price segment customer demand. The Powerful PCI-E Expandability in 12”x10” Form Factor and MIO-892 audio card support The Z9PA-D8 is the only 12”x10” form factor board available in the market to dual PCI Express 3.0 x16 expansion slots. With the ASUS innovative Flex-E technology, the Z9PA-D8 server boards intelligently split or aggregate the link to support up to 4 true PCI Express 3.0 x8 slots or 2 x16 slots. With the exclusive unique feature, the Z9PA-D8 may serve as a powerful server board, or combines the 7.2 channel MIO-892 audio card becomes workstation. Easy to Upgrade Multiple Storage Solutions with ASUS PIKE The ASUS optional PIKE provides multiple storage options, direct SAS/SATA RAID upgrades can be achieved via a unique slot — without sacrificing expansion capability. The Z9PA-D8 boosts the build-in PIKE slot with PCI-E Gen3 which ensures best bandwidth link to process with low latency to support high performance storage devices over SAS/SATA 6Gb/s interface also ensure future SAS 12Gb/s PIKE card has high uplink to host bandwidth. User can easily upgrade storage solution from entry-level to high-end. For example, the entry PIKE 9230 RAID card could expand 4 extra SATA 6Gb/s ports for entry-level needs while the latest PIKE 2208 RAID card adopting LSI dual-core IO processor could support SAS 6Gb/s ports with outstanding performance for high I/O transaction demands of database and datacenter applications. USB 3.0 supported The Z9PA-D8 is the first Dual Intel® E5-2600 server board with USB 3.0 support. The new USB 3.0 IO technology provides 10 times bandwidth compare to industrial mature USB 2.0. Digital Power Solution All-new digital CPU power controls work perfectly together to match digital power signal (SVID) requests from the CPU, with ultra-fast sensing and response efficiently delivering precision power. Accurate delivery reduces waste, and provides more stable CPU Vcore voltages. The Z9PA-D8 voltage regulation manages up to 90% peak power efficiency, with 85%+ during most normal operation. This ensures high power efficiency for the entire system to help customers save more electrical bills. Comprehensive Server Management Solution: ASMB6-iKVM and ASWM Enterprise The ASMB6-iKVM upgrade kit enables dashboard system health monitoring, remote power on/off and control, virtual media over LAN, and management LAN fail-over support. In addition, the ASMB6 function is based on BIOS-level access, so even if the server operating system is down or offline, the KVM module can still provide round-the-clock remote monitoring and diagnosis through a user-friendly web-based graphical interface through all major browsers. ASWM Enterprise software provides one-to-multiple centralized management including BIOS flash, remote control, power control through a colorful, graphical, and informative interface.
Key Features
ASUS Z9PA-D8/iKVM. Processor manufacturer: Intel, Processor socket: LGA 2011 (Socket R), Intel Xeon series: E5-2600. Supported memory types: DDR3-SDRAM, Maximum internal memory: 256 GB, Supported memory clock speeds: 1066,1333,1600,1866 MHz. Supported storage drive interfaces: SATA II, SATA III, RAID levels: 0, 1, 5, 10. On-board graphics card model: Aspeed AST2300, On-board graphics card memory: 16 MB. LAN controller: Intel® 82574L
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS Z9PA-D8/iKVM Intel® C602 LGA 2011 (Socket R) ATX (90-MSVEJ1-G0UAY0YZ) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS Z9PA-D8/iKVM Intel® C602 LGA 2011 (Socket R) ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS Z9PA-D8/iKVM Intel® C602 LGA 2011 (Socket R) ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 90-MSVEJ1-G0UAY0YZ.
