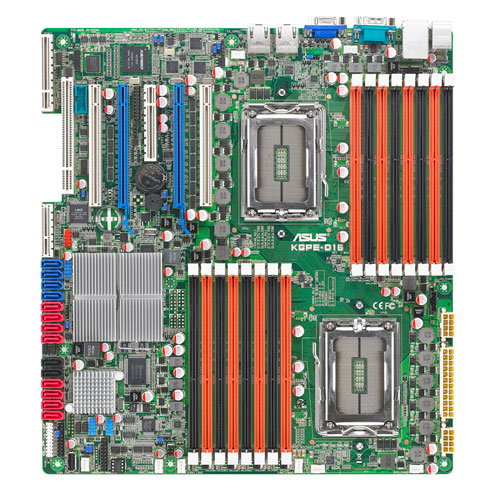

ASUS KGPE-D16 AMD SR5690 Socket G34 SSI EEB
Brand: ASUS · SKU: 90-MSVD01-G0UAY00T · MPN: 90-MSVD01-G0UAY00T · Category: Components
ASUS KGPE-D16, AMD, Socket G34, 6100, 6200, DDR3-SDRAM, 256 GB, 1066,1333,1600 MHz
Specifications
| Depth | 330.2 mm |
|---|---|
| Wi-Fi | No |
| Width | 304.8 mm |
| PCI slots | 1 |
| User guide | Yes |
| RAID levels | 0, 1, 5, 10 |
| Ethernet LAN | Yes |
| Certification | FCC, CFR47 15, B, CE, EN55022, EN55024, C |
| Component for | Server |
| Microphone in | No |
| TPM connector | Yes |
| LAN controller | Intel® 82574L |
| Cables included | SATA |
| Processor socket | Socket G34 |
| AMD Opteron series | 6100, 6200 |
| Parallel connector | No |
| USB 2.0 connectors | 4 |
| Motherboard chipset | AMD SR5690 |
| PS/2 ports quantity | 1 |
| Power fan connector | No |
| Serial port headers | 1 |
| Maximum RDIMM memory | 256 GB |
| Maximum UDIMM memory | 64 GB |
| Number of DIMM slots | 16 |
| Warranty | 3-Year Warranty |
| Dimensions | 304.8 mm x 330.2 mm |
Product Description
Support Up-To-Date AMD 16/12 Core CPU KGPE-D16 is based on latest AMD G34 chipset architecture to support 45nm Opteron™ 6200/6100 series processors. The platform is designed for highly threaded application, delivering 16/12/8 core multi-core performance, quad HT3 links with up to 6.4GT/S interconnect rate per link, and 12 MB shared L3 cache. Standard EEB with 16 DIMMs & Industrial Standard Riser Card Slot (Slot 6) KGPE-D16 is designed in EEB (12” x 13”) form factor, with 16 DDR3 1333 memory DIMMs to support up to 256GB (RDIMM). By supporting industrial standard PCI-E x16 (Gen2 x16 link) Full Height & Full Length Card in 1U, this board offers you highest memory capacity without source for proprietary chassis & riser solution. Dual Use for Server (rack ready) & Workstation The ASUS Flex-E technology provides the flexibility to auto-switch between 2 true PCI-E x16 Link (support 2 double deck graphic cards) or 1 PCI-E x16 Link & 2 PCI-E x8 Link (for I/O expansion). Moreover, the boards supports ASUS MIO audio card, which offers enhanced signal-to-noise ratio in a 7.1 surround channel setup to deliver exhilarating surround sound for professional usage. High Quality Components for Greater System Reliability & 85% Power Efficiency ASUS is the first company to phase in 6-Phase CPU power, 3-Phase memory power and All Ultra Long Life Solid capacitors on serverboard in the market. These features not only provide the support for high-end 140W CPU, but also deliver highly efficient and reliable operations. ASUS PIKE SAS2 6G Storage Supported KGPE-D16 supports ASUS PIKE (Proprietary I/O Kit Expansion) 2008/IMR for RIAD 0, 1, 10, and 5; and PIKE 2008 for RAID 0, 1, 10 and 1E. The design of ASUS PIKE brings 2 key advantages: Provide flexible SAS storage add-on card selection. Board edge design: locate PIKE expansion at the edge of the board for full height card support when PIKE is installed. Optional ASMB4-iKVM for Remote Management The optional ASMB4-iKVM provides remote real-time full control access to the system based on BIOS-level by keyboard, video monitor and mouse (KVM over Ethernet) from any local computer anywhere, anytime.
Key Features
ASUS KGPE-D16. Processor manufacturer: AMD, Processor socket: Socket G34, AMD Opteron series: 6100, 6200. Supported memory types: DDR3-SDRAM, Maximum internal memory: 256 GB, Supported memory clock speeds: 1066,1333,1600 MHz. Supported storage drive interfaces: SATA II, RAID levels: 0, 1, 5, 10. On-board graphics card model: Aspeed AST2050, On-board graphics card memory: 8 MB. Ethernet interface type: Gigabit Ethernet, LAN controller: Intel® 82574L
