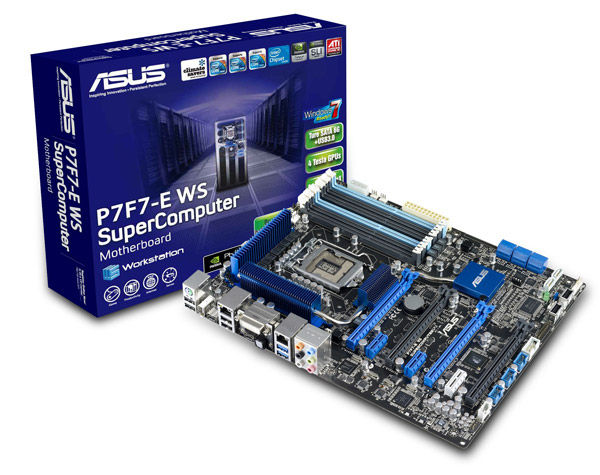

ASUS P7F7-E WS SuperComputer Intel® 3450 LGA 1156 (Socket H) ATX
Brand: ASUS · SKU: 90-MSVCW0-G0EAY00Z · MPN: 90-MSVCW0-G0EAY00Z · Category: Components
ASUS P7F7-E WS SuperComputer, Intel, LGA 1156 (Socket H), 16 GB, ECC, ATX, Intel® 3450. ASUS P7F7-E WS SuperComputer Intel® 3450 LGA 1156 (Socket H) ATX (part number 90-MSVCW0-G0EAY00Z) is an enterprise components product available from Server Tech Central. Key specifications include depth 245 mm, width 305 mm, audio chip VIA VT2020, acpi version 2.0, microphone in Yes, tpm connector Yes, cd/aux audio in Yes, s/pdif out port Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 245 mm |
|---|---|
| Width | 305 mm |
| Audio chip | VIA VT2020 |
| ACPI version | 2.0 |
| Microphone in | Yes |
| TPM connector | Yes |
| CD/AUX audio in | Yes |
| S/PDIF out port | Yes |
| BIOS memory size | 64 Mbit |
| Processor socket | LGA 1156 (Socket H) |
| CPU fan connector | Yes |
| Power source type | ATX |
| ECC сompatibility | ECC |
| USB 2.0 connectors | 6 |
| Motherboard chipset | Intel® 3450 |
| PS/2 ports quantity | 1 |
| Power fan connector | Yes |
| DVI-D ports quantity | 1 |
| S/PDIF out connector | Yes |
| Audio output channels | 7.1+2 channels |
| PCI Express x16 slots | 4 |
| Number of memory slots | 6 |
| Processor manufacturer | Intel |
| USB 2.0 ports quantity | 4 |
| Warranty | 3-Year Warranty |
| Dimensions | 305 mm x 245 mm |
Product Description
Ultra-fast Throughput with USB 3.0, SATA 6Gb/s and IEEE 1394b Interfaces The ASUS P7F7-E WS SuperComputer is the best choice for providing comprehensive I/O support. It includes USB 3.0 ports—the latest connectivity standard with 4.8Gb/s speeds—to support next-generation components and peripherals. USB 3.0 transfers data ten times faster and is backward compatible with USB 2.0 components. Additionally, the ASUS P7F7-E WS SuperComputer includes Serial ATA (SATA) 6Gb/s storage interfaces for 6.0Gbps data throughput, thus enhancing scalability, accelerating data retrieval, and doubling the bandwidth of current bus systems. To support FireWire-enabled digital video recorders and computers, the ASUS P7F7-E WS SuperComputer also includes two IEEE 1394b ports supporting up to 800Mb/s speeds—doubling the previous IEEE 1394a speeds. Massive Computing Power up to 4 Teraflops with CUDA Parallel Processing A powerful and efficient platform, the ASUS P7F7-E WS SuperComputer supports high-performance computing for life sciences research, engineering and financial modeling with its NVIDIA ® CUDA™ parallel computing architecture. By accommodating up to four NVIDIA® Tesla cards with built-in Clarkdale processors, the ASUS P7F7-E WS SuperComputer generates up to 4 Teraflops of processing power from a total of 960 CUDA parallel processing cores. Stunning Graphics with Multi-GPUs Powered by SLI or CrossFireX™ Technology The ASUS P7F7-E WS SuperComputer provides incredible graphics flexibility and enhanced scalability from a single motherboard by supporting either 3-way/2-way SLI or 4-way CrossFireX technology. Users can install up to three SLI-capable GeForce® graphics cards at x16, x8, and x8 connection speeds, or two graphics cards at true x16 connection speeds. Six Embedded Memory Slots for Flexible Memory Options Embedded with six memory slots, the ASUS P7F7-E WS SuperComputer can accommodate up to 16GB of DDR3 memory. The flexible options include installing four 4GB modules or two 4GB modules and two 2GB modules. As the price of a 2GB module is 15% less than a 4GB module, the ASUS P7F7-E WS SuperComputer gives users the flexibility to acquire the most RAM at the lowest cost. GPU Boost Delivers Free iGPU Upgrade GPU Boost overclocks the integrated GPU in real time for the best graphics performance. The user-friendly UI supports direct frequency and voltage adjustments. Its ability to deliver multiple overclocking profiles also provides rapid and stable system-level upgrades within the OS environment.
Key Features
ASUS P7F7-E WS SuperComputer. Processor manufacturer: Intel, Processor socket: LGA 1156 (Socket H). Maximum internal memory: 16 GB, ECC сompatibility: ECC. Motherboard form factor: ATX, Motherboard chipset: Intel® 3450, Audio output channels: 7.1+2 channels. BIOS memory size: 64 Mbit. Width: 305 mm, Depth: 245 mm
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS P7F7-E WS SuperComputer Intel® 3450 LGA 1156 (Socket H) ATX (90-MSVCW0-G0EAY00Z) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS P7F7-E WS SuperComputer Intel® 3450 LGA 1156 (Socket H) ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS P7F7-E WS SuperComputer Intel® 3450 LGA 1156 (Socket H) ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 90-MSVCW0-G0EAY00Z.
