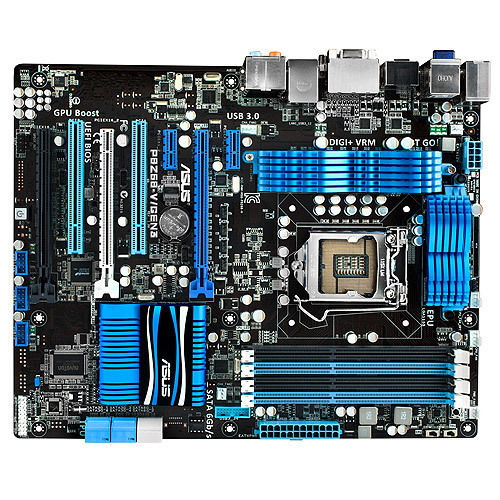

ASUS P8Z68-V/GEN3 Intel Z68 LGA 1155 (Socket H2) ATX
Brand: ASUS · SKU: 90-MIBGC5-G0EAY0VZ · MPN: 90-MIBGC5-G0EAY0VZ · Category: Components
ASUS P8Z68-V/GEN3, Intel, LGA 1155 (Socket H2), Intel® Celeron®, Intel® Pentium®, DDR3-SDRAM, 32 GB, Dual-channel. ASUS P8Z68-V/GEN3 Intel Z68 LGA 1155 (Socket H2) ATX (part number 90-MIBGC5-G0EAY0VZ) is an enterprise components product available from Server Tech Central. Key specifications include depth 244 mm, width 305 mm, bluetooth Yes, pci slots 2, audio chip Realtek ALC892, acpi version 2.0a, component for PC, microphone in Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 244 mm |
|---|---|
| Width | 305 mm |
| Bluetooth | Yes |
| PCI slots | 2 |
| Audio chip | Realtek ALC892 |
| ACPI version | 2.0a |
| Component for | PC |
| Microphone in | Yes |
| Cables included | SATA |
| Memory channels | Dual-channel |
| S/PDIF out port | Yes |
| BIOS memory size | 64 Mbit |
| Drivers included | Yes |
| Processor socket | LGA 1155 (Socket H2) |
| Bluetooth version | 2.1+EDR |
| CPU fan connector | Yes |
| Power source type | ATX |
| USB 2.0 connectors | 3 |
| HDMI ports quantity | 1 |
| Motherboard chipset | Intel Z68 |
| Networking features | Gigabit Ethernet |
| Power fan connector | Yes |
| DVI-D ports quantity | 1 |
| PCI Express x1 slots | 2 |
| Warranty | 3-Year Warranty |
| Dimensions | 305 mm x 244 mm |
Product Description
New ASUS USB 3.0 Boost technology supports UASP (USB Attached SCSI Protocol), the latest USB 3.0 standard. With USB 3.0 Boost technology, a USB device's transmission speed is significantly increased up to 170%, adding to an already impressive fast USB 3.0 transfer speed. ASUS software automatically accelerates data speeds for compatible USB 3.0 peripherals without the need for any user interaction. Exclusive to ASUS motherboards, its UEFI (Unified Extensible Firmware Interface) is the first ever mouse-controlled graphical BIOS interface designed with dual selectable modes. It delivers a user-friendly interface that goes beyond traditional keyboard-only BIOS controls to enable more flexible and convenient input with quick scrolling. Users can easily navigate the UEFI BIOS with the smoothness of their operating system. Quick and simple overclocking and setup sharing is facilitated by the F12 hotkey BIOS snapshot feature. The exclusive EZ Mode displays frequently-accessed setup info, while the Advanced Mode is for experienced performance enthusiasts that demand far more intricate system control, including detailed DRAM information. ASUS UEFI BIOS natively supports hard drives larger than 2.2TB in 64-bit, with full storage space utilization helping deliver far more exciting computing than traditional BIOS versions. LucidLogix® Virtu is designed for the Intel® Sandy Bridge platform's powerful integrated graphics. Its GPU virtualization dynamically assigns tasks to the best available graphics resources based on power, performance and system load on Windows® 7 based PCs. It allows users to fully utilize the unique capabilities of advanced Sandy Bridge multimedia features alongside the high end 3D rendering performance provided by installed graphics cards. When no discrete graphics are needed, the graphics card is put in idle mode to lower utilization, heat, fan speed and power draw down to near zero, making the system more environmentally-friendly. For users with diverse needs, LucidLogix® Virtu GPU virtualization provides great flexibility and efficiency.
Key Features
ASUS P8Z68-V/GEN3. Processor manufacturer: Intel, Processor socket: LGA 1155 (Socket H2), Compatible processor series: Intel® Celeron®, Intel® Pentium®. Supported memory types: DDR3-SDRAM, Maximum internal memory: 32 GB, Memory channels: Dual-channel. Supported storage drive interfaces: SATA II, SATA III. Parallel processing technology support: Quad-GPU CrossFireX, Quad-GPU SLI, Maximum graphics card memory: 1748 MB. Ethernet interface type: Fast Ethernet, Gigabit Ethernet, Bluetooth version: 2.1+EDR, Networking features: Gigabit Ethernet
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS P8Z68-V/GEN3 Intel Z68 LGA 1155 (Socket H2) ATX (90-MIBGC5-G0EAY0VZ) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS P8Z68-V/GEN3 Intel Z68 LGA 1155 (Socket H2) ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS P8Z68-V/GEN3 Intel Z68 LGA 1155 (Socket H2) ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 90-MIBGC5-G0EAY0VZ.
